300mm pedestrian bicycle 24v led traffic light
-
$119.00≥2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Min. Order:
- 2 Piece/Pieces
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
300mm pedestrian bicycle 24v led traffic light

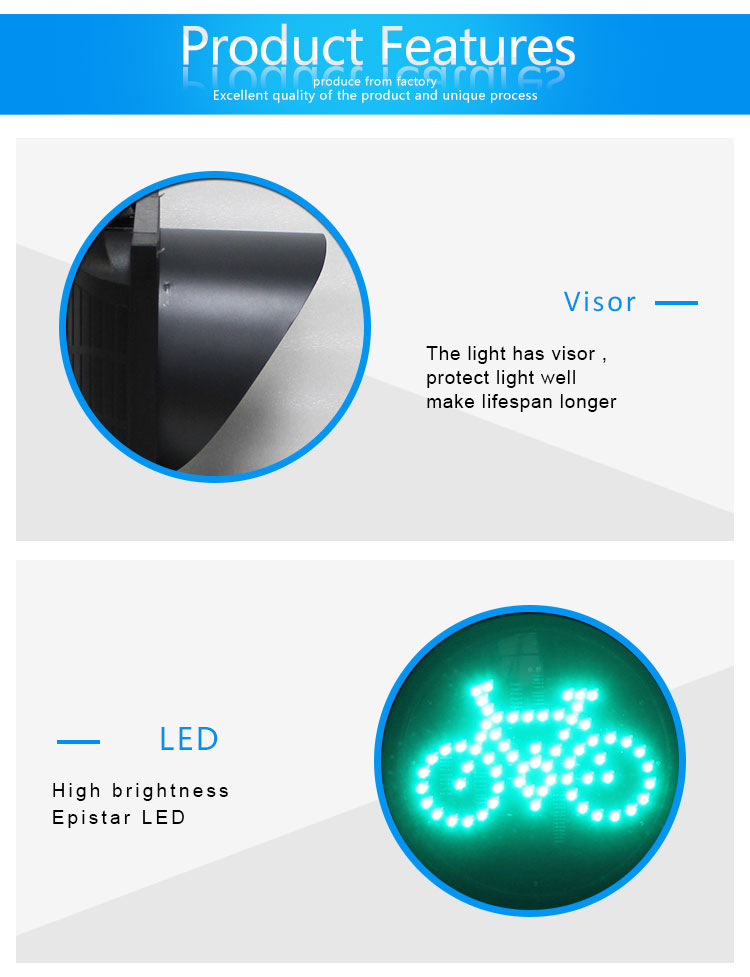

Features of the 300mm pedestrian bicycle 24v led traffic light:
1.300mm pedestrian bicycle 24v led traffic light adopt Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
2.300mm pedestrian bicycle 24v led traffic light are designed with outlet holes on the back, not only convenient outlet, but also has a good waterproof effect.
3.The sunshade cover of the two lights of the 300mm pedestrian bicycle 24v led traffic light is made of PC material, which has better waterproof and dustproof effects and simple installation.
4.Each of the two lights of the 300mm pedestrian bicycle and the lights are designed with a snap button, which facilitates the inspection and maintenance of the product.

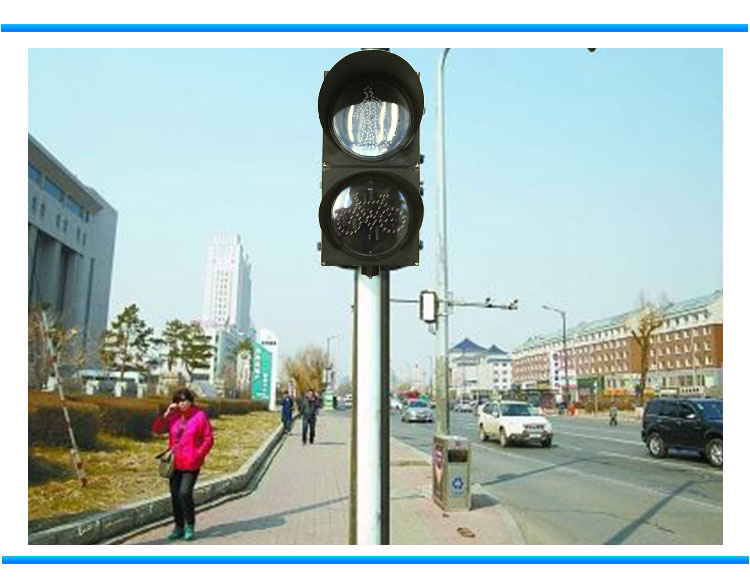

Product model: WDM-RX300-02-RG is mainly used in driving schools, intersections and other places.

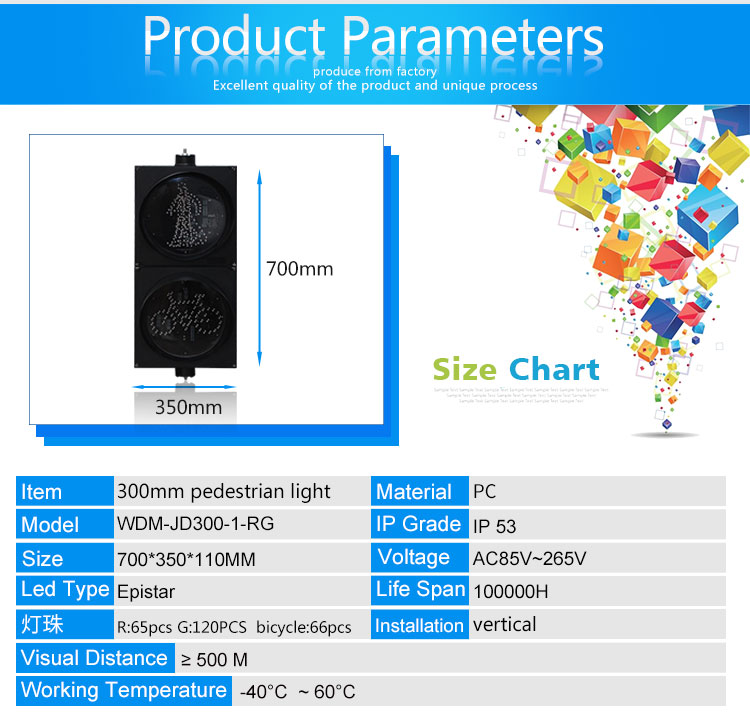

1. Product size: 700*350*110MM (without decorative edge)
2. Number of lamp beads: 65 reds, 120 greens
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Visible distance: ≥1000M
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: red 8W green 10W
15. Working mode: Red man static, green man dynamic
16. Installation method: vertical installation

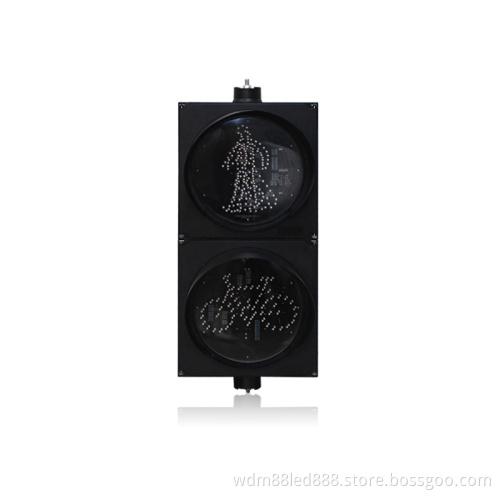

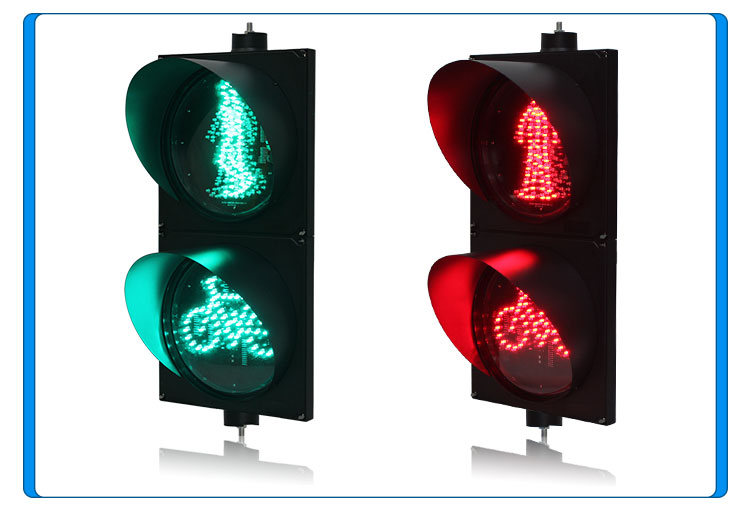

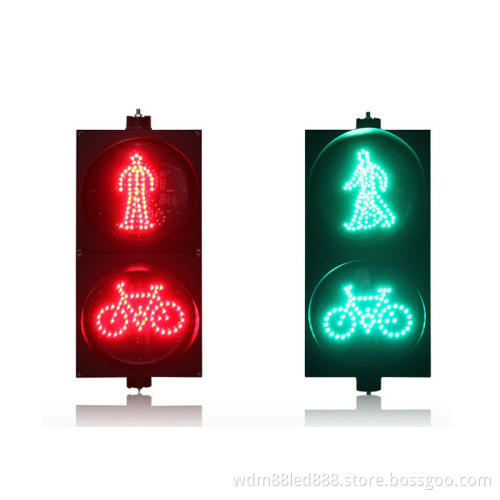

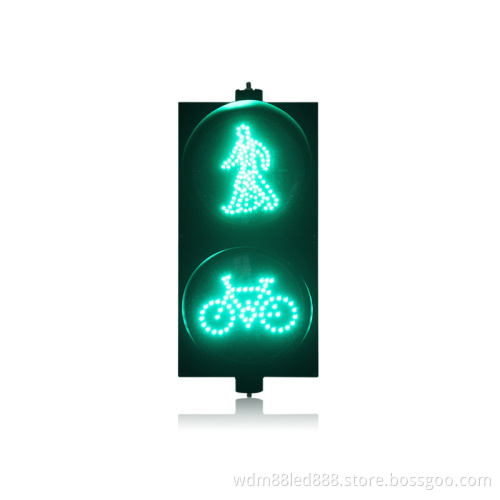

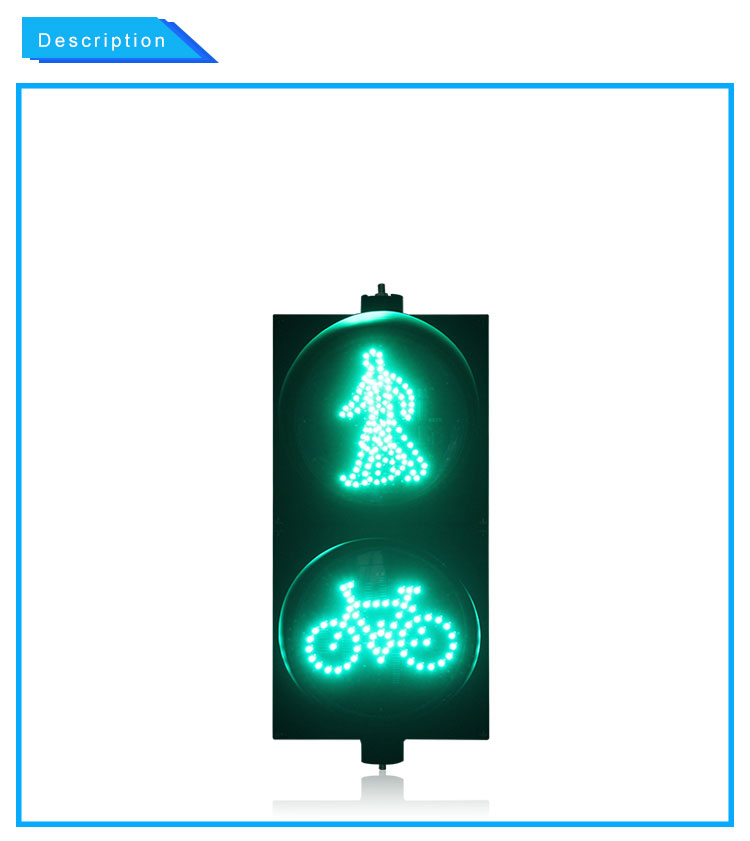

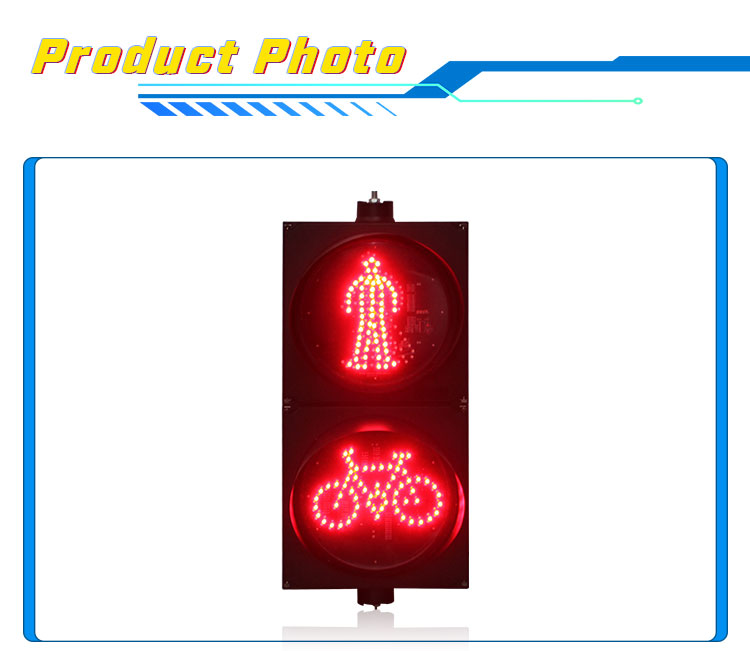

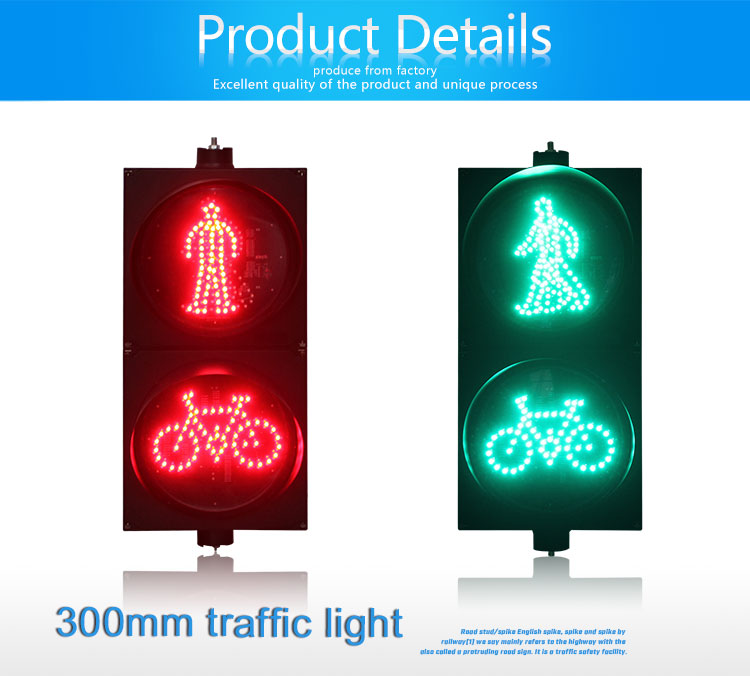

The physical picture of the 300mm pedestrian bicycle 24v led traffic light:

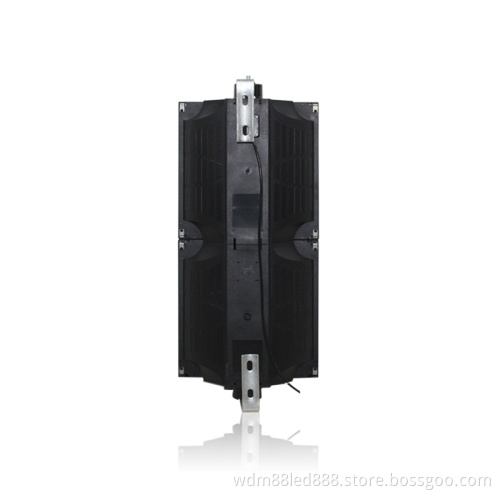

Installation method: vertical installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut.
3. Visor cap, installed on the upper part of the lamp, fold the 3 corner aluminum plate into a circular arc shape, put it on the lamp, and align it with screws
Tighten the corresponding holes.
4. Make two holes on the signal light pole, drill holes according to the hole position of the signal L bracket, and use a suitable screw to pass through the light pole,
Put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Note 2 points:
1. Visor is on top of the lamp
2. Outlet hole facing down (as shown)
Wiring method of two lights of 300mm pedestrian bicycle 24v led traffic light:
1. Connect to DC12V/24V:Red positive electrode
Red and black red light cathode;
Green line green light negative;
2. Connect to AC220V:
Black zero line
Red line red light fire line;
Green line Green light Fire line;
Details of accessories for the two lights of the 300mm pedestrian bicycle 24v led traffic light:
(1) Lamps: 1 set(2) (2) Instructions: 1 copy
(3) (3) Certificate of conformity: 1 copy
(4) (4) L-shaped bracket: 2
(5) (5) Sunshade: 2
(6) (6) M4 screws: 8
