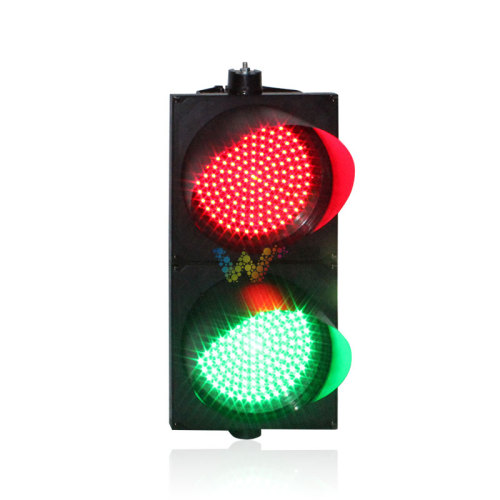

300mm warning red green signal traffic light lens
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description

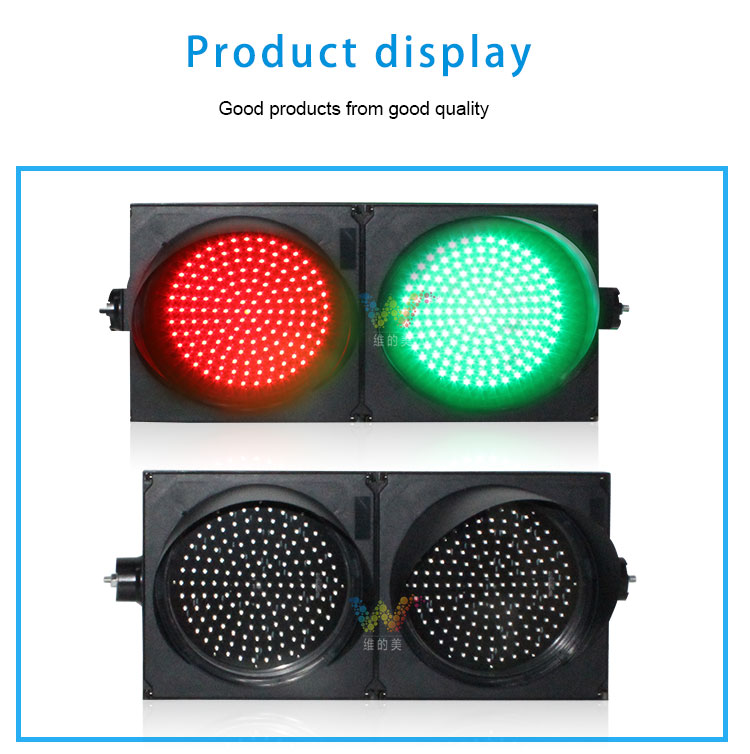

Parameter details of 300mm warning red green signal traffic light lens:
Product model: WDM-JD300-2-RG is mainly used in driving schools, intersections and other places.
1. Product size: 750*350*110MM (excluding decorative border)
2. Number of lamp beads: 156pcs red and green lights
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Visible distance: ≥1000M
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: 12W each for red and green
1.300 full-plate red and green lights use Taiwan wafer chip beads, high brightness, high refresh rate and long service life.
2.300 type full-panel red and green lights are designed with outlet holes on the back, which is not only convenient for outlet, but also has a good waterproof effect.
3. The sunshade cover of the 300300 full-panel red and green lights is made of PC material, which has good waterproof and dustproof effect and simple installation.
4. Each of the 300-type full-panel red and green lamps and the lamp adopt a snap-type design, which facilitates the inspection and maintenance of the product.
The installation method of 300mm warning red green signal traffic light lens:
Installation method: horizontal installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut.
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light pole, drill holes according to the signal's position of the L bracket, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut.
1. Visor is on top of the lamp
2. Outlet hole facing down (as shown)
300 type full plate red and green lights connection mode:
1. Connect to DC12V/24V:
Red positive electrode
Red and black red light cathode;
Green line green light negative;
2. Connect to AC220V:
Black zero line
Red line red light fire line;
China Led Pedestrian Traffic Light
Led Pedestrian Traffic Light
Led Pedestrian Traffic Signal Light
Solar Led Traffic Warning Light
Led Traffic Warning Light
125mm Led Traffic Signal Light
Product model: WDM-JD300-2-RG is mainly used in driving schools, intersections and other places.
1. Product size: 750*350*110MM (excluding decorative border)
2. Number of lamp beads: 156pcs red and green lights
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Visible distance: ≥1000M
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: 12W each for red and green
15. Installation method: horizontal or vertical
1.300 full-plate red and green lights use Taiwan wafer chip beads, high brightness, high refresh rate and long service life.
2.300 type full-panel red and green lights are designed with outlet holes on the back, which is not only convenient for outlet, but also has a good waterproof effect.
3. The sunshade cover of the 300300 full-panel red and green lights is made of PC material, which has good waterproof and dustproof effect and simple installation.
4. Each of the 300-type full-panel red and green lamps and the lamp adopt a snap-type design, which facilitates the inspection and maintenance of the product.
The installation method of 300mm warning red green signal traffic light lens:
Installation method: horizontal installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut.
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light pole, drill holes according to the signal's position of the L bracket, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut.
Installation method for the 300mm warning red green signal traffic light lens: vertical installation
The steps of vertical installation and horizontal installation are the same, just put it upright, pay attention to 2 points:1. Visor is on top of the lamp
2. Outlet hole facing down (as shown)
300 type full plate red and green lights connection mode:
1. Connect to DC12V/24V:
Red positive electrode
Red and black red light cathode;
Green line green light negative;
2. Connect to AC220V:
Black zero line
Red line red light fire line;
Green line Green light Fire line;
