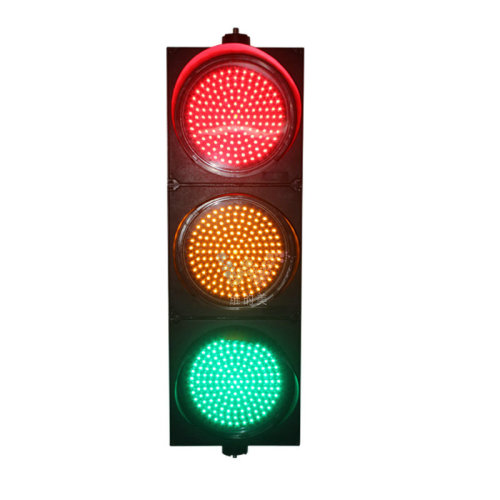

PC Housing led 300mm ryg traffic signal light

Features for the PC Housing led 300mm ryg traffic signal light:

PC Housing led 300mm ryg traffic signal light parameter details:
1. Product size: 1050*350*110mm (without decorative edge)
2. Number of lamp beads: 156 for red, yellow and green
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Yellow wavelength: 590-595NM
7. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: red and yellow 18W green 22W
15. Installation method: horizontal or vertical

Characteristics of the PC Housing led 300mm ryg traffic signal light:
1. PC Housing led 300mm ryg traffic signal light adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
2. PC Housing led 300mm ryg traffic signal light are designed with outlet holes on the back, which not only facilitates the outlet, but also has a good waterproof effect.
3. The sunshade cover of PC Housing led 300mm ryg traffic signal light is made of PC material, which has a good waterproof and dustproof effect and is easy to install.
4. Each lamp and lamp of PC Housing led 300mm ryg traffic signal light adopts a snap-type design, which facilitates the inspection and maintenance of the product.

Installation accessories and installation methods of PC Housing led 300mm ryg traffic signal light:
Installation method: horizontal installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut.
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light rod, drill holes according to the signal L-bracket holes, use a suitable screw to pass through the light rod, and put the L-shaped bracket on the screw and fix it with the nut.
Installation method: vertical installation
The steps of vertical installation and horizontal installation are just the same.
Note 2 points,
1. Visor is on top of the lamp
2. Outlet hole facing down

PC Housing led 300mm ryg traffic signal light manufacturer:
Shenzhen Wide Way Optoelectronics Co., Ltd. is a professional manufacturer of traffic lights. All traffic lights in Guangxi come from our Shenzhen Wide Way Optoelectronics Co., Ltd. The traffic signals produced by our company are all produced by automated machinery.
Shenzhen Wide Way Optoelectronics Co., Ltd. has been working as a traffic light for about 17 years. In the middle of these 17 years, from the beginning of the technical portfolio and sales portfolio, to the current technical research and development team, sales team, and engineering design team, we have our own Of the fully automated production equipment production machines, have their own large-scale factory buildings, these people have their own national high-tech enterprises, and have the contract and trustworthy enterprise issued by the national Shenzhen. The company has always been working hard Go to work and believe that we can do better in the future,
