Solar 300mm Led Portable Traffic Signal light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description

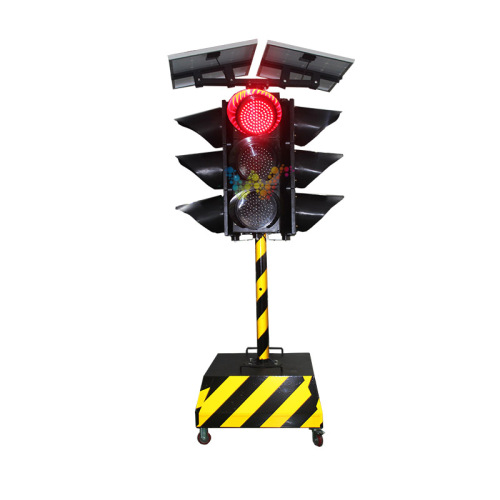

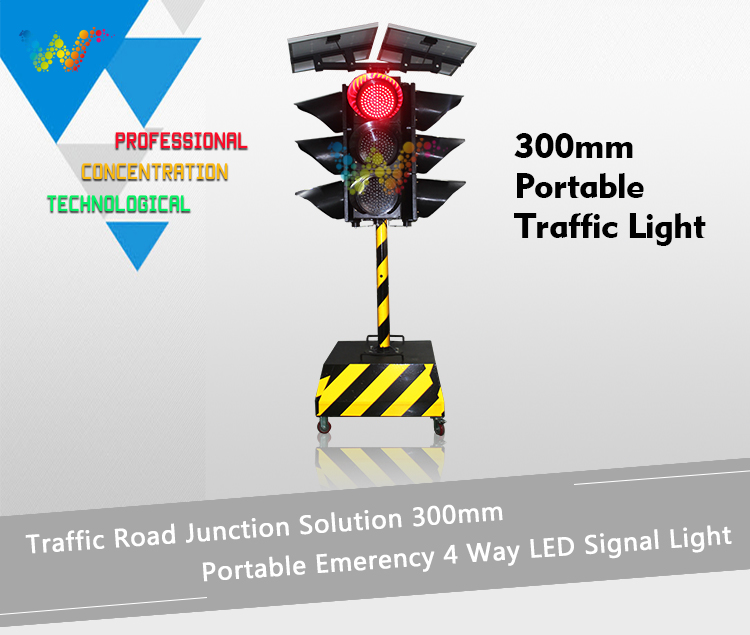

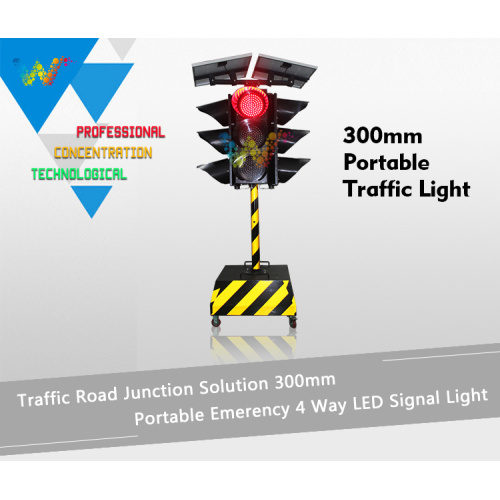

Solar 300mm Led Portable Traffic Signal light
The 300mm mobile traffic light is mainly used for traffic roads. It is a mobile solar emergency traffic light, powered by solar energy. The light source adopts high-quality LED energy-saving light source, suitable for intersections, no cable connection, that is, no need to break the road or overhead Line, installation is very simple, time-saving, labor-saving and cost-saving, easy maintenance, emergency command vehicles and pedestrians in the case of power outages or maintenance of traffic lights; its mobility is very strong, you can move the signal lights arbitrarily, placed in a variety of emergency road junctions .

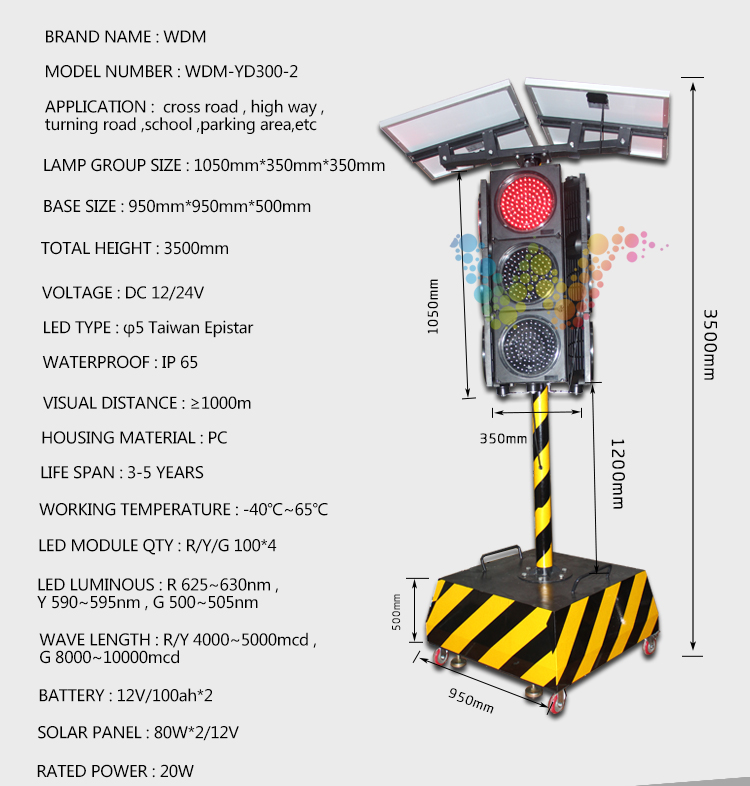

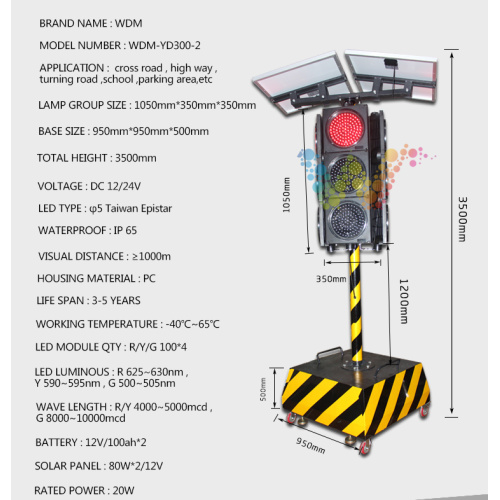

The basic parameters of Solar 300mm Led Portable Traffic Signal light:
Product model: WDM-YD300-21. Lamp head size: 1050mm*350mm*350mm
2. Back box size: 950mm*950mm*500mm
3. Total height 3500MM (including solar panel)
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Number of lamp beads: 75 red, yellow and green *4
6. Red wavelength: 620-625NM
7. Yellow light wavelength: 590-595NM
8. Green light wavelength: 520-525NM
9. Shell material: electrostatic spraying, sheet metal chassis
10. Working temperature: -40℃-65℃
11. Protection level: IP65
12. Battery: 12V/100AH
13. Working voltage: DC12V
14. Rated power: red/yellow 20W green 24W
15. Solar panel: 80W/18V
16. Service life: 100000AH
17. Visible distance: ≥1000M
18. Working mode: remote control or manual control

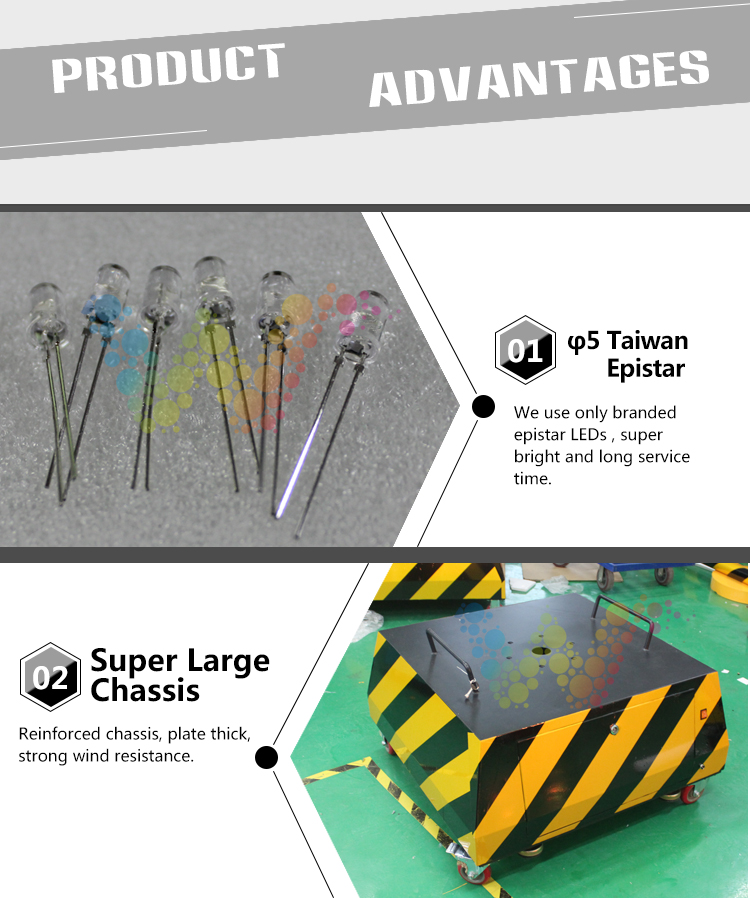

The characteristics of Solar 300mm Led Portable Traffic Signal light:
1. The Solar 300mm Led Portable Traffic Signal light trolley uses 360-degree movable casters, which is very convenient to move. At the same time with brake.
2. The 5MM thick flange used in the pole of the Solar 300mm Led Portable Traffic Signal light enhances the stability of the product.
3. The Solar 300mm Led Portable Traffic Signal light cart has a fixed suction cup at the bottom to make the product more stable.
4. Solar 300mm Led Portable Traffic Signal light use Taiwan wafer chip beads, high brightness, high refresh rate and long service life.
5. The Solar 300mm Led Portable Traffic Signal light use 60W/18V solar panels, solar power supply, energy saving and environmental protection.
6. Solar 300mm Led Portable Traffic Signal light use mobile trolleys, which are easy to implement and save time and effort.

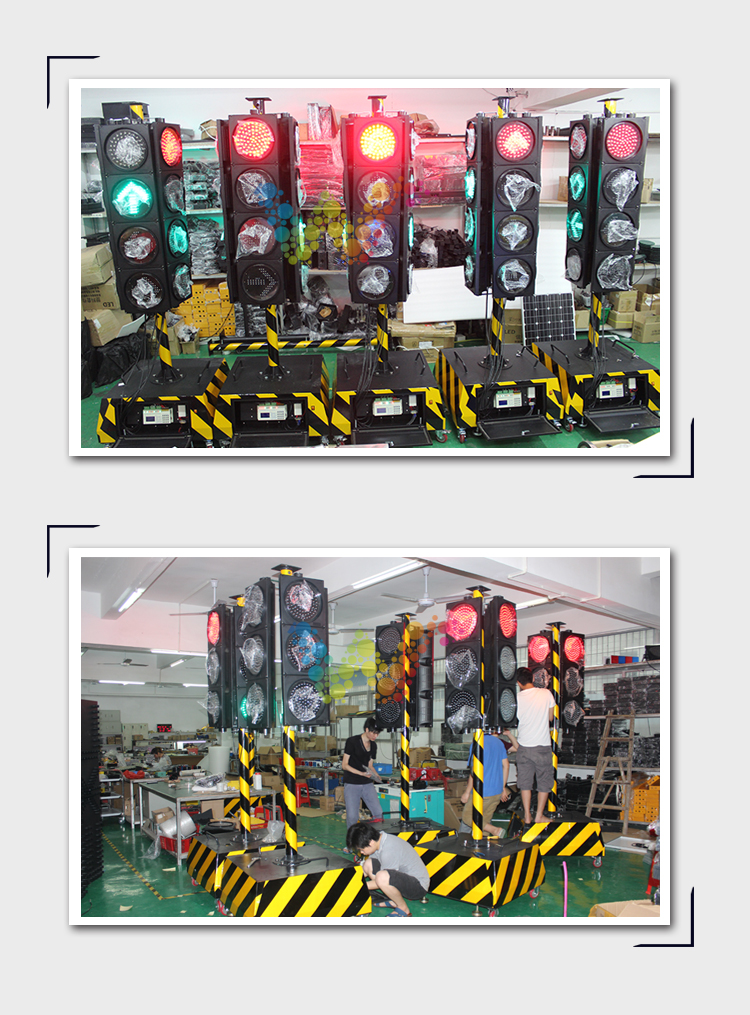

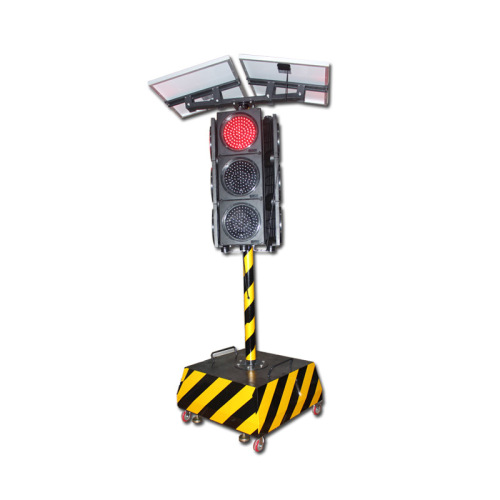

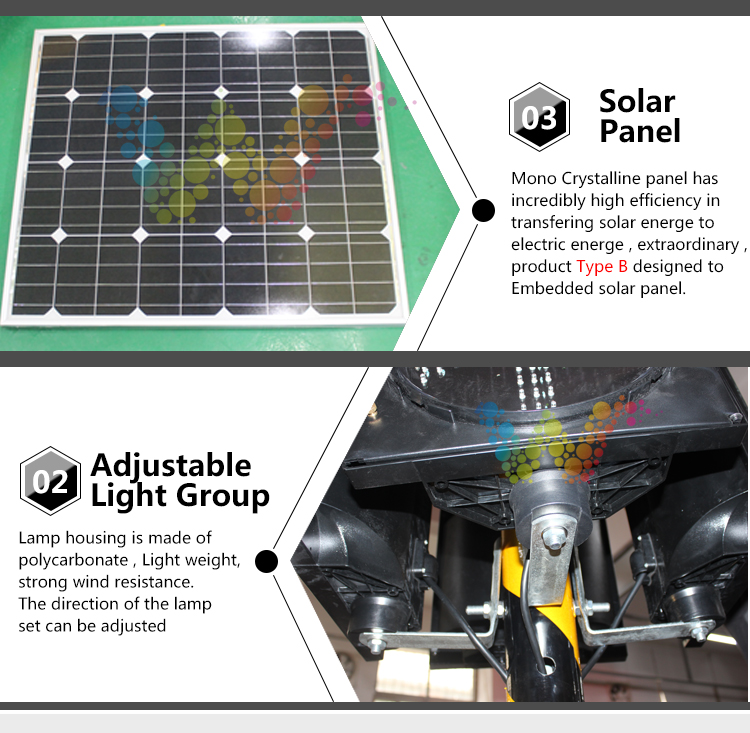

The physical picture of Solar 300mm Led Portable Traffic Signal light:
Installation method of Solar 300mm Led Portable Traffic Signal light:
(1) Solar panel installation:
Assemble the solar panel and the solar bracket, and tighten the screws. (M12 screw is first sleeved into shrapnel, then sleeved, and then tightened)
(2) Installation of solar panels and light boxes:
Align the hole position of the assembled solar panel bracket with the hole position on the top of the lamp, and then fasten with 4 M12 stainless steel screws. Then connect the solar panel to the lamp. (M12 screw is first sleeved into shrapnel, then sleeved, and then tightened)
(3) Install the light box and the pole:
First pass the power cord of the light box through the middle of the pole,
Then align the flange at one end of the pole with the hole at the bottom of the lamp,
Then use 4 M12 stainless steel screws to tighten. (M12 screw is first sleeved into shrapnel, then sleeved, and then tightened)
(4) Installation of upright and trolley:
First pass the wire in the light box through the middle of the light pole to the bottom of the trolley,
Then align the flange at the other end of the upright with the hole at the bottom of the cart,
Then use 4 M12 stainless steel screws to tighten. (The M12 screw is put into the shrapnel first, then into the gasket, and then fastened) Finally, the power cord is taken out from the bottom of the cart and connected to the control board of the cart.
(5) Installation of sunshade:
The sunshade is installed on the upper part of the lamp, the 3 corner aluminum plate is folded into an arc shape, and the lamp is placed on the lamp, and the nut is aligned with the corresponding hole position with the M4 screw and the nut can be tightened.
