bi-color red green 200mm flashing traffic signal light
The bi-color red green 200mm flashing traffic signal light is Adopt Taiwan wafer chip lamp beads, high brightness, high refresh rate, long service life.
The parameters for the bi-color red green 200mm flashing traffic signal light:
Material:pc
LED QTY:90pcs each color
Lamp diameter:200mm
LED luminous:red : 620-630nm , green :500-505nm
Wave length:4000-5000mcd
Life span:3-5 years
NET Weight:6KG
visual angle:30 °C
Visual distance:800m
Warranty:2years
Working temperature:-40℃--+50℃
LED type:Taiwan Epistar
The characteristics of the bi-color red green 200mm flashing traffic signal light:
1. bi-color red green 200mm decorative flashing traffic signal light adopts Taiwan wafer chip lamp beads, high brightness, high refresh rate and long service life.
2. The bi-color red green 200mm decorative flashing traffic signal light has a cable outlet on the back, which not only facilitates cable outlet, but also has a good waterproof effect.
3.bi-color red green 200mm decorative flashing traffic signal light sunshade is made of PC material, which has better waterproof and dustproof effect and easy installation.
4. bi-color red green 200mm decorative flashing traffic signal light is installed by L-shaped bracket, which is very convenient to assemble.

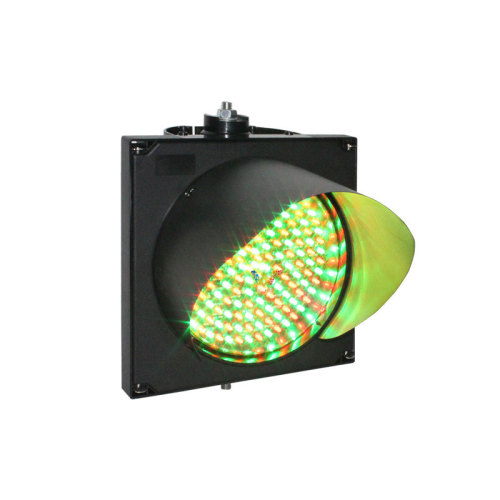

The physical picture of the bi-color red green 200mm flashing traffic signal light:
The installation of the bi-color red green 200mm flashing traffic signal light:
Installation: horizontal installation
(1) A screw is left at both ends. Unscrew the nut on the screw.
(2) Put the flat end of the "L" bracket on the screw according to the hole position and the slot, and tighten the nut. (as the picture shows)
(3) The sun cap is installed on the upper part of the lamp, and the sun cap is put on the lamp, and the screw is aligned with the corresponding hole and tightened.
(4) Make 2 holes on the signal lamp post, punch holes according to the position of the L bracket of the signal, use a suitable screw to penetrate the lamp post, cover the L-shaped bracket on the screw, and fix it with a nut. (as the picture shows)
Installation: vertical installation
The procedure for vertical installation is the same as for horizontal installation.
Note 2 points:
1. The sun cap is on the top of the lamp 2. The outlet hole is facing downward (as shown in the figure):
bi-color red green 200mm flashing traffic signal light wiring:
1.Wiring DC12V / 24V:
(1) Red and black line-red cross negative pole;
(2) Red wire-positive electrode;
(3) Green line-negative pole of green arrow;
2. Connected to 220V:
(1) Black line-common zero line;
(2) Red Line-Red Cross Fire Line;
(3) Green Line-Green Arrow Fire Line;
Details of accessories for the bi-color red green 200mm flashing traffic signal light:
(1) Lighting: 1 set
(2) Sunshade: 1
(3) L-shaped bracket: 2
(4) Instructions: 1 copy
(5) Certificate of conformity: 1 copy
(6) M3 screws: 4
