waterproof Red single 200mm led traffic signal light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description

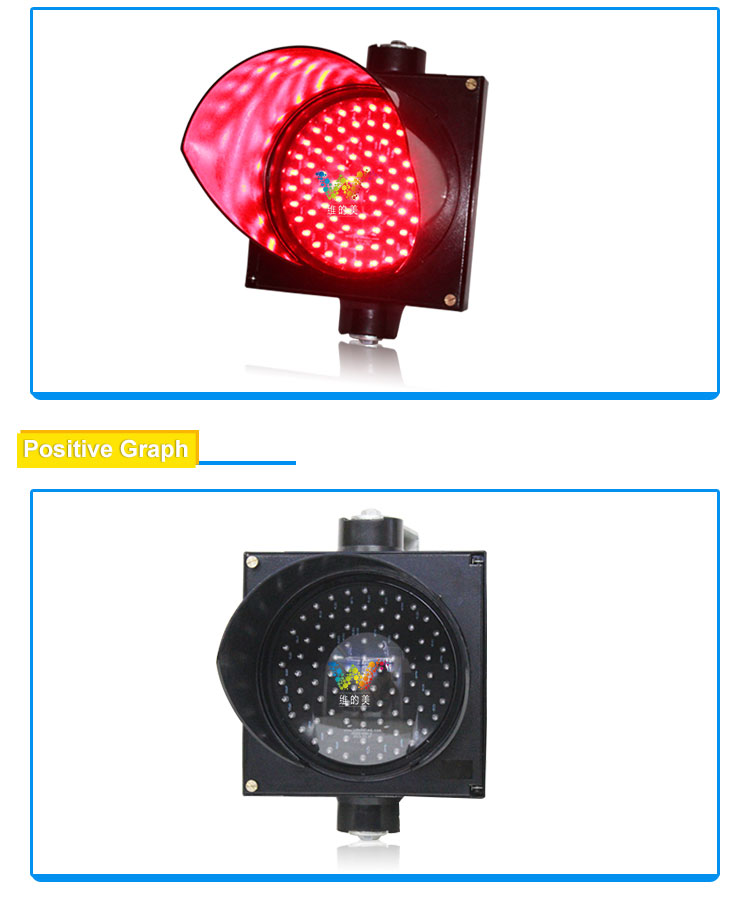

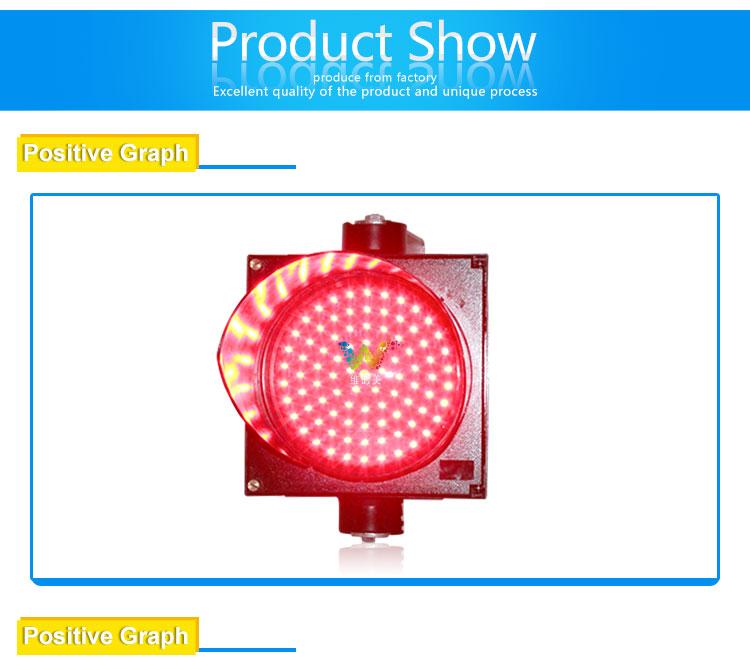

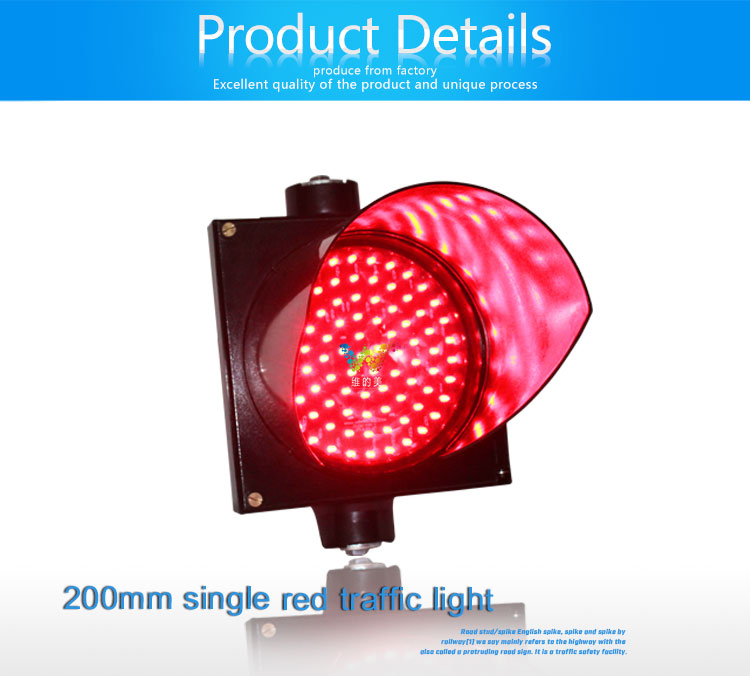

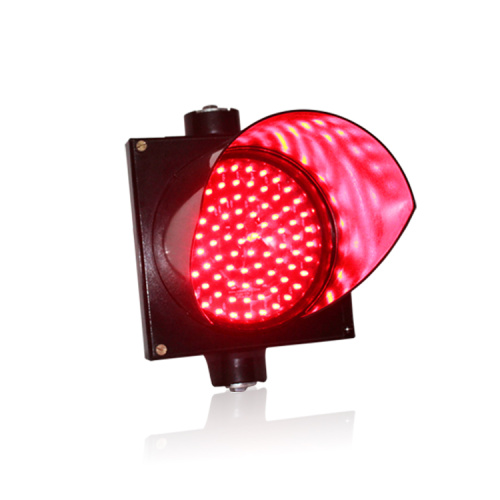

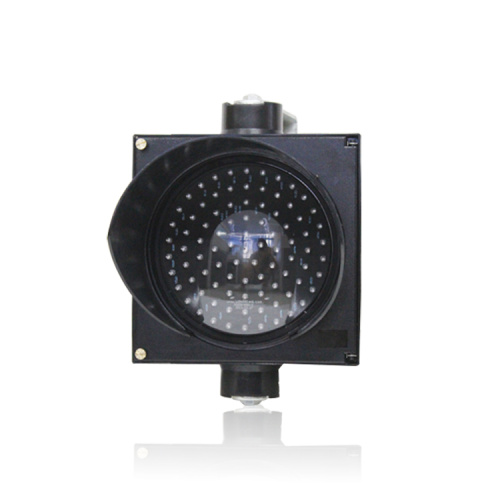

waterproof Red single 200mm led traffic signal light
The waterproof Red single 200mm led traffic signal light adopts Taiwan wafer chip lamp beads, high brightness, high refresh rate and long service life.
waterproof Red single 200mm led traffic signal light

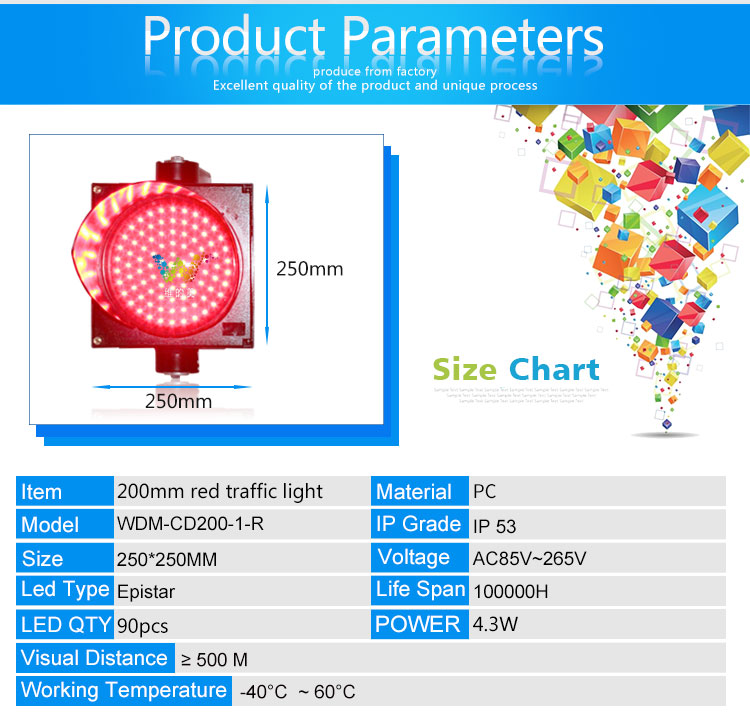

Material :pc
LED QTY:90pcs
Lamp diameter:200mm
LED luminous:red : 620-630nm , green :500-505nm
Wave length:4000-5000mcd
Life span:3-5 years
NET Weight:6KG
visual angle:30 °C
Visual distance:800m
Warranty:2years
Working temperature:-40℃--+50℃
LED type:Taiwan Epistar
Application : use for cross road , high way ,turning road ,school ,parking area, foggy area etc.

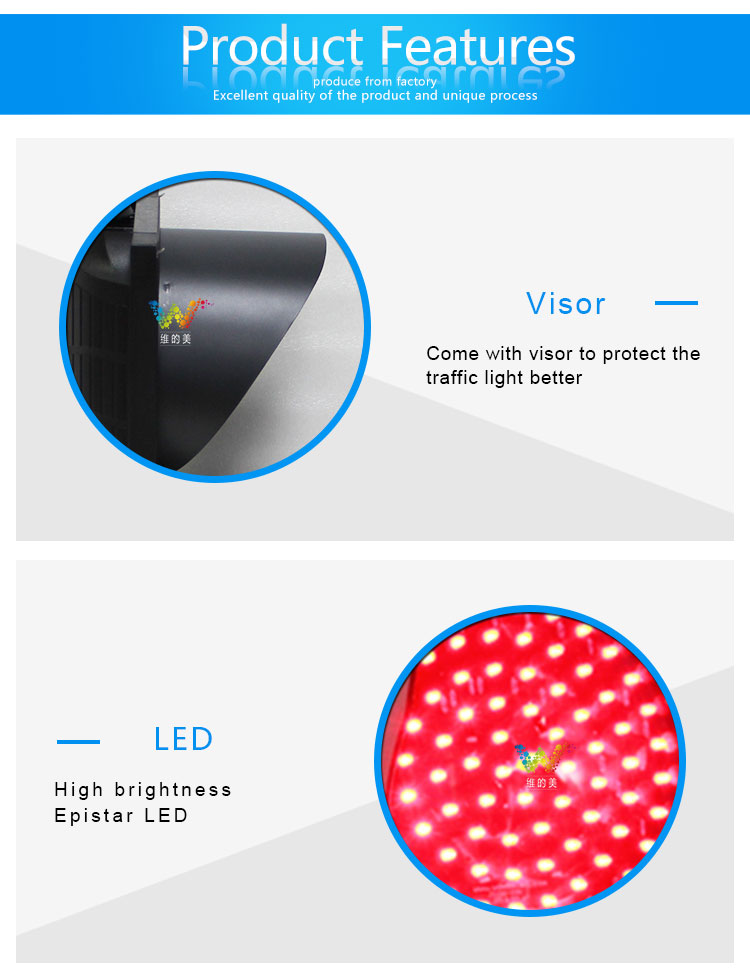

The characteristics of the waterproof Red single 200mm led traffic signal light:
1. waterproof Red single 200mm led traffic signal light adopts Taiwan wafer chip lamp beads, high brightness, high refresh rate and long service life.

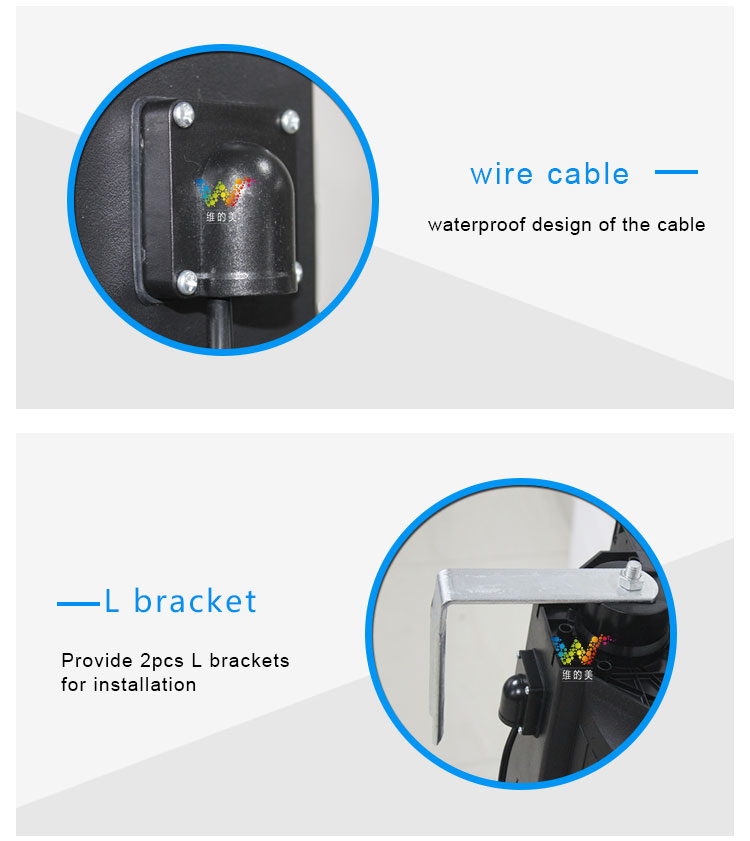

2. There is a cable outlet on the back of the waterproof Red single 200mm led traffic signal light, which not only facilitates the cable outlet, but also has a good waterproof effect.
3. The sunshade of the waterproof Red single 200mm led traffic signal light is made of PC material, which has a better waterproof and dustproof effect and is simple to install.

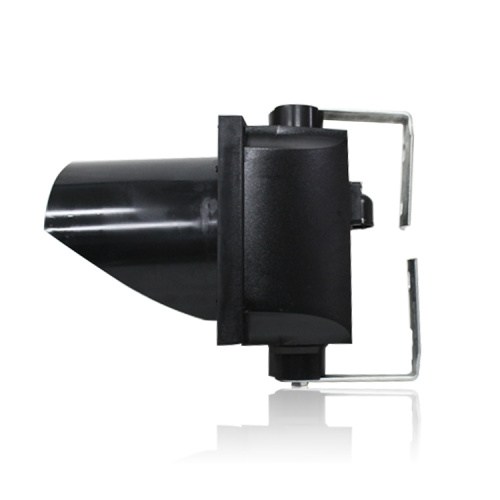

4. The waterproof Red single 200mm led traffic signal light is installed with an L-shaped bracket, which is very easy to assemble.

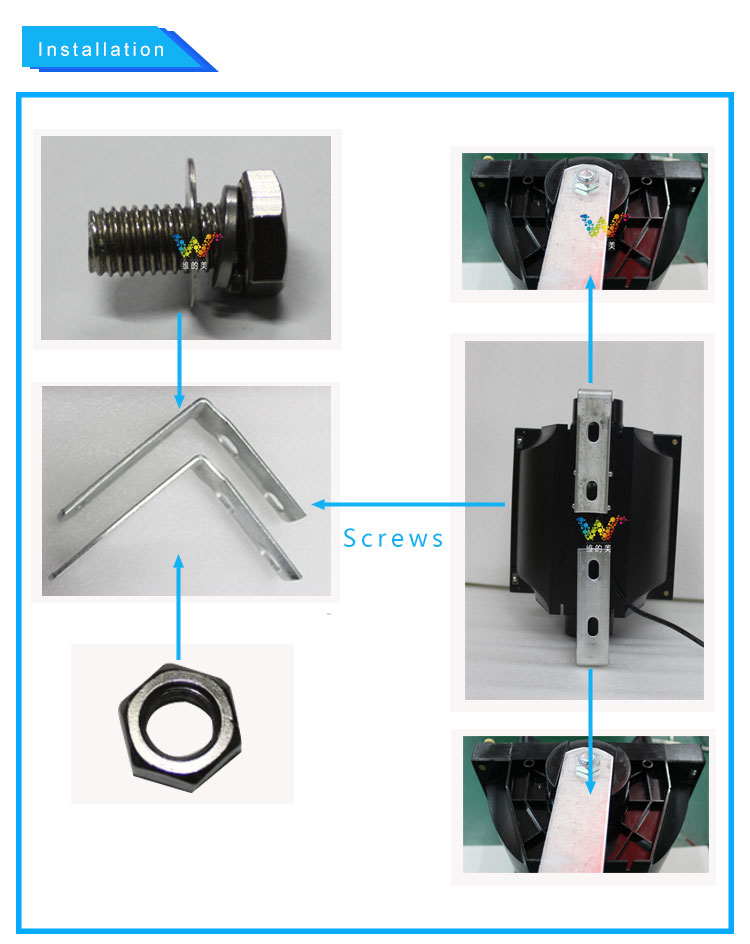

The installation of the waterproof Red single 200mm led traffic signal light:
Installation: horizontal installation
(1) A screw is left at both ends. Unscrew the nut on the screw.
(2) Put the flat end of the "L" bracket on the screw according to the hole position and the slot, and tighten the nut. (as the picture shows)
(3) The sun cap is installed on the upper part of the lamp, and the sun cap is put on the lamp, and the screw is aligned with the corresponding hole and tightened.
(4) Make 2 holes on the signal lamp post, punch holes according to the position of the L bracket of the signal, use a suitable screw to penetrate the lamp post, cover the L-shaped bracket on the screw, and fix it with a nut. (as the picture shows)
The procedure for vertical installation is the same as for horizontal installation.
Pay attention to 2 points:
1.The sun cap is on the top of the lamp
2. The outlet hole is facing downward (as shown in the figure):
The wiring mode of the waterproof Red single 200mm led traffic signal light:
1.Power on DC12V / 24V:
Red positive
Black negative
2. Connected to AC220V:
Black zero line
Red line of fire
Details of accessories for waterproof Red single 200mm led traffic light:
(1) Lighting: 1 set
(2) Sunshade: 1
(3) L-shaped bracket: 2
(4) Manual: 1 copy
(5) Certificate of conformity: 1 copy
(6) M3 screw: 4
In addition to the waterproof Red single 200mm led traffic signal light, Shenzhen Wide Way Optoelectronics Co., Ltd. also produces other styles of traffic lights:
Led Pedestrian Traffic Light
Led Pedestrian Traffic Signal Light
Solar Led Traffic Warning Light
Led Traffic Warning Light
125mm Led Traffic Signal Light
125mm Mini Traffic Light
Customized Traffic Signal Light
