Aluminum Anti-collision fog solar flashing warning light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |

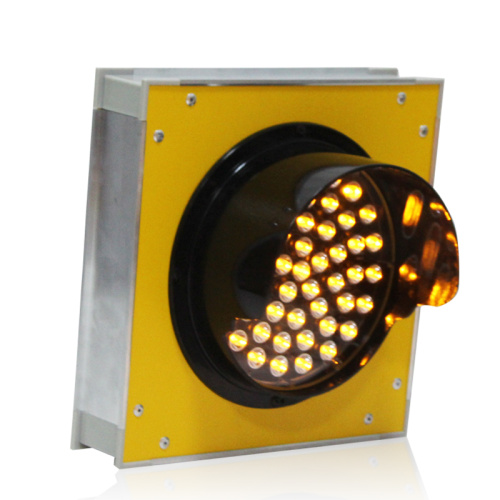

Aluminum Anti-collision fog solar flashing warning light
The parameter details of the Aluminum Anti-collision fog solar flashing warning light:
1. Product size: 300*300*70M
2. Luminous diameter: 200MM
3. Number of lamp beads: 50pcs yellow
4.Lamp Bead Type: Taiwan Epistar Chip Bead
5. Yellow wavelength: 590-595NM
6. Service life: 100000H
7. Shell material: aluminum shell
8. Working temperature: -40 ℃ -65 ℃
9. Protection level: IP65
10. Working voltage: AC85V-265V, a small amount of DC12V / 24V
11. Rated power: 15W
12. Visible distance: ≥1000M
Features of Aluminum Anti-collision fog solar flashing warning light:
Aluminum Anti-collision fog solar flashing warning light adopts Taiwan wafer chip lamp beads, high brightness, high refresh rate and long service life.
The Aluminum Anti-collision fog solar flashing warning light is designed with a cable outlet at the bottom, which not only facilitates cable outlet, but also has a good waterproof effect.
The Aluminum Anti-collision fog solar flashing warning light adopts an integrated box body, which makes the product have better waterproof effect.
The back of the Aluminum Anti-collision fog solar flashing warning light is equipped with a key switch, which facilitates product inspection and maintenance.
Installation of Aluminum Anti-collision fog solar flashing warning light:
Installation method of the base:
1. Align the holes on the two ends of the base with the holes on the bottom of the lamp.
2.Set the M12 shrapnel and gasket into the M12 screw.
3. The screw passes through the base and is screwed into the hole at the bottom of the lamp.
4. In order to prevent shaking from damaging the lamp, it must be tightened (pictured)
5. Finally, put the entire lamp part into the pole (the line needs to pass through the pole)
Fourth, the wiring method of Aluminum Anti-collision fog solar flashing warning light:
DC12C / 24V:
1.Red line-12V / 24V positive
2.Black line-12V / 24V negative pole
3.Wiring DC12V / 24V
In addition to Aluminum Anti-collision fog solar flashing warning light, Shenzhen Wide Way Optoelectronics Co., Ltd. also produces the following other types of fog lights;
Solar Led Traffic Warning Light
Led Traffic Warning Light
125mm Led Traffic Signal Light
125mm Mini Traffic Light
Customized Traffic Signal Light
Solar Guidance Signs
