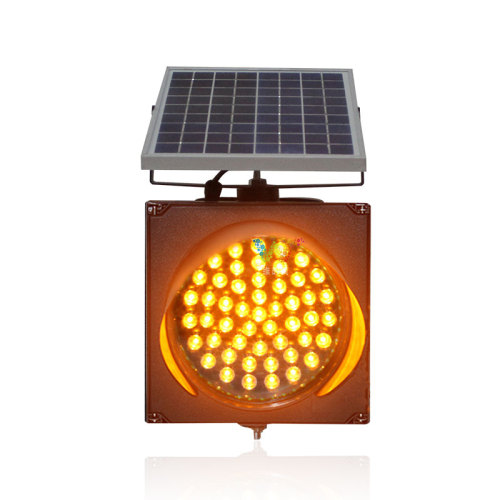

200mm yellow flashing signal traffic solar warning light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
200mm yellow flashing signal traffic solar warning light
Parameter details of 200mm yellow flashing signal traffic solar warning light:
1. Product size: 250*250*100M
2. Luminous diameter: 200MM
3. Number of lamp beads: 50 yellow
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Service life: 100000H
7. Shell material: electrostatic spraying, sheet metal chassis
8. Working temperature: -40℃-65℃
9. Protection level: IP65
10. Working voltage: AC85V-265V, a small amount of DC12V/24V
11. Rated power: 15W

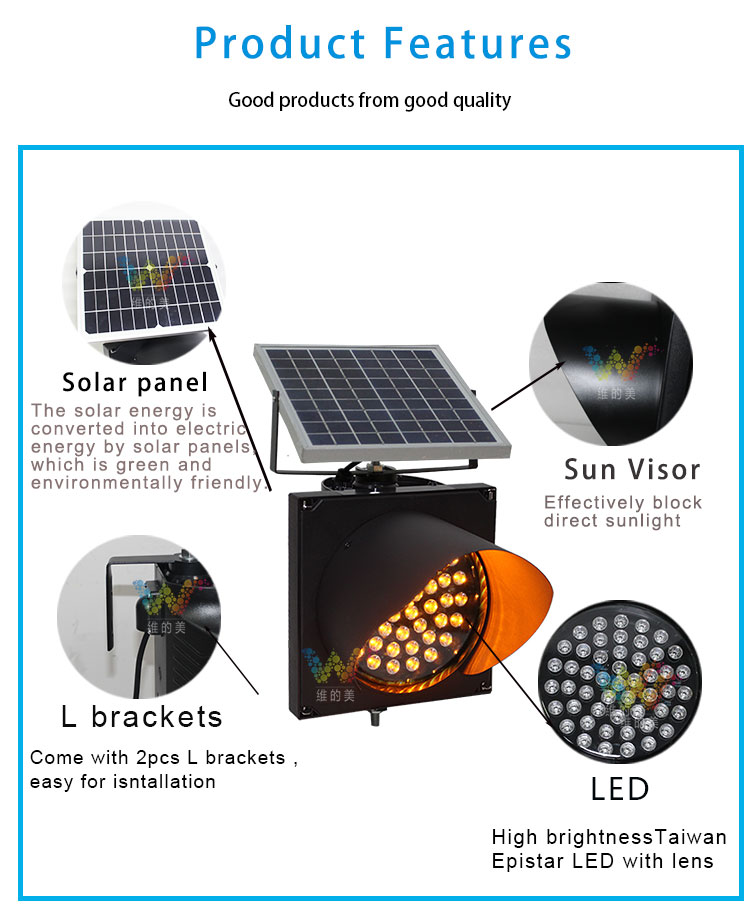

200mm yellow flashing signal traffic solar warning light use Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
The 200mm yellow flashing signal traffic solar warning light are designed with outlet holes at the bottom, which not only facilitates the outlet, but also has a good waterproof effect.
The 200mm yellow flashing signal traffic solar warning light adopts an integrated box body, which makes the product have better waterproof effect
Installation method of the base:
1. Align the holes at both ends of the base with the holes at the bottom of the lamp
2. Put the shrapnel and gasket of M12 into the screw of M12 respectively
3. The screw rod passes through the base and is screwed into the holes at the bottom of the lamp,
4. In order to prevent the lamp from being damaged by shaking, it must be tightened (as shown)
5. Finally, put the whole lamp part into the pole (the line needs to pass through the pole)
Wiring method of 2200mm yellow flashing signal traffic solar warning light:
Connect to DC12C/24V:
1. Red wire-12V/24V positive
2. Black wire-12V/24V negative
3. Wiring DC12V/24V
In addition to the 200mm yellow flashing signal traffic solar warning light, Shenzhen Weimeimei Photoelectric Co., Ltd. also produces the following other types of fog lights;
Traffic Light Replacement
Led Traffic Light Replacement
Solar Warning Flashing Light
Solar Warning Traffic Light
Highway Fog Light
Electro-optical Traffic Signs
Parameter details of 200mm yellow flashing signal traffic solar warning light:
1. Product size: 250*250*100M
2. Luminous diameter: 200MM
3. Number of lamp beads: 50 yellow
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Service life: 100000H
7. Shell material: electrostatic spraying, sheet metal chassis
8. Working temperature: -40℃-65℃
9. Protection level: IP65
10. Working voltage: AC85V-265V, a small amount of DC12V/24V
11. Rated power: 15W
12. Visible distance: ≥1000M
200mm yellow flashing signal traffic solar warning light use Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
The 200mm yellow flashing signal traffic solar warning light are designed with outlet holes at the bottom, which not only facilitates the outlet, but also has a good waterproof effect.
The 200mm yellow flashing signal traffic solar warning light adopts an integrated box body, which makes the product have better waterproof effect
The back design of the 200mm yellow flashing signal traffic solar warning light is equipped with a key switch, which facilitates the inspection and maintenance of the product.
Installation method of the base:
1. Align the holes at both ends of the base with the holes at the bottom of the lamp
2. Put the shrapnel and gasket of M12 into the screw of M12 respectively
3. The screw rod passes through the base and is screwed into the holes at the bottom of the lamp,
4. In order to prevent the lamp from being damaged by shaking, it must be tightened (as shown)
5. Finally, put the whole lamp part into the pole (the line needs to pass through the pole)
Wiring method of 2200mm yellow flashing signal traffic solar warning light:
Connect to DC12C/24V:
1. Red wire-12V/24V positive
2. Black wire-12V/24V negative
3. Wiring DC12V/24V
In addition to the 200mm yellow flashing signal traffic solar warning light, Shenzhen Weimeimei Photoelectric Co., Ltd. also produces the following other types of fog lights;
Traffic Light Replacement
Led Traffic Light Replacement
Solar Warning Flashing Light
Solar Warning Traffic Light
Highway Fog Light
Electro-optical Traffic Signs
