Dual Sided 200mm traffic light 2 aspects
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
Dual Sided 200mm traffic light 2 aspects
The basic parameters of Dual Sided 200mm traffic light 2 aspects:

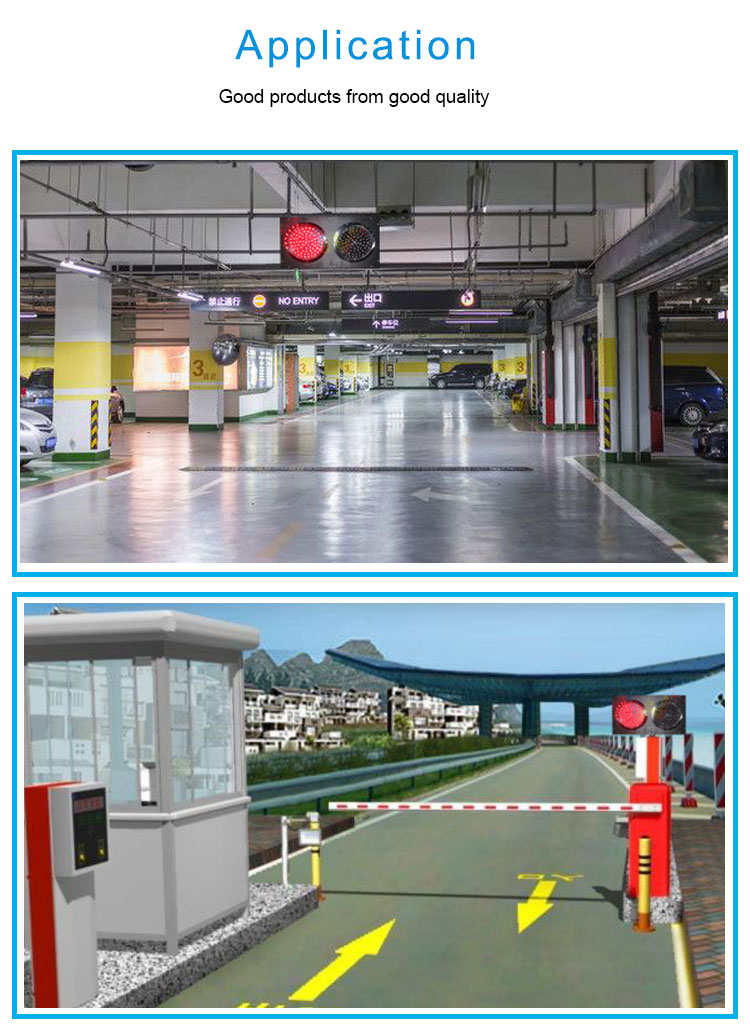

Product model: WDM-JD200-2-4-RG is mainly used in parking lots, playgrounds, workshops, teaching, etc.
1. Product size: 550*300*290MM
2. Color of lamp beads: red green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 200MM
5. Number of lamp beads: 80 pieces of red and green *2
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green)
8. Installation method: horizontal installation
9. Shell material: electrostatic spraying, sheet metal chassis
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Light angle: 30°
13. Visible distance: ≥1000M
14. Service life: 100000H
15. Rated power: 8W each for red, yellow and green

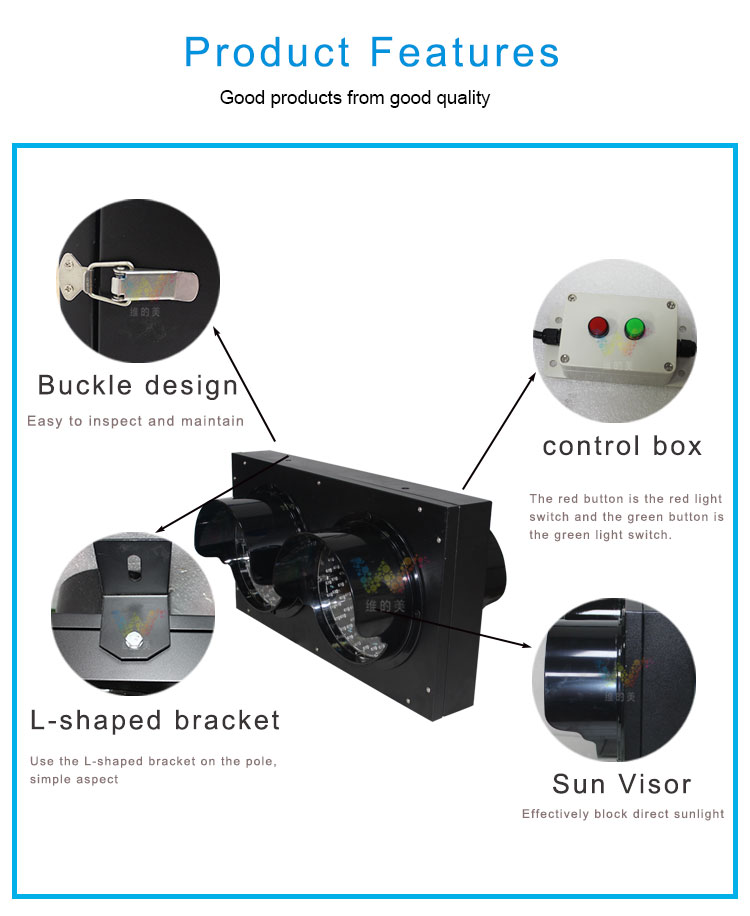

Features of Dual Sided 200mm traffic light 2 aspects:
1. The Dual Sided 200mm traffic light 2 aspects use Taiwan wafer chip beads, high brightness, high refresh rate, and long service life.
2. The Dual Sided 200mm traffic light 2 aspects use an integrated sheet metal chassis, which is waterproof, rustproof and dustproof in all directions, easy to install and greatly improves the quality of the product and extends the service life of the product.
3. Dual Sided 200mm traffic light 2 aspects are equipped with waterproof terminals at the bottom, which has a good waterproof effect.
4. Dual Sided 200mm traffic light 2 aspects are installed with L-shaped bracket, which is very convenient for assembly.

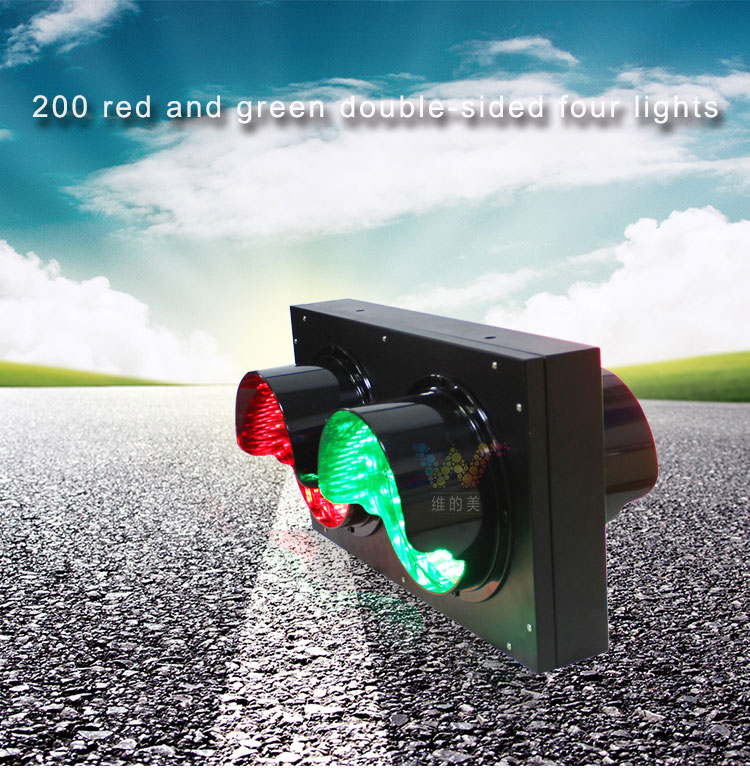

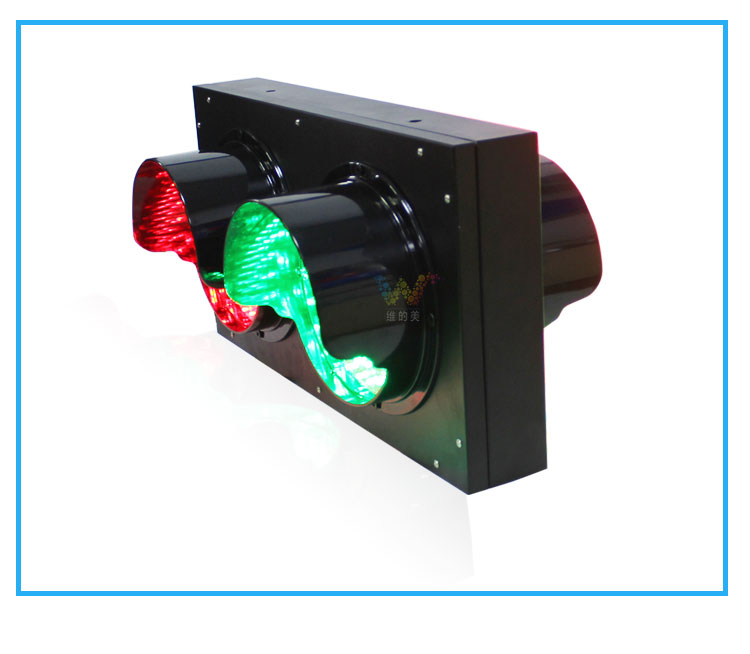

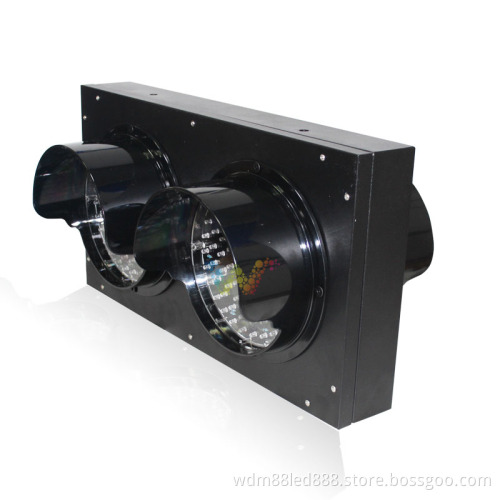

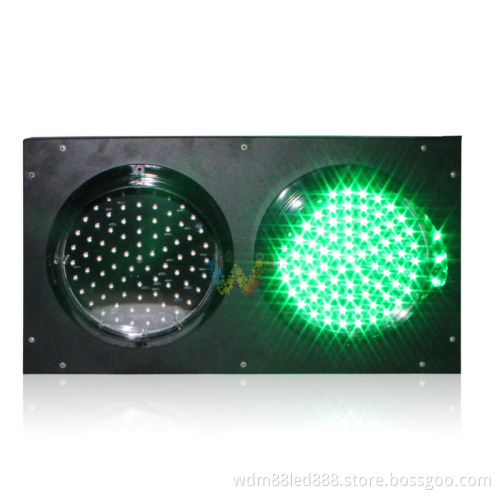

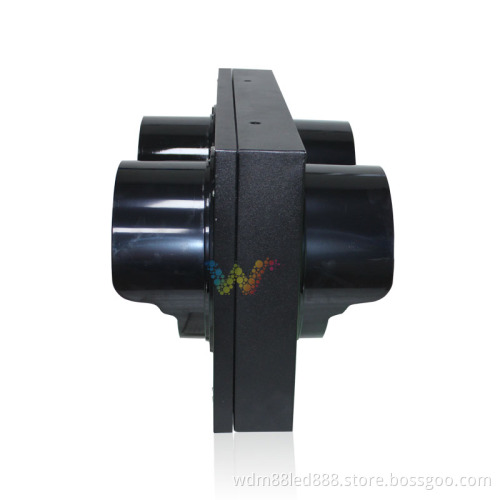

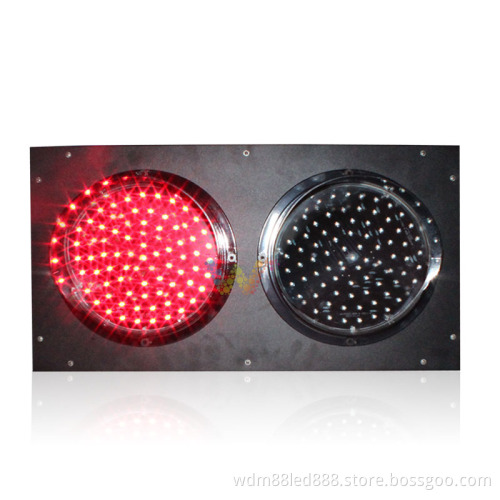

The physical picture of the Dual Sided 200mm traffic light 2 aspects:
Installation method of Dual Sided 200mm traffic light 2 aspects:

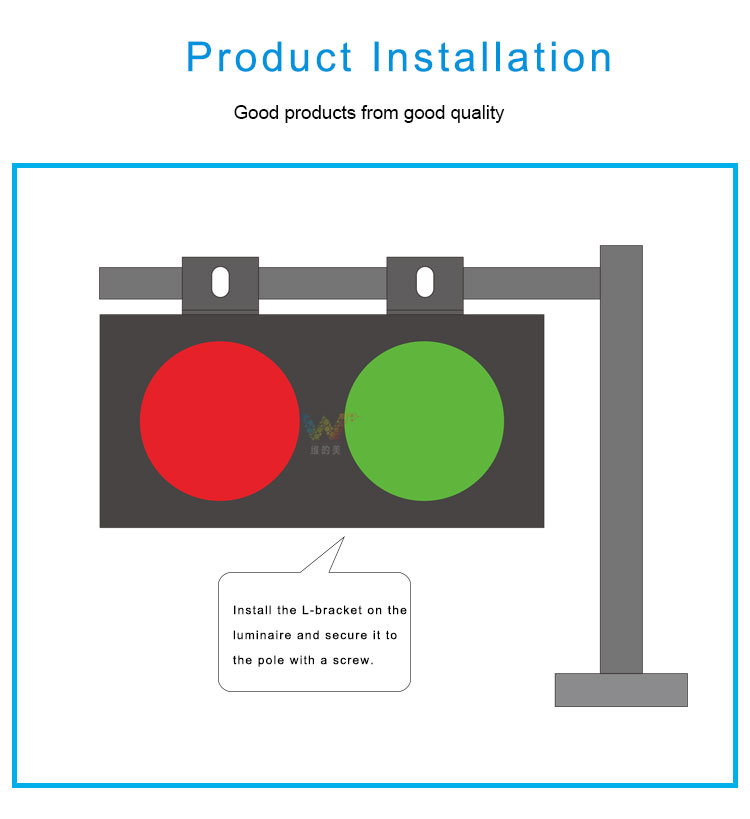

1. L-bracket installation instructions:
(1) Align the hole position of the L-shaped bracket with the hole position of M12 on the side
(2) Put the gasket into the stud of M12
(3) Pass the stud through the L-shaped bracket
(4) Finally, tighten the screws. (as the picture shows)
Wiring method of Dual Sided 200mm traffic light 2 aspects:
1. Connect to DC12V/24V:
1. Red and blue wire-red light 12V/24V negative
2. Green line-green light 12V/24V negative
3. Red line-public positive
2. Connect to AC220V:
1. Black line-public zero line
2. Green line-green light fire line
3. Red line-red light fire line

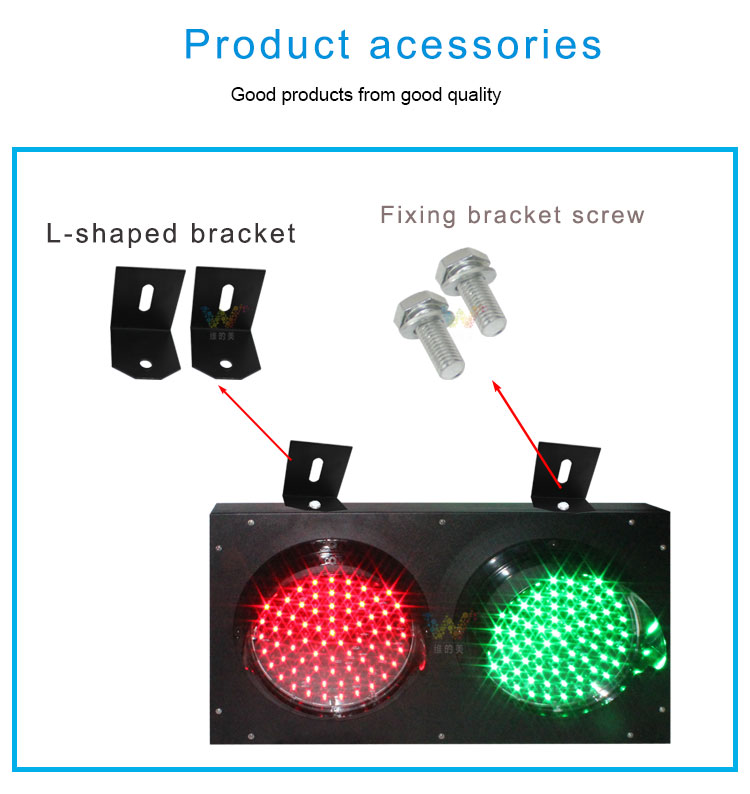

Details of accessories for Dual Sided 200mm traffic light 2 aspects:
(1) Lamps: 1 set
(2) L-shaped bracket: 2
(3) Qualification certificate: 1 copy
(4) Instructions: 1 copy
(5) M12 screw + shrapnel + gasket: 2 sets
300 traffic lights;
The basic parameters of Dual Sided 200mm traffic light 2 aspects:
Product model: WDM-JD200-2-4-RG is mainly used in parking lots, playgrounds, workshops, teaching, etc.
1. Product size: 550*300*290MM
2. Color of lamp beads: red green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 200MM
5. Number of lamp beads: 80 pieces of red and green *2
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green)
8. Installation method: horizontal installation
9. Shell material: electrostatic spraying, sheet metal chassis
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Light angle: 30°
13. Visible distance: ≥1000M
14. Service life: 100000H
15. Rated power: 8W each for red, yellow and green
Features of Dual Sided 200mm traffic light 2 aspects:
1. The Dual Sided 200mm traffic light 2 aspects use Taiwan wafer chip beads, high brightness, high refresh rate, and long service life.
2. The Dual Sided 200mm traffic light 2 aspects use an integrated sheet metal chassis, which is waterproof, rustproof and dustproof in all directions, easy to install and greatly improves the quality of the product and extends the service life of the product.
3. Dual Sided 200mm traffic light 2 aspects are equipped with waterproof terminals at the bottom, which has a good waterproof effect.
4. Dual Sided 200mm traffic light 2 aspects are installed with L-shaped bracket, which is very convenient for assembly.
The physical picture of the Dual Sided 200mm traffic light 2 aspects:
Installation method of Dual Sided 200mm traffic light 2 aspects:
1. L-bracket installation instructions:
(1) Align the hole position of the L-shaped bracket with the hole position of M12 on the side
(2) Put the gasket into the stud of M12
(3) Pass the stud through the L-shaped bracket
(4) Finally, tighten the screws. (as the picture shows)
Wiring method of Dual Sided 200mm traffic light 2 aspects:
1. Connect to DC12V/24V:
1. Red and blue wire-red light 12V/24V negative
2. Green line-green light 12V/24V negative
3. Red line-public positive
2. Connect to AC220V:
1. Black line-public zero line
2. Green line-green light fire line
3. Red line-red light fire line
Details of accessories for Dual Sided 200mm traffic light 2 aspects:
(1) Lamps: 1 set
(2) L-shaped bracket: 2
(3) Qualification certificate: 1 copy
(4) Instructions: 1 copy
(5) M12 screw + shrapnel + gasket: 2 sets
In addition to the Dual Sided 200mm traffic light 2 aspects, Shenzhen Wide Way Optoelectronics Co., Ltd. also produces other types of traffic lights:
Dual Sided 200mm red yellow green traffic light
300 traffic lights;
400 type traffic lights and so on.
