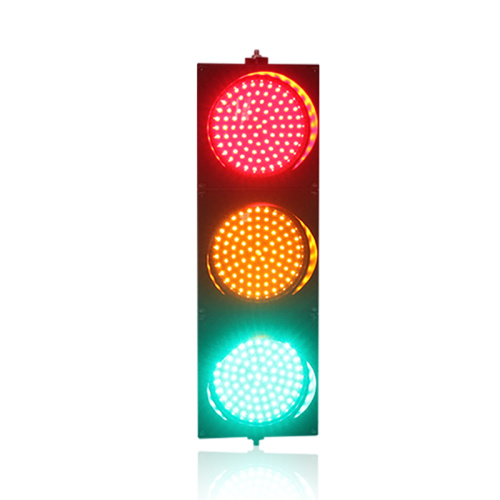

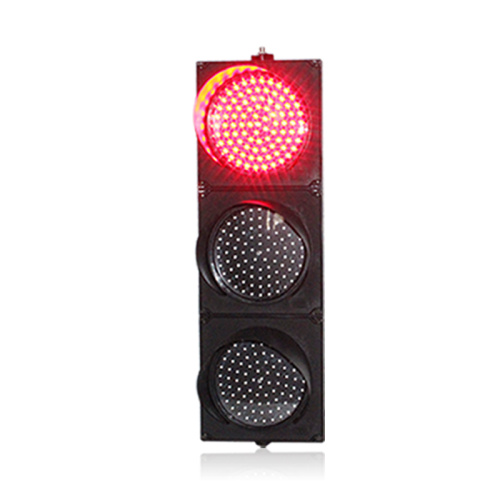

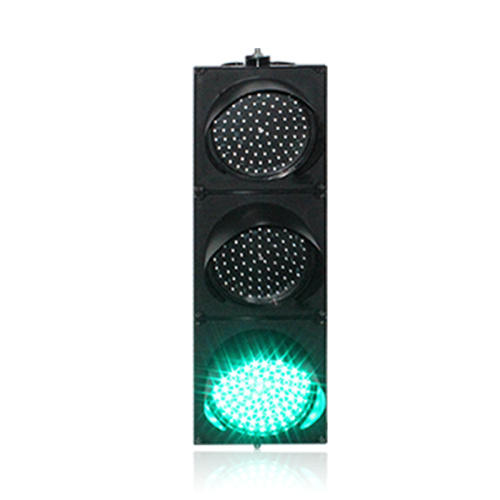

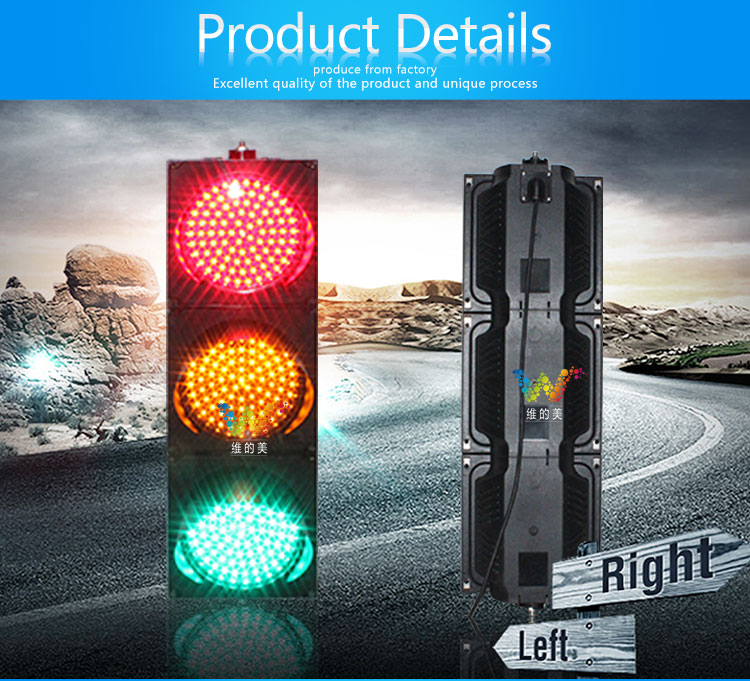

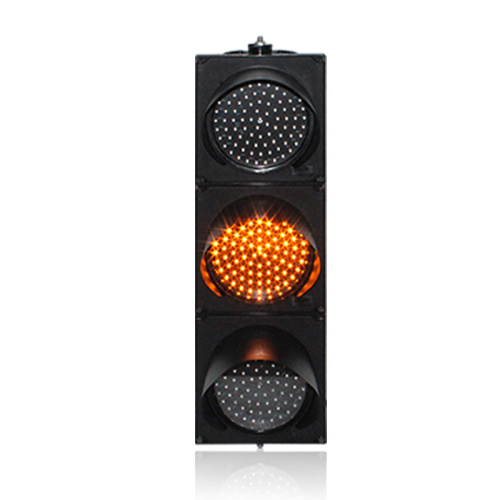

PC material DC12V red yellow green 200mm led traffic light

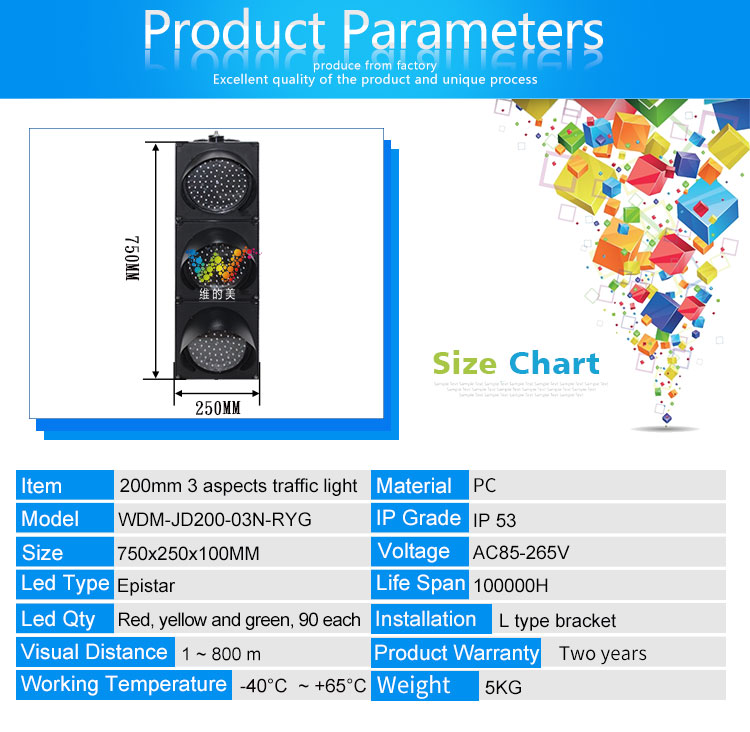

The basic parameters of the full-panel PC material DC12V red yellow green 200mm led traffic light:
Product model: WDM-JD200-3-RYG
1. Product size: 750*250*155MM
2. Lamp beads color: red yellow green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 200MM
5. Number of lamp beads: 90 for red, yellow and green
6. Red wavelength: 620-625NM
7. Yellow wavelength: 590-595NM
8. Green wavelength: 500-505NM (blue-green)
9. Installation method: horizontal or vertical
10. Shell material: PC
11. Working voltage: AC85V-265V a small amount of DC12V/24V
12. Working temperature: -40℃~65℃
13. Protection level: IP53
14. Light angle: 30°
15. Visible distance: ≥1000M
16. Service life: 100000H
17. Rated power: 8W each for red, yellow and green
Features of PC material DC12V red yellow green 200mm led traffic light:
1. The PC material DC12V 200mm led traffic light use Taiwan wafer chip beads, high brightness, high refresh rate, and long service life.
2. The PC material DC12V 200mm led traffic light are designed with outlet holes on the back, which not only facilitates the outlet, but also has a good waterproof effect.

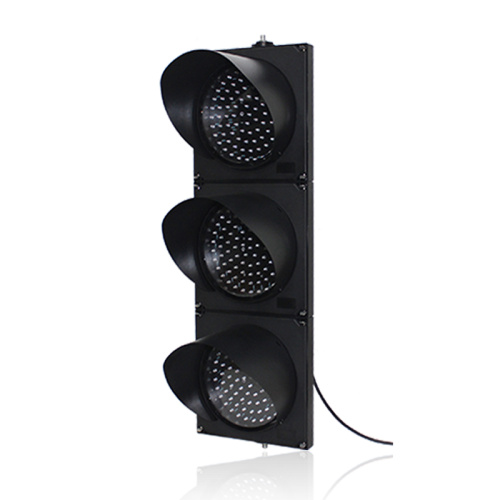

3. The sunshade cover of the PC material DC12V 200mm led traffic light is made of PC material, which has good waterproof and dustproof effects and simple installation.
4. The type PC material DC12V 200mm led traffic light are installed with L-shaped brackets, which is very convenient for assembly.

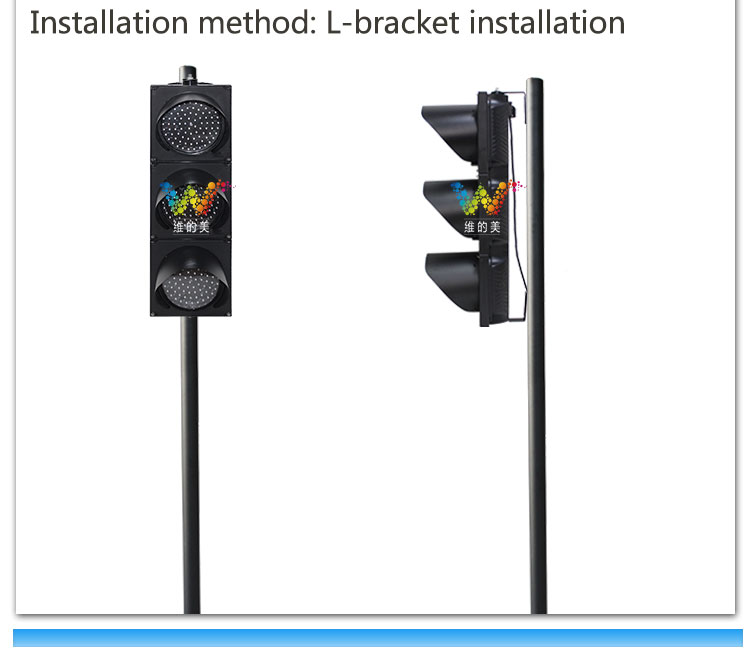

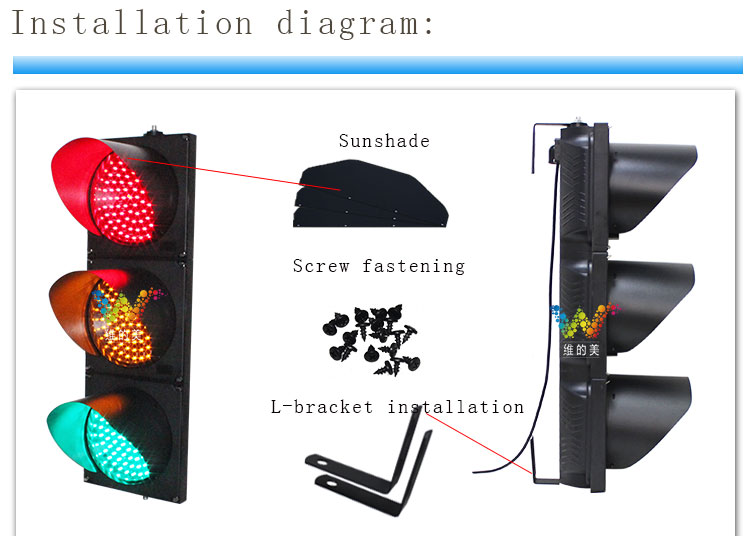

Installation method of PC material DC12V red yellow green 200mm led traffic light:
Installation method: horizontal installation
(1) A screw is left at both ends, unscrew the nut above the screw,
(2) Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut.
(3) The sun visor is installed on the upper part of the lamp, put the sun visor on the lamp, and tighten the screws to the corresponding holes.
(4) Drill two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut.
Installation method: vertical installation
The steps of vertical installation are the same as horizontal installation, just put it upright, pay attention to 2 points:
1. The sun visor is on the upper part of the lamp
2. Outlet hole facing down
Wiring method of 200mm full-panel red yellow green led traffic signal lights:
1. Wiring DC12V/24V:
(1) Red and black wire-red light negative pole;
(2) Red wire-positive electrode;
(3) Yellow wire-yellow lamp negative pole;
(4) Green wire-negative light of green light;
2. Connect to 220V:
(1) Black line-public zero line;
(2) Red line-red light fire line;
(3) Yellow line-yellow light fire line;
(4) Green line-green light fire line;
