200mm Red Green Led Mini Traffic Signal Light

200mm Red Green Led Mini Traffic Signal Light
1. Basic parameters of the 200mm Red Green Led Mini Traffic Signal Light:
Product model: WDM-JD200-2-RG
1. Product size: 500*250*155MM
2. Lamp bead color: red green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 200MM
5. Number of lamp beads: 90 for red and green
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green)
8. Installation method: horizontal or vertical
9. Shell material: PC
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Protection level: IP53
13. Light angle: 30°
14. Visible distance: ≥1000M
15. Service life: 100000H
16. Rated power: 8W each for red and green

Characteristics of 200mm Led Mini Traffic Signal Lights:

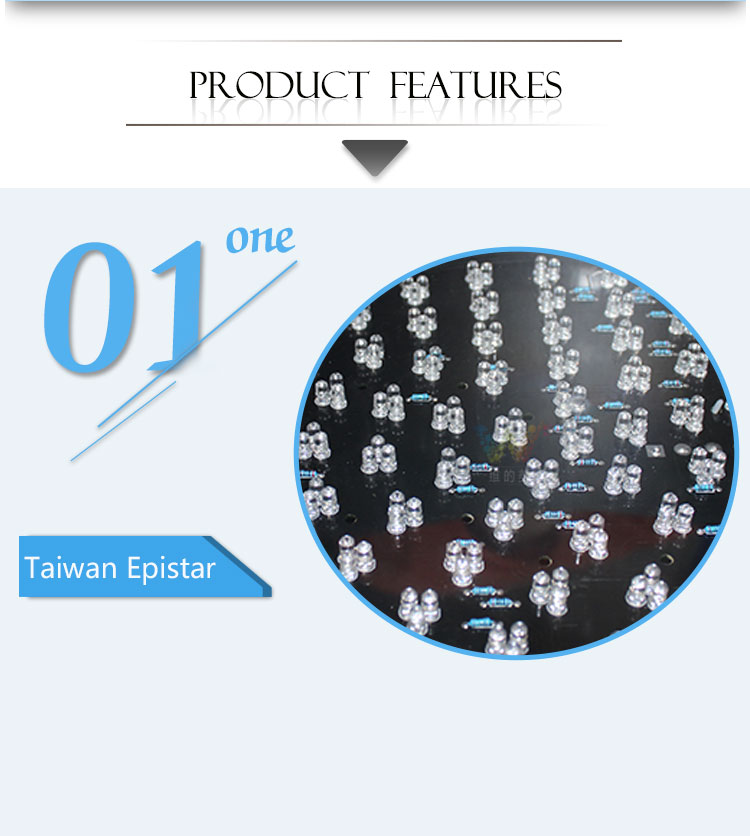

1. The 200mm full-panel red green traffic lights use Taiwan wafer chip beads, high brightness, high refresh rate, and long service life.

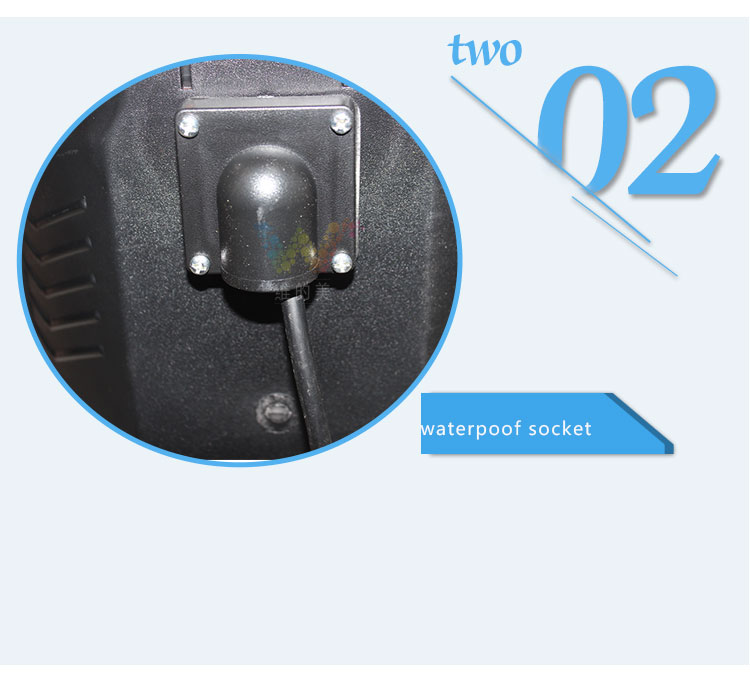

2. The outlet of the 200mm red and green traffic lights is designed with outlet holes, which not only facilitates the outlet, but also has a good waterproof effect.
3. The sunshade cover of the 200mm full-panel red and green lights is made of PC material, which has good waterproof and dustproof effect and simple installation.
4. The 200mm full-panel red and green traffic lights are installed with an L-shaped bracket, which is very convenient for assembly.

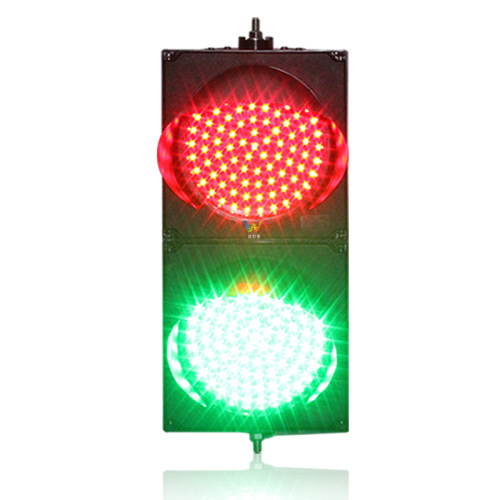

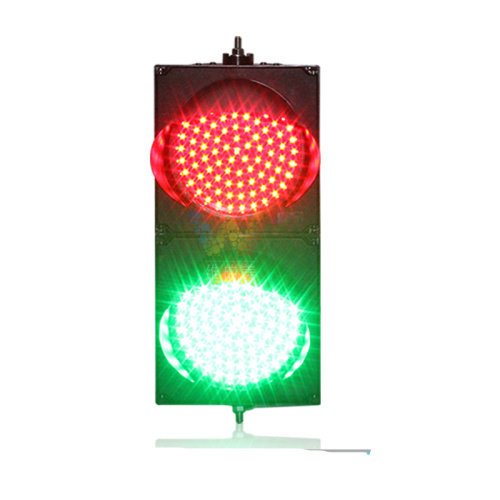

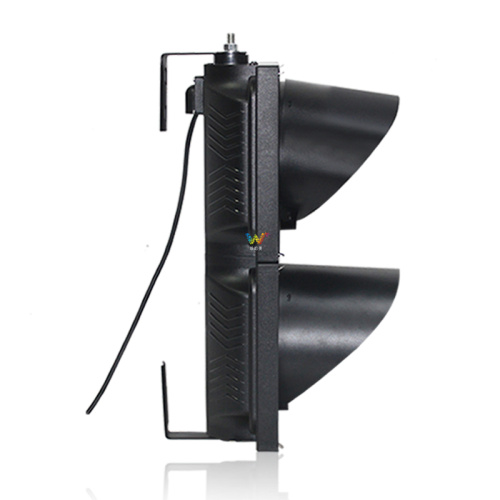

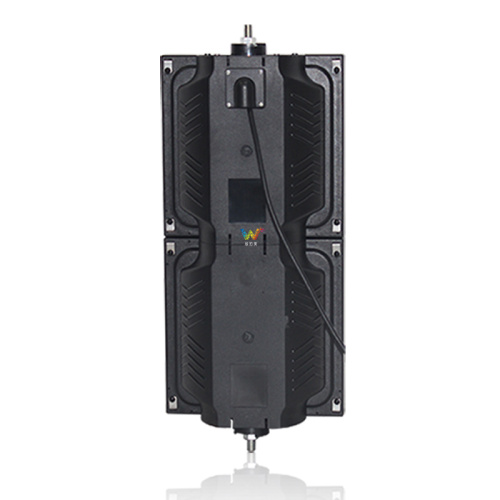

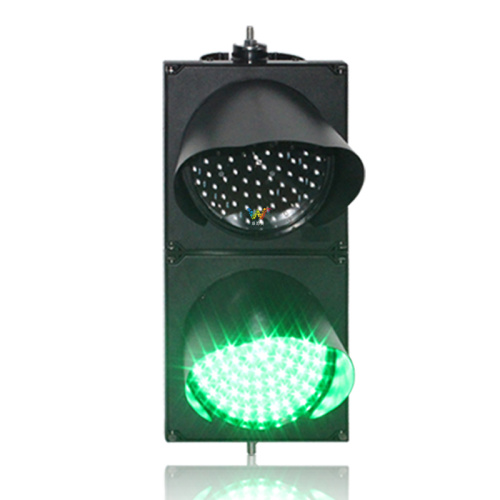

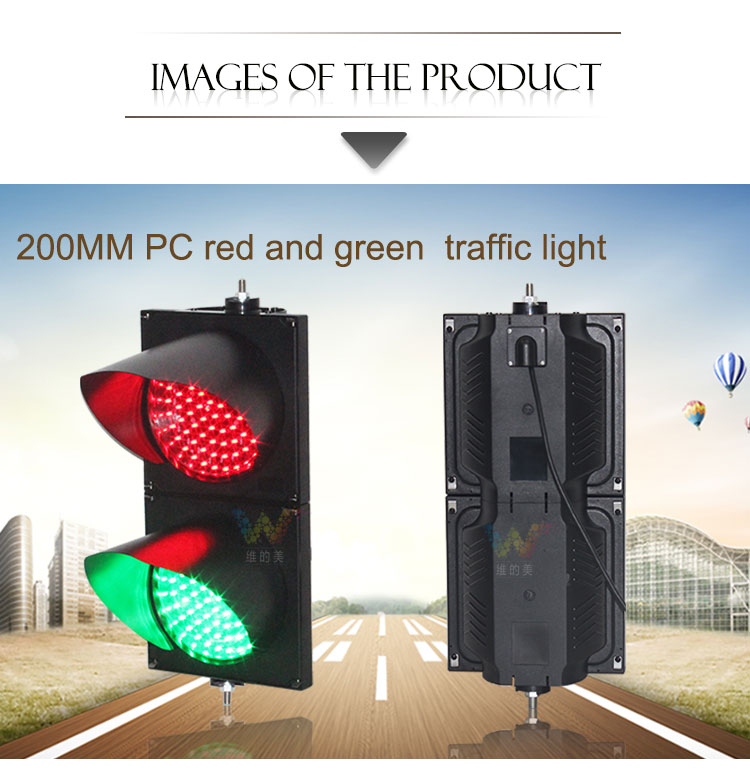

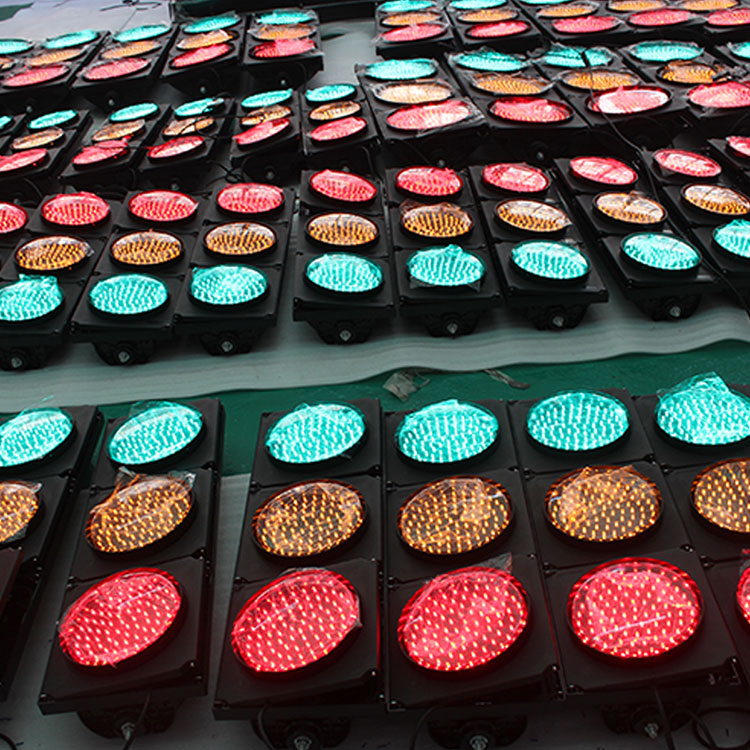

Three, the physical picture of the 200mm traffic lights:

Installation method of 200mm traffic signal lights:
Installation method: horizontal installation
(1) A screw is left at both ends, unscrew the nut above the screw,

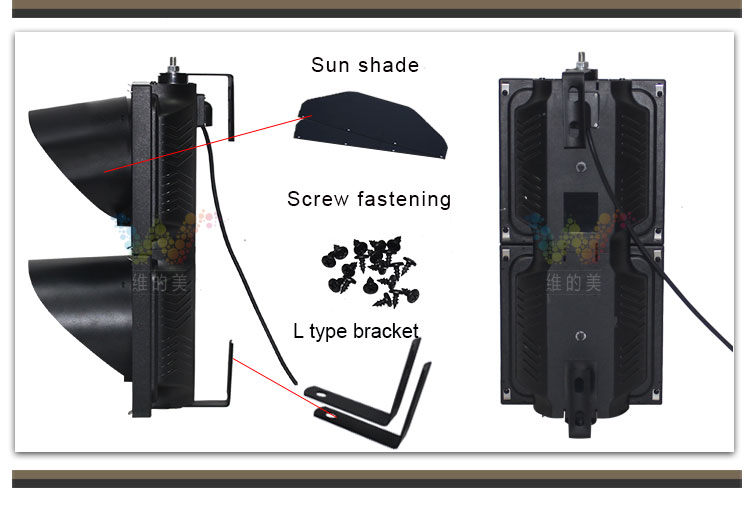

(2) Put the flat end of the "L" bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
(3) The sun visor is installed on the upper part of the lamp, put the sun visor on the lamp, and tighten the screws to the corresponding holes.
(4) Drill two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are the same, just put it upright, pay attention to 2 points:
1. The sun visor is on the upper part of the lamp
2. The outlet hole is facing down (as shown in the figure):

The connection mode of 200mm red and green traffic lights:
1. Wiring DC12V/24V:
(1) Red and black wire-red light negative pole;
(2) Red wire-positive electrode;
(3) Green wire-negative light of green light;
2. Connect to 220V:
(1) Black line-public zero line;
(2) Red line-red light fire line;
(3) Green line-green light fire line;
6. Details of accessories for 200mm full-panel traffic signal lights:
(1) Lamps: 1 set
(2) Sunshade: 2
(3) L-shaped bracket: 2
(4) Instructions: 1 copy
(5) Qualification certificate: 1 copy
(6) M3 screws: 8
7. Packing diagram of 200mm full-plate red and green traffic lights:

In addition to the 200mm Red Green Led Mini Traffic Signal Light, Shenzhen Wide Way Optoelectronics Co., Ltd also produces other types of traffic lights:
1.Small traffic lights;
2.led traffic light controller;
3.solar flashing warning light.

4.led traffic light replacement

5.Mini Traffic Light Module
6.Traffic Light Module
7.Traffic Signal Controller
