Modern decoration pc 125mm led traffic light pole
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Features of Modern decoration pc 125mm led traffic light pole:
1. The Modern decoration pc 125mm led traffic light pole are suitable for kindergarten and elementary school traffic safety education, allowing children to experience it personally, which is more intuitive and has a deeper educational significance.
2. The Modern decoration pc 125mm led traffic light pole adopt the C125MM lamp tube that our company has independently opened the mold, which is moderate in size and unique in shape.
3. The Modern decoration pc 125mm led traffic light pole use Taiwan Epistar chip lamp beads, super high brightness, eye-catching colors, and distinct colors.
4. The Modern decoration pc 125mm led traffic light pole use low-voltage 12V batteries, which is very safe to use.
5. The Modern decoration pc 125mm led traffic light pole are equipped with a special charger, which can be fully charged in 2 hours, which is very convenient to use.
6. The Modern decoration pc 125mm led traffic light pole are equipped with a remote control, which is simple to operate and easy to use.

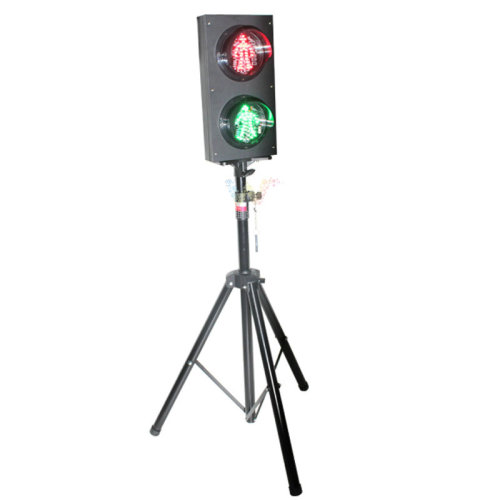

Modern decoration pc 125mm led traffic light pole (with tripod remote control)
The basic parameters of Modern decoration pc 125mm led traffic light pole:
Product model: WDM-RX125-03-RG
1. Lamp size: 420*220*60MM
2. Tripod size: up to 1.8 meters
3. Lamp bead color: red and green
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Luminous diameter: 125MM
6. Number of lamp beads: 34 reds and 41 greens
7. Red wavelength: 620-625NM
8. Green wavelength: 520-525NM (emerald green) 500-505 (blue-green)
9. Working mode: remote control
10. Installation method: vertical installation with tripod
11. Shell material: electrostatic spraying, sheet metal chassis
12. Working voltage: AC85V-265V, a small amount of DC12V/24V
13. Working temperature: -40℃~65℃
14. Protection level: IP53
15. Beam angle: 30°
16. Visual distance: ≥1000M
17. Service life: 100000H
18. Rated power: ≤ 5W
19. Display mode: static red man, dynamic green man
The physical picture of the Modern decoration pc 125mm led traffic light pole:
Installation instructions for Modern decoration pc 125mm led traffic light pole:
1. Installation instructions for pedestrian lights:
(1) Put the bottom of the pedestrian light into the tripod, and then tighten the screw on the back of the pedestrian light.
(2) Take care when using it to prevent children from knocking down and hurting people.
2. Tripod description:
(1) Minimum 1.1 meters
(2) The highest is 1.8 meters (when in use, the highest recommended is 1.6 meters)
(3) Scalable and stowed
(4) It is more stable to press the center point of the base with a heavy object when in use
5. Wiring instructions and details of accessories for 125 type pedestrian two lights:
1. Wiring DC12V/24V:
(1) Black-negative electrode
(2) Red-positive pole
(3) After the power is turned on, press any key on the remote control to turn on the light, and press the remote control to adjust the mode.
2. Wiring 220V:
(1) Black-zero line
(2) Red—FireWire
(3) After the power is turned on, press any key on the remote control to turn on the light, and press the remote control to adjust the mode.
Special attention: This product is for adult use only. When using it, please avoid children's touch. The product is movable to avoid hurting people by tipping over.
2. Description of remote control:
(1) A: Long press for 3 seconds, the red man lights up
(2) B: Long press for 3 seconds, the green man is on
(3) C: Long press for 3 seconds, the pedestrian lights will cycle automatically
(4) D: Off
3. Accessories details:
(1) Pedestrian light: 1 (2) Tripod: 1 (3) Battery: 1 (4) Charger:
(5) Remote control: 1
Install Modern decoration pc 125mm led traffic light pole, simulate teaching traffic lights, and pay attention to when decorating traffic lights:
1. At an intersection with a guide lane, drive into the guide lane according to the required direction of travel;
2. Those who are ready to enter the roundabout let motor vehicles that are already in the intersection go ahead;
3. When turning to the left, turn to the left of the center of the intersection. Turn on the turn signal when turning, and turn on the low beam when driving at night;
4. When meeting the release signal, pass in turn;
5. When the stop signal is encountered, stop outside the stop line one by one. If there is no stop line, stop outside the intersection;
6. When turning right when there is a car in the same lane waiting for the release signal, stop and wait one by one;
7. At intersections with no direction indicator lights, turning motor vehicles let straight vehicles and pedestrians go first. Right-turning motor vehicles traveling in the opposite direction let left-turning vehicles go first.
