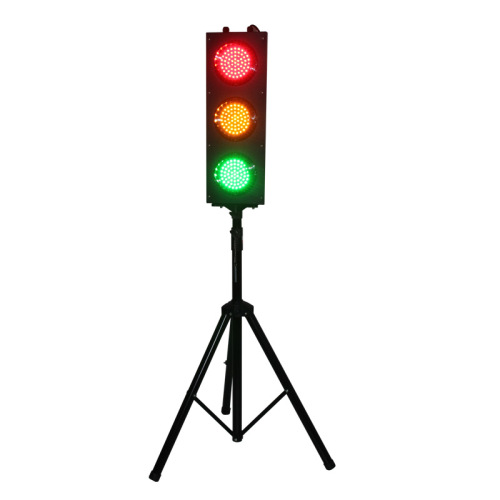

Mini Steel Housing 125mm RYG Traffic Signal Light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
Mini Steel Housing 125mm RYG Traffic Signal Light
The basic parameters of Mini Steel Housing 125mm RYG Traffic Signal Light:
1. Lamp size: 620*220*60MM
2. Tripod size: up to 1.56 meters
3. Lamp bead color: red yellow green
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Luminous diameter: 125MM
6. Number of lamp beads: 60 pieces each in red, yellow and green
7. Red wavelength: 620-625NM
8. Yellow wavelength: 590-595NM
9. Green wavelength: 520-525NM (green) 500-505 (blue-green)
10. Installation method: tripod vertical installation
11. Shell material: electrostatic spraying, sheet metal chassis
12. Working voltage: AC85V-265V a small amount of DC12V/24V
13. Working temperature: -40℃~65℃
14. Protection level: IP53
15. Light angle: 30°
16. Visible distance: ≥1000M
17. Service life: 100000H
18. Rated power: ≤ 5W
1. The Mini Steel Housing 125mm RYG Traffic Signal Light are suitable for traffic safety education in kindergartens and primary schools, with voice broadcasts and traffic safety nursery rhymes, allowing children to experience it for themselves, which is more intuitive and has a more profound educational significance.
2. The Mini Steel Housing 125mm RYG Traffic Signal Light use our self-developed C125MM lamp tube, which is of moderate size and unique shape.
3. The Mini Steel Housing 125mm RYG Traffic Signal Light use Taiwan Epistar chip lamp beads, ultra-high brightness, eye-catching colors and distinct colors.
4. The Mini Steel Housing 125mm RYG Traffic Signal Light use low-voltage 12V batteries, and the electricity is very safe.
5. The Mini Steel Housing 125mm RYG Traffic Signal Light are equipped with special chargers, which can be fully charged in 2 hours, which is very convenient to use.
1. Red, yellow and green three lights installation instructions:
(1) Put the bottom of the traffic lights into the tripod, and then tighten the screws on the back of the pedestrian lights.
(2) Pay attention to protection during use to prevent children from falling down and hurting people.
2. Tripod description:
(1) Minimum 1.1 meters
(2) Maximum 1.56 meters (in use, the maximum recommended 1.4 meters)
(3) Scalable and retractable
1. Wiring DC12V/24V:
(1) Black-negative
(2) Red-positive
(3) After the power is turned on, press any key on the remote control to turn on the light, and press the remote control to adjust the mode.
2. Wiring 220V:
(1) Black-zero line
(2) Red-FireWire
(3) After the power is turned on, press any key on the remote control to turn on the light, and press the remote control to adjust the mode.
Special Note: This product is for adult use only, please pay attention to avoid touching by children, the product is removable, to avoid falling and hurting people.
2. Remote controller description:
(1) A: Press and hold for 3 seconds, the red light is on (simultaneous voice announcement: it is now a red light, no traffic is allowed)
(2) B: Long press for 3 seconds, the yellow light is on (simultaneous voice announcement: it is now a yellow light, please pay attention to traffic)
(3) C: Long press for 3 seconds, the green light is on (simultaneous voice announcement: it is now a green light, please pass quickly)
(4) D: Press and hold for 3 seconds to enter traffic safety nursery rhymes mode, the traffic lights will automatically cycle
3. Accessories details:
China Led Pedestrian Traffic Light
Led Pedestrian Traffic Light
Led Pedestrian Traffic Signal Light
Solar Led Traffic Warning Light
Led Traffic Warning Light
125mm Led Traffic Signal Light
125mm Mini Traffic Light
Customized Traffic Signal Light
The basic parameters of Mini Steel Housing 125mm RYG Traffic Signal Light:
1. Lamp size: 620*220*60MM
2. Tripod size: up to 1.56 meters
3. Lamp bead color: red yellow green
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Luminous diameter: 125MM
6. Number of lamp beads: 60 pieces each in red, yellow and green
7. Red wavelength: 620-625NM
8. Yellow wavelength: 590-595NM
9. Green wavelength: 520-525NM (green) 500-505 (blue-green)
10. Installation method: tripod vertical installation
11. Shell material: electrostatic spraying, sheet metal chassis
12. Working voltage: AC85V-265V a small amount of DC12V/24V
13. Working temperature: -40℃~65℃
14. Protection level: IP53
15. Light angle: 30°
16. Visible distance: ≥1000M
17. Service life: 100000H
18. Rated power: ≤ 5W
19. Working mode: remote control
1. The Mini Steel Housing 125mm RYG Traffic Signal Light are suitable for traffic safety education in kindergartens and primary schools, with voice broadcasts and traffic safety nursery rhymes, allowing children to experience it for themselves, which is more intuitive and has a more profound educational significance.
2. The Mini Steel Housing 125mm RYG Traffic Signal Light use our self-developed C125MM lamp tube, which is of moderate size and unique shape.
3. The Mini Steel Housing 125mm RYG Traffic Signal Light use Taiwan Epistar chip lamp beads, ultra-high brightness, eye-catching colors and distinct colors.
4. The Mini Steel Housing 125mm RYG Traffic Signal Light use low-voltage 12V batteries, and the electricity is very safe.
5. The Mini Steel Housing 125mm RYG Traffic Signal Light are equipped with special chargers, which can be fully charged in 2 hours, which is very convenient to use.
6. The Mini Steel Housing 125mm RYG Traffic Signal Light are equipped with a remote control, which is easy to operate and easy to use.
Three, the physical picture of Mini Steel Housing 125mm RYG Traffic Signal Light:
1. Red, yellow and green three lights installation instructions:
(1) Put the bottom of the traffic lights into the tripod, and then tighten the screws on the back of the pedestrian lights.
(2) Pay attention to protection during use to prevent children from falling down and hurting people.
2. Tripod description:
(1) Minimum 1.1 meters
(2) Maximum 1.56 meters (in use, the maximum recommended 1.4 meters)
(3) Scalable and retractable
(4) When using it, the center point of the base is firmly pressed with a heavy object
1. Wiring DC12V/24V:
(1) Black-negative
(2) Red-positive
(3) After the power is turned on, press any key on the remote control to turn on the light, and press the remote control to adjust the mode.
2. Wiring 220V:
(1) Black-zero line
(2) Red-FireWire
(3) After the power is turned on, press any key on the remote control to turn on the light, and press the remote control to adjust the mode.
Special Note: This product is for adult use only, please pay attention to avoid touching by children, the product is removable, to avoid falling and hurting people.
2. Remote controller description:
(1) A: Press and hold for 3 seconds, the red light is on (simultaneous voice announcement: it is now a red light, no traffic is allowed)
(2) B: Long press for 3 seconds, the yellow light is on (simultaneous voice announcement: it is now a yellow light, please pay attention to traffic)
(3) C: Long press for 3 seconds, the green light is on (simultaneous voice announcement: it is now a green light, please pass quickly)
(4) D: Press and hold for 3 seconds to enter traffic safety nursery rhymes mode, the traffic lights will automatically cycle
3. Accessories details:
(1) Red, yellow and green lights: 1
(2) Tripod: 1
(3) Battery: 1
(4) Charger:
(5) Remote control: 1
