SINOFUJI Silicone Rubber Overhead Electrical Line Cover
Your message must be between 20 to 2000 characters
Contact NowSINOFUJI Silicone Rubber Overhead Electrical Line Cover

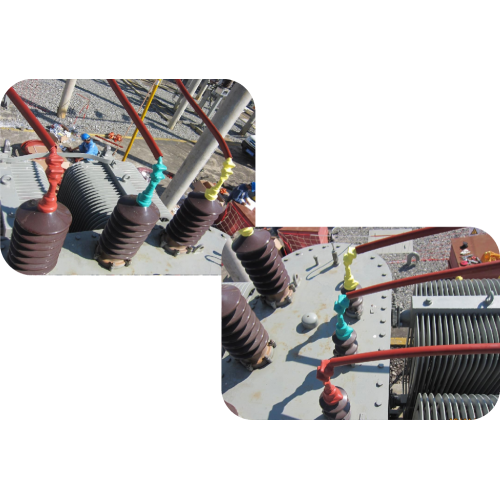

The innovative product design, ease of installation. Use silicon rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Widely used in substation protection works and railway system, a significant effect in the cross-lines.
| Serial No. | Properties | Unit | Standard Data | Test Results | Test Methods |
| 1 | Electrical Strength Test | kV/mm | ≥20 | 22 | GB/T 1408.1-2006 |
| 2 | Volume Resistivity | Ω·cm | ≥1×1014 | 2×1014 | GB/T 1410-2006 |
| 3 | Dielectric Constant | 2~3 | 2.3 | GB/T 1409-2006 | |
| 4 | Shore Hardness | A | 70±5 | 71 | GB/T 531 |
| 5 | Mechanical Properties | GB/T 528 | |||
| 5.1 | Before heat ageing | ||||
| Tensile Strength | MPa | ≥4.0 | 5.5 | ||
| Elongation at break | % | ≥200 | 243 | ||
| 5.2 | After Heat ageing(180ºC, 7d) | % | ±30 | 13 | |
|
Tensile Strength Change Elongation Change |
% | ±30 | -22 | ||
| 6 | Low Temperature Elongation(-15ºC, 2h) | % | ≥20 | 190 | GB/T 2951.4-1997 |
| 7 | Low Temperature Flexibility(-50ºC, 4h) | - | No cracks | No cracks | UL224-2004 |
| 8 | High Temperature Crack Resistance(155ºC, 2h) | - | No cracks | No cracks | GB/T2951.6-1997 |
| Voltage(KV) | ≤10KV | ≤35KV | ≤110KV | ≤220KV |
| Thickness | 2.0±0.3mm | 3.0±0.4mm | 4.0±0.5mm | 6.0±1.0mm |
Dimension
|
LJ Stranded Wire Cross-sectional Area(Nominal) |
O.D. Of LJ Stranded Wire(mm) |
Silicone Rubber Sleeving Covers Models(mm) |
|
50 |
9.00 |
12 |
|
70 |
10.80 |
12 |
|
95 |
12.48 |
17 |
|
120 |
14.25 |
17 |
|
150 |
15.75 |
20 |
|
185 |
17.50 |
20 |
|
210 |
18.75 |
24.2 |
|
240 |
20.00 |
24.2 |
|
300 |
22.40 |
24.2 |
|
400 |
25.90 |
30 |
|
500 |
29.12 |
32 |
|
630 |
32.67 |
35 |
|
800 |
36.90 |
39.8 |
|
LGJ Stranded Wire& LGJF Stranded Wire Cross-sectional Area(Nominal) |
O.D. Of LJ Stranded Wire(mm) |
Silicone Rubber Sleeving Covers Models(mm) |
|
35 |
-- |
12 |
|
50 |
-- |
15.6 |
|
70/10 |
11.4 |
17 |
|
70/40 |
13.6 |
17 |
|
95/15 |
13.61 |
17 |
|
95/20 |
13.87 |
17 |
|
95/55 |
16 |
17 |
|
120/7 |
14.5 |
20 |
|
120/20 |
15.07 |
20 |
|
120/25 |
15.74 |
20 |
|
120/70 |
18 |
20 |
|
150/8 |
16 |
20 |
|
150/20 |
16.67 |
20 |
|
150/25 |
17.1 |
20 |
|
150/35 |
17.5 |
20 |
|
LGJJ-120 |
15.5 |
20 |
|
LGJJ-150 |
17.5 |
20 |
|
LGJQ-150 |
16 |
20 |
|
185/10 |
18 |
24.2 |
|
185/25 |
18.9 |
24.2 |
|
185/30 |
18.88 |
24.2 |
|
185/45 |
19.6 |
24.2 |
|
210/10 |
19 |
24.2 |
|
210/25 |
19.98 |
24.2 |
|
210/35 |
20.38 |
24.2 |
|
210/50 |
20.86 |
24.2 |
|
240/30 |
21.6 |
24.2 |
|
240/40 |
21.66 |
24.2 |
|
240/55 |
22.4 |
24.2 |
|
LGJJ-185 |
19.6 |
24.2 |
|
LGJJ-240 |
22.4 |
24.2 |
|
LGJQ-185 |
18.4 |
24.2 |
|
LGJQ-240 |
21.6 |
24.2 |
|
400/20 |
26.91 |
32 |
|
400/25 |
26.64 |
32 |
|
400/35 |
26.82 |
32 |
|
400/50 |
27.63 |
32 |
|
400/65 |
28 |
32 |
|
400/95 |
29.14 |
32 |
|
500/35 |
30 |
32 |
|
500/45 |
30 |
32 |
|
500/65 |
30.96 |
32 |
|
800/55 |
38.4 |
39.8 |
|
800/70 |
38.58 |
39.8 |
|
800/100 |
38.58 |
39.8 |
