industry cylinder sewing machine
$1200.00 - $12000.00/Set/Sets
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean
- Port:
- Yantian
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 3000sets /month |
| Supply Ability: | 3000sets |
| Payment Type: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 CE |
| HS Code: | 8452219000 |
| Transportation: | Ocean |
| Port: | Yantian |
Product Description
Product Description

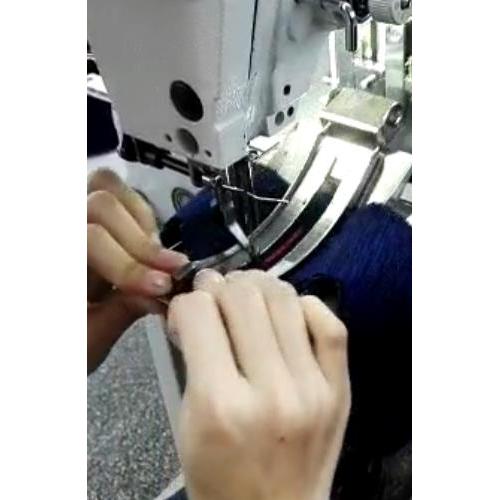

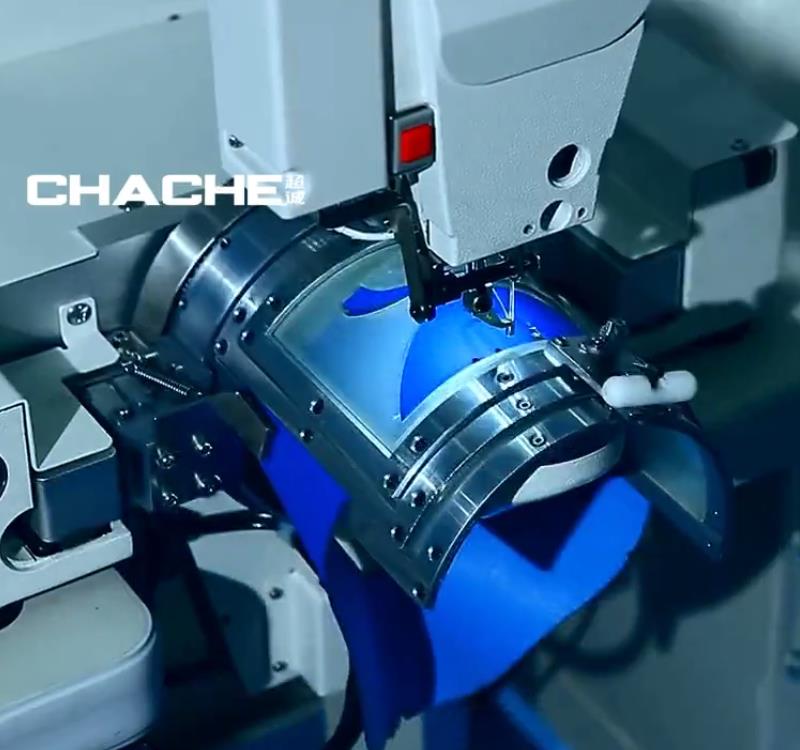

This shoe sewing machine is specialized in making the sneaker or other footwear, with the patent of Chache industrial sewing machine
- The maximum sewing area can reach 25*16cm
- Innovative design, high efficiency and stable working
- Wide range application, easy operation
- 7" LCD touch panel control (optional)
- Arc sewing Stepper motor control of shoe sewing machine
- Low noise, with the -84dbw when the sewing speed at 2000rpm
| Model | CC-2210G-01A-3D | ||
| Sewing area | Max.22×10cm | ||
| Line | single needle sewing | ||
| Highest sewing speed | 2700rpm | ||
| Feeding device | Intermittent feeding (pulse motor driven mechanism) | ||
| Stitch length | 0.05-12.7mm | ||
| Max.stitches | 20,000 stitches/pattern | ||
| Work clamp lifter | pnuematic (height:max.30mm) | ||
| Clamp lifter | divided foot pedals | ||
| Clamp lifter ascensional range | 22mm | ||
| Hook | double shuttle hook | ||
| Tension device | electric tension device | ||
| Data storage | USB or Memory card(CF card can save and edit any sewing patterns) | ||
| Motor | AC servo motor 550W | ||
| Air pressure | 0.5Mpa 1.8L/min | ||
| Net weight | 220kg | ||
| Gross weight | 290kg | ||
| Packing | 125*90*135cm | ||
| CBM | 1.52m³ | ||
