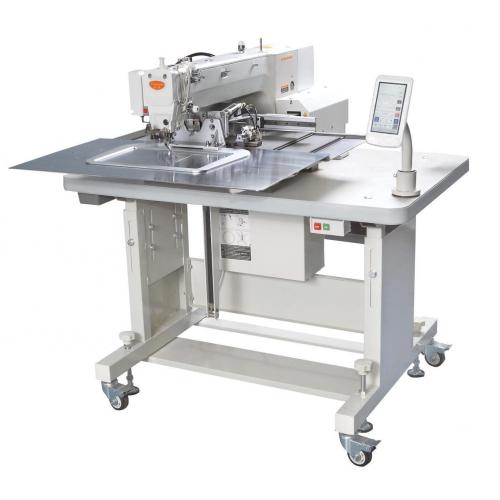

Industrial leather seaming machine
  • Industrial leather seaming machine
Industrial leather seaming machine

Industrial leather seaming machine

Payment Type:
L/C, T/T, Money Gram, Western Union
Incoterm:
FOB, CFR, CIF, EXW
Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Delivery Time:
10 Days
Transportation:
Ocean, Land, Air
Port:
Yantian
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 3000sets /month
Supply Ability: 3000sets
Payment Type: L/C,T/T,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Certificate: ISO9001 CE
HS Code: 8452219000
Transportation: Ocean,Land,Air
Port: Yantian
Product Description
Product Description

 Industrial automatic sewing machine good at sewing the heavy duty, when the thickness of the fabric changes, the intermittent pressure foot always presses a certain intermittent pressure action because the intermittent pressure foot rise can be switched. This prevents the foot from being raised too high or too low, thus achieving consistent stitching of the upper and lower lines. No tool is required to enter a value on the panel or in the program to set the amount of foot pressure rise. In addition, depending on the sewing procedure, the user program can be used to set the height of the intermittent foot to the desired height.

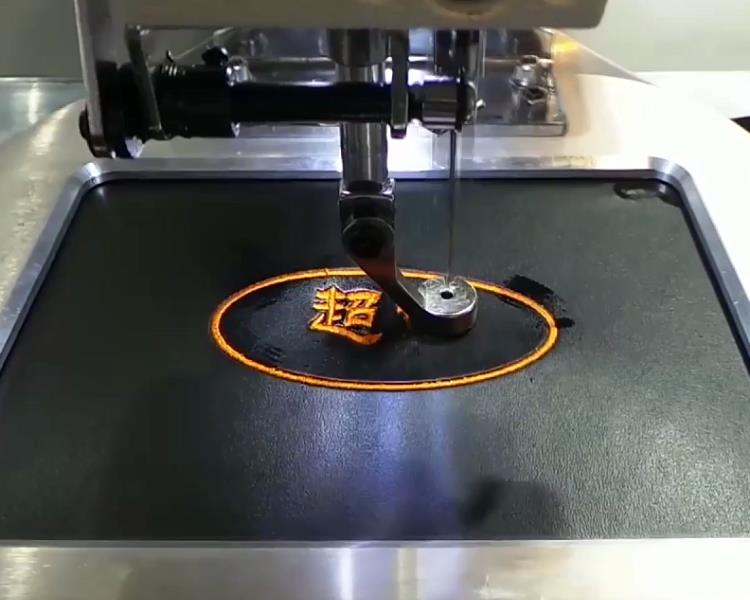

Computerized sewing machine specialized in heavy duty thread sewing on leather or tough fabric sewing, such leather sewing machine is automatic sewing after  inputting the sewing patterns.

  • This industrial sewing machine compatible with Brother system, with large sewing area.
  • Pneumatic foot presser driving mode.
  • Computerized pattern edit
  • High efficient sewing, and perfect sewing quality make this model the best selling in Chache sewing machines
  • Beefed-up needle penetration force.


Model CC-3020G-01A
Sewing area Max.30×20cm
Line single needle sewing
Highest sewing speed 2700rpm
Feeding device Intermittent feeding (pulse motor driven mechanism)
Stitch length 0.05-12.7mm
Max.stitches 20,000 stitches/pattern
Work clamp lifter pnuematic (height:max.30mm)
Clamp lifter divided
Clamp lifter ascensional range 22mm
Hook double shuttle hook
Tension device electric tension device
Data storage USB or Memory card(CF card can save and edit any sewing patterns)
Motor AC servo motor 550W
Air pressure 0.5Mpa 1.8L/min
Net weight 220kg
Gross weight 290kg
Packing  126*126*135cm
CBM 2.14m³




Shenzhen Chaocheng Sewing Technology Co., Ltd, located in the beautiful and prosperous area of Shenzhen. It is a high technology enterprise in the field of industrial automatic special sewing machine with self-developing & Researching, manufacturing, sales marketing and after-sales servicing. Chaocheng is a leading manufacturer for automatic sewing machines. It successively produced Chaocheng brand Bar Tacking Sewing Machine CC-430D\CC-438D;Pattern Sewing Machine fromCC-1010G to CC-6040G-01A; Eyelet Button Holing Machine ; Automatic  Pattern Sewing Machine, Automatic Double needle Loop Attaching Machine, Shoe sewing Machine, Automatic bra sewing Machine and a series of advanced high technology products. Meanwhie, we developed the new department for mask making machines in 2020, full-automatic surgical mask making machine, semi-automatic mask making machine, mask blanking machine, mask earloop welding machine, mask edge sealing machine.

Chaocheng always provide professional solution to customer's specific production, which obtained high reputation from customers both in domestic market and abroad. Chairman of the board Mr. Zhang put forward the company culture as "People-oriented, Precious Harmony, Efficiency First"  Chaocheng is constantly improving its company management system, enhancing group cohesiveness, building strategic cooperation with customers. It lays a solid foundation for company's sustainable development. Adhering to the "customer first, forge ahead" business philosophy, Chaocheng is committed to satisfying our customer's needs, expectations and requirements. Company accomplish this by delivering good quality products, and continuously improving the effectiveness of our quality management system. Our goal is to deliver a defect-free product on-time, with value and service second to none.
