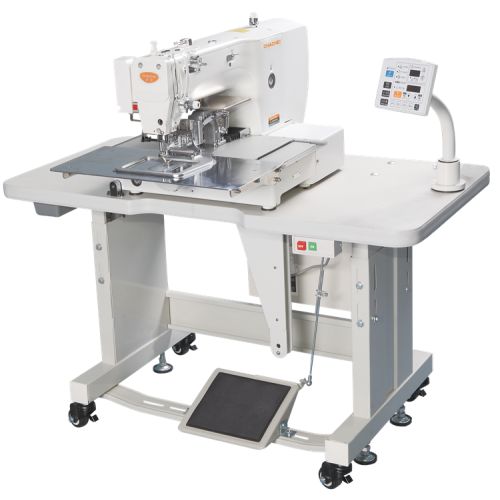

industrial sewing machine for label sewing

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	3000sets /month
Supply Ability:	3000sets
Payment Type:	L/C,T/T,D/P,Money Gram,Western Union
Incoterm:	FOB,CFR,EXW
Certificate:	ISO9001 CE
HS Code:	8452219000
Transportation:	Ocean,Land,Air
Port:	Yantian

Product Description

Industrial sewing machine with High productivity and good quality sewing
the sewing area is 15*10CM. Quick and easy pattern edit,compatible with brother system
Strong needle penetration, and needle breakage prevention function
LCD touch panel control system (optional)
adopted energy saving technology for low comsumption and environmental protection.
Latest double action thread trimming device enhances the sewing quality, reduces the bird's nest.
Multi-use in label sewing,velcro sewing,braid sewing,etc.
It suitable for heavy fabric sewing (leather, thick fabric etc)
Double shuttle hook, automatic thread break detector.
Automatic feeding device with the rail system, precise sewing.
Shoe sewing machine, leather sewing machine, industrial sewing machine, computerized sewing machine, footwear sewing machine, automatic sewing machine

Model	CC-1010G-01S	CC-1310G-01S	CC-1510G-01S
Sewing area	Max.10×10cm	Max.13×10cm	Max.15×10cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pulse motor drive (height:max.30mm)
Clamp lifter	2 steps, all in one
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	160kg
Gross weight	208kg
Packing	12585135cm
CBM	1.44m³
