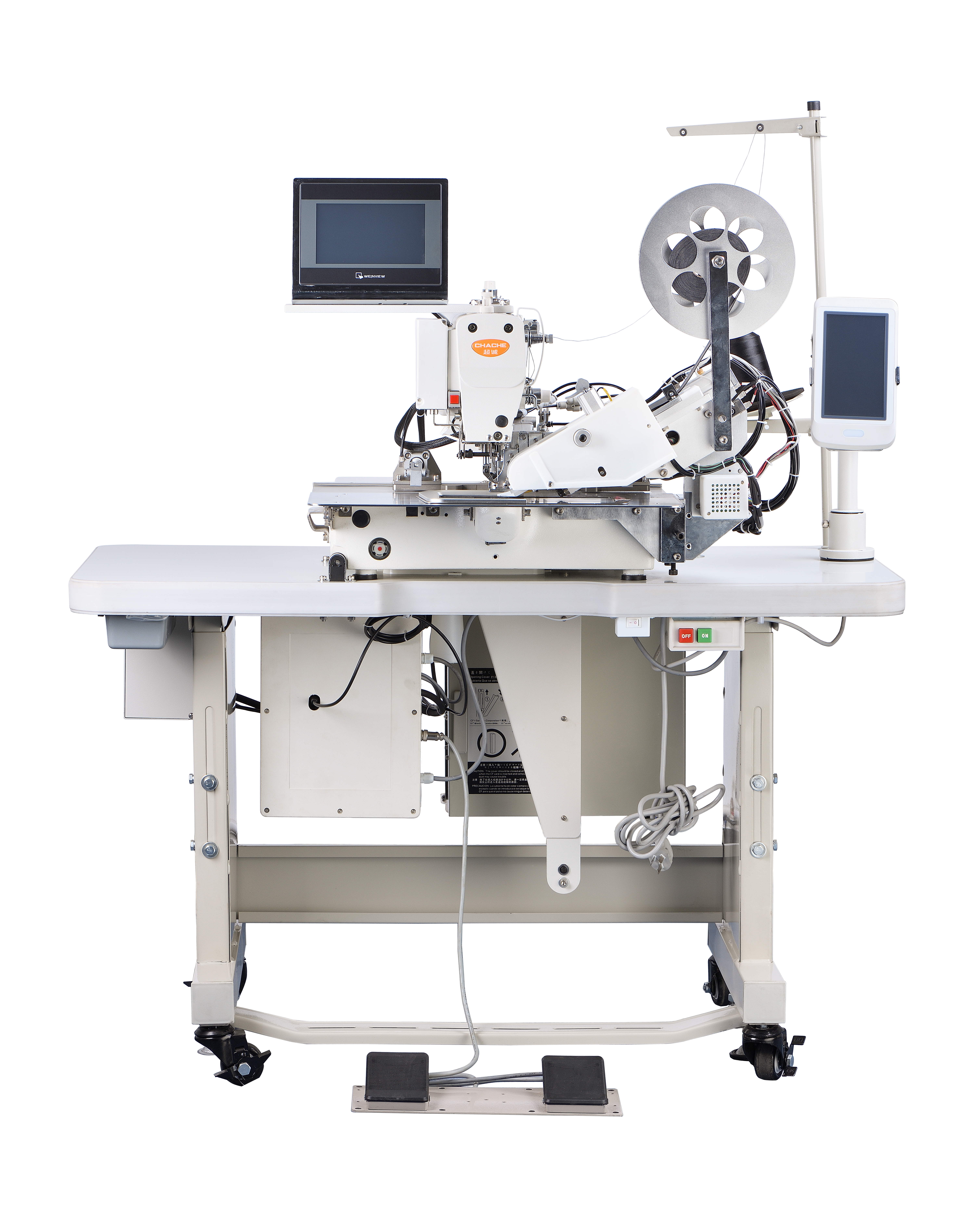

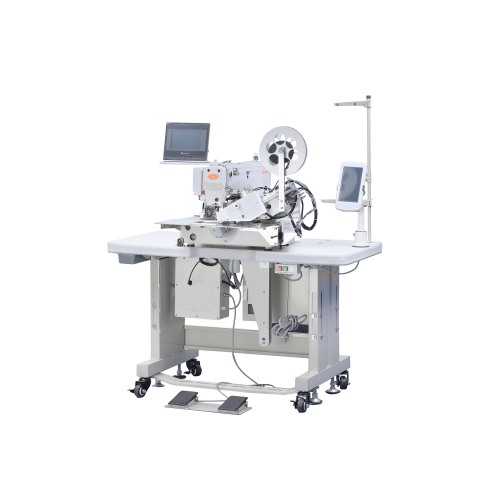

Industrial shoe automatic sewing machine

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Industrial sewing machine specialized in the webbing sewing on the shoes, the webbing feeding, cutting and sewing automatically

Automatic sewing machine with PD-3000 operation controller and 7" color LCD touch control panel optional
Industrial sewing machine with thread take-up device, stable sewing from top to bottom line, expand the thread clamp device working range
Intermittent presser foot amount can be ajusted automatically as per fabric thickness
Input the data from control panel or program to set the presser foot lifting amout

Model	CC-2210G-01A
Sewing area	Max.22×10cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	divided
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Tension device	electric tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	160kg
Gross weight	208kg
Packing	12585135cm
CBM	1.44m³
