programmable shoe making machine

$6000.00

10-19 Bag/Bags
$5800.00

≥20 Bag/Bags

Transportation:: Ocean

Port:: Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	3000sets /month
Supply Ability:	3000sets
Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001 CE
HS Code:	8452219000
Transportation:	Ocean
Port:	Yantian

Product Description

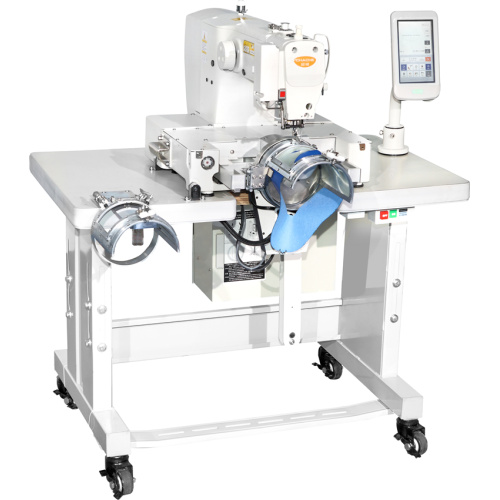

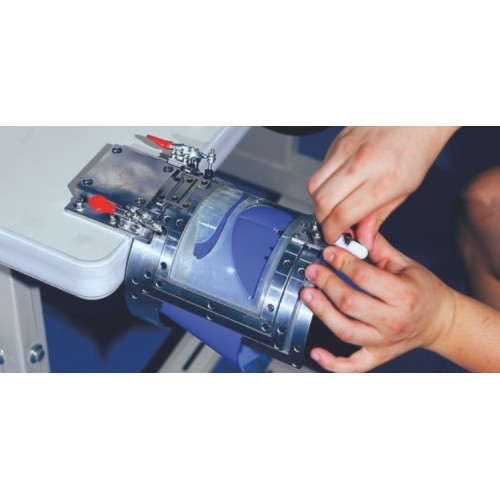

Shenzhen Chaocheng automatic shoe heel sewing machine is automatic sewing machine is applied to making cap visor and shoe heel sewing, this industrial sewing machine is designed by our factory.

The maximum sewing area can reach 25*16cm
Innovative design, high efficiency and stable working
Wide range application, easy operation
7" LCD touch panel control (optional)
Arc sewing Stepper motor control of shoe sewing machine
Low noise, with the -84dbw when the sewing speed at 2000rpm

Model	CC-2210G-01A-3D
Sewing area	Max.22×10cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	divided foot pedals
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Tension device	electric tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	220kg
Gross weight	290kg
Packing	12590135cm
CBM	1.52m³
