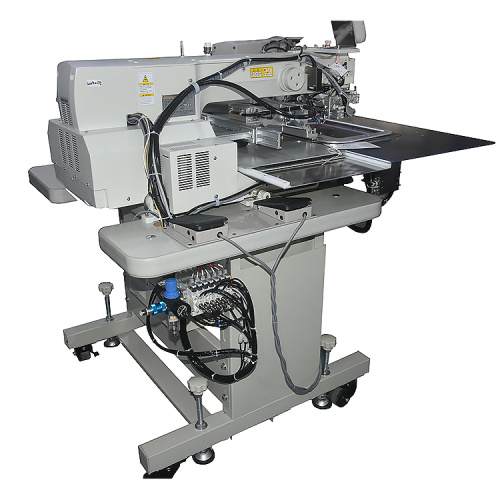

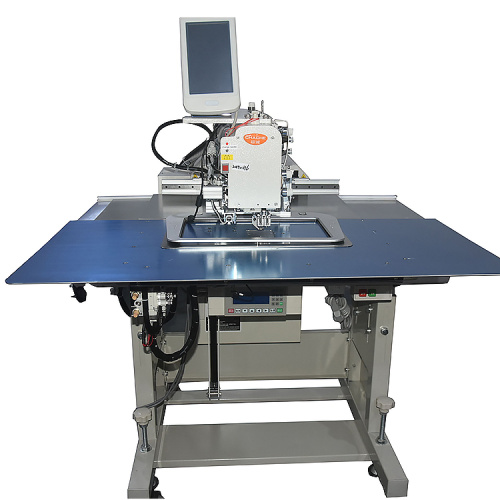

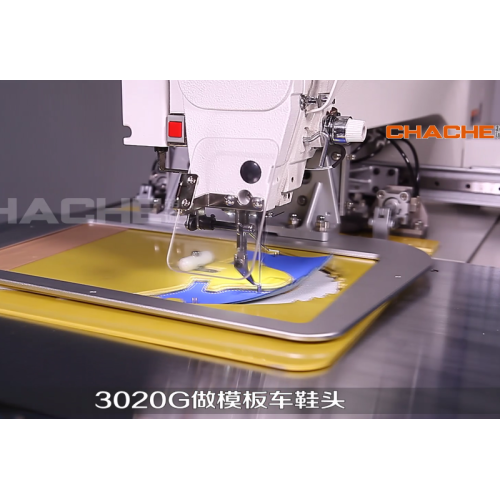

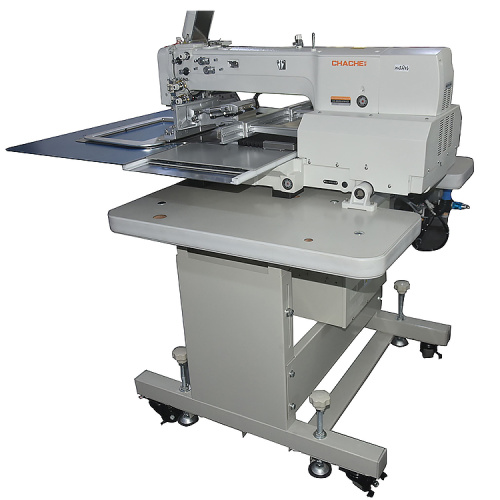

Shoe making machine for automatic sewing shoe vamp
-
$5500.001-4 Set/Sets
-
$4800.00≥5 Set/Sets
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 3000sets /month |
| Supply Ability: | 3000sets |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 CE |
| HS Code: | 8452219000 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian |
- Computerized electric pattern sewing machine with 2 needles, it support 2 colors sewing threads
- Automatically switching the needles
- high speed sewing,low power consumption, improve the producivity and excellent sewing quality
- It suitable for heavy fabric sewing (leather, thick fabric etc) and compatible with the brother sewing machine
- Automatic sewing for the recycling mask
- Double shuttle hook, automatic thread break detector.
| Model | CC-3020G-01A-C2 | ||
| Sewing area | Max.30×20cm | ||
| Line | 2 needles forward sewing with dual colors | ||
| Highest sewing speed | 2700rpm | ||
| Feeding device | Intermittent feeding (pulse motor driven mechanism) | ||
| Stitch length | 0.05-12.7mm | ||
| Max.stitches | 20,000 stitches/pattern | ||
| Work clamp lifter | pnuematic (height:max.30mm) | ||
| Clamp lifter | divided | ||
| Clamp lifter ascensional range | 22mm | ||
| Hook | double shuttle hook | ||
| Tension device | electric tension device | ||
| Data storage | USB or Memory card(CF card can save and edit any sewing patterns) | ||
| Motor | AC servo motor 550W | ||
| Air pressure | 0.5Mpa 1.8L/min | ||
| Net weight | 220kg | ||
| Gross weight | 290kg | ||
| Packing | 126*126*135cm | ||
| CBM | 2.14m³ | ||
Packaging & Shipping
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.
Q5: How can I place the order?
A5: First sign the PI, and pay deposit, then we will arrange the production. After finished production, you need to pay the balance. Finally we will ship the machines to you.
Q6: What information shall we give before placing a purchase order?
A6: a)Type of sewing machine, automatic or semi-automatic etc. b) let us know your application, jeans, shoes, handbags etc. c) Purchase quantity. d) Other special requirements.
Q7:How to choose machines which meets our applications?
A7:You can refer to our catalogue to choose the machine or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.
-
