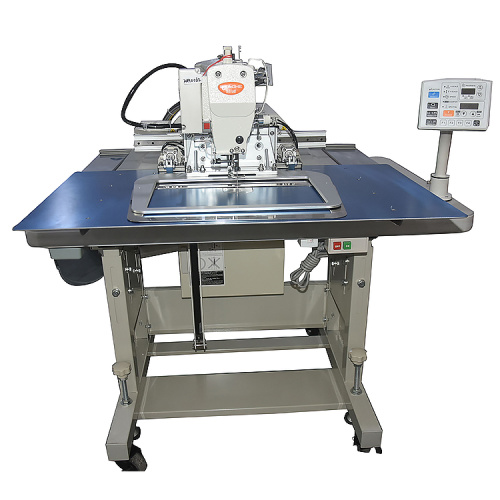

industry automatic sewing machine

Get Latest Price

Payment Type:: L/C

Incoterm:: FOB, CFR, CIF, EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Port:: Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000sets /month
Supply Ability:	1000pcs
Payment Type:	L/C
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001 CE
HS Code:	8452219000
Transportation:	Ocean,Land,Air
Port:	Yantian

Product Description

the template device with automatically identify sewing pattern by scanning the barcode is optional
LCD touch panel control system (optional)
adopted energy saving technology for low comsumption and environmental protection.
Latest double action thread trimming device enhances the sewing quality, reduces the bird's nest.
Multi-use in shoe upper sewing, shoe-pad sewing,leather sewing, label sewing,velcro sewing,braid sewing,etc.

Shoe sewing machine, leather sewing machine, industrial sewing machine, computerized sewing machine, footwear sewing machine, automatic sewing machine

Model	CC-3525G-01A
Sewing area	Max.35×25cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	all in one
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Tension device	electric tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	220kg
Gross weight	290kg
Packing	126126135cm
CBM	2.14m³
