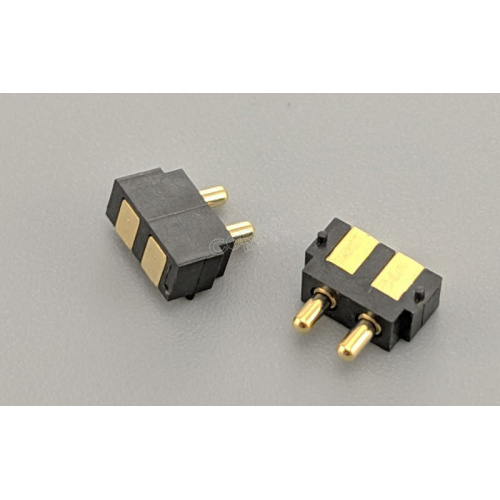

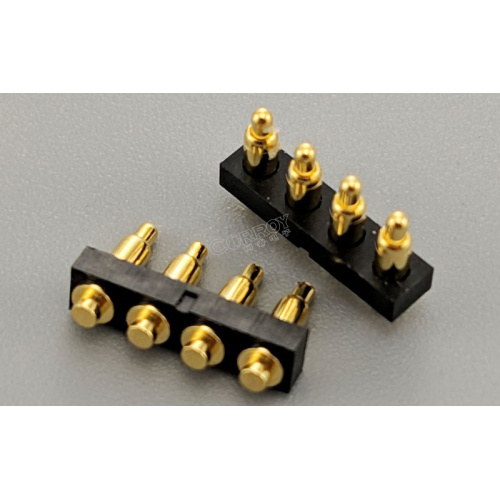

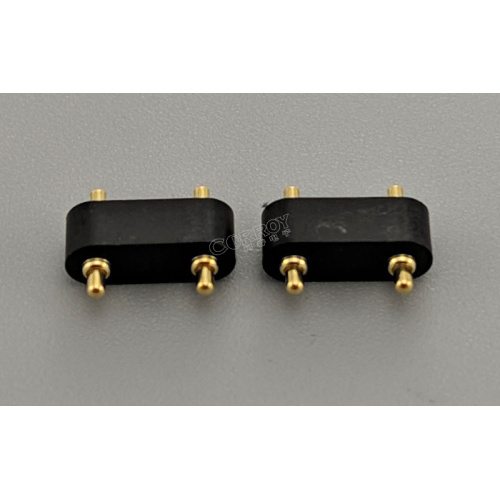

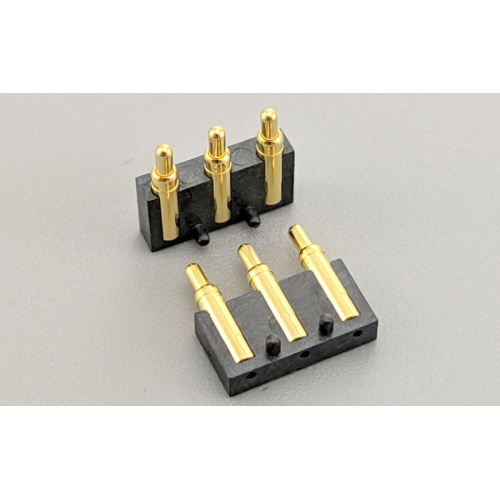

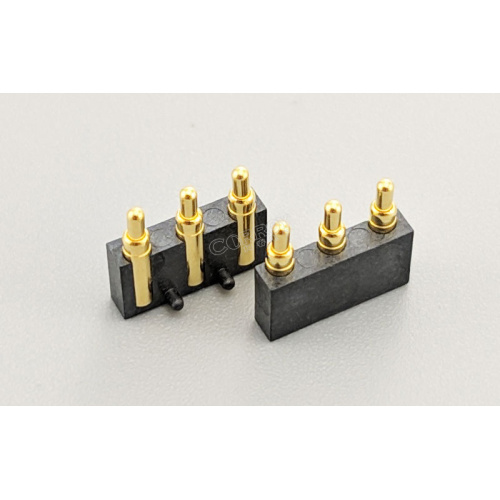

Magnetic Connector Pogo Pin Connector

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

We are committed to pogo pin connectors to provide customers in consumer electronic products (such as mobile phones, watches, Bluetooth headsets, tablets, game consoles, toys, etc.), medical care, automobiles, industrial communications, computer peripherals, new energy, military and other fields Customized products and services. R & D design, manufacturing. The company’s core employees, including product R&D engineers and equipment process development engineers, have more than 10 years of rich work experience in the pogo pin connector field. The pogo pin connector designed and developed by the company has a small size (currently it can achieve a diameter of 0.28 mm effectively reduces the use space), large current, strong contacts, beautiful appearance and stable performance. At the same time, it also has short development and delivery cycles, high quality, and high price.

Notes:

1 Materal
Housing:HTN+30%GF(UL94V-0),BIack
Plunge r:brass3604
Barrel: brass3604
Spring:SUS304
2 Plating
Plunger:10 Micro inch minimum Au over 70-120 Micro inch nickel
Barrel:10 Micro inch minimum Au over 70-120 Micro inch nickel
3 Electrical
Rated current & Voltage:DC5V/1A(Max imum)
Contact Resistance:80 milliohm maximum at work ing height(Quiescence)
4 Mechanical
Normal force:0g+15g at normal working height
Durabili ty10.0000 Cycles(mi nimum)
5 When the current is greater than 1A then need to increase the time
delayci rcuit(3second)
6 To ensure the best usage,please operate it based on the working height
Once open the seal,please use it within one week or repackage it
Based on the engineering drawings,shall ont exceed the max imum al lowed compression
7 Mark is Major Dimension .
8 Products comply with RoHs & HF standards
