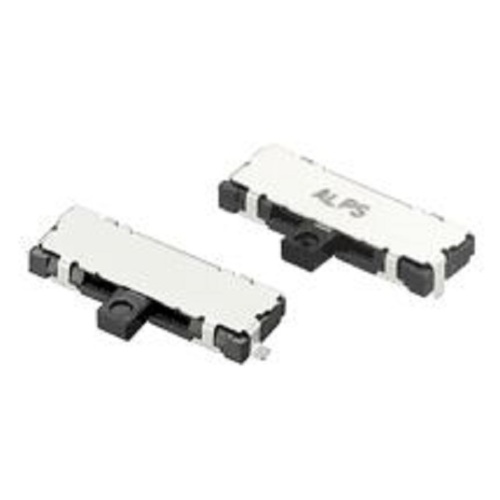

Slide Switch that Bounces Back on the Right

This product has a familiar product called SSAG230200, 230200 has positioning pins, you can choose the right product according to your actual situation. This product is a long-life spring-back type, which can meet the needs of thin and miniaturization.

Product number:SSAG230100

Stroke:1.5mm

Operation direction:Horizontal

Number of circuits:1

Number of contacts:3

Action:1N (rebound), 1.5N (lock side)

Switching time limit:Not specified

Welding method:Reflow

Operating:Bounce right

Frame foot shape:Substrate insertion

Positioning pin:NO

Operating temperature range:-10℃ to +60℃

Maximum rating/minimum rating (resistive load):10mA 5V DC/50µA 3V DC

Electrical properties

Contact resistance (initial/after life):200mΩ max./500mΩ max

Insulation resistance:100MΩ min. 100V DC

Withstand voltage:100V AC for 1 minute

Mechanical behavior

Terminal strength:3N for 1 minute

Operating strength

Operation direction:10N

Pull direction:10N

Durability

No load life:100,000 cycles 500mΩ max.

30,000 cycles 500mΩ max.

Load life (maximum rated load):100,000 cycles 500mΩ max.

30,000 cycles 500mΩ max

Environmental resistance

Cold resistance:-40℃ 96h

Heat resistance:85℃ 96h

Humidity resistance:40℃, 90 to 95%RH 96h

Minimum order unit (pcs.)

Japan:4000

Export:16000
