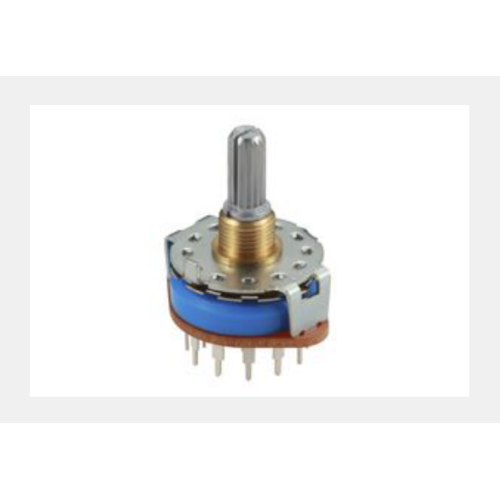

SRRM Series Rotary switch

Product Number:SRRM433700

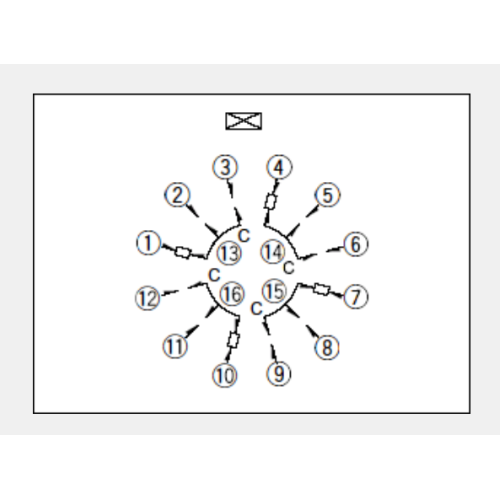

Number of Circuits 4
Contact Points 3
Switching Angle 30 +3 degree
Switching time limit Shorting
Rotation Torque 80 +30 mN.m
Operating Department Shape 18-tooth serration
Operational length L: 20mm
Use temperature range -10 to +60 C
Maximum Rate/Minimum Rate (Resistance Load) 0.25A 30V DC/50A 3V DC
Electrical performance Contact resistance (initial/post-life) 20mmax. /60mmax.
insulation resistance 100Mmin. 500V DC
Voltage withstanding 500V AC for 1 minute
Mechanical properties Terminal Strength 10N for 1 minute
Operating Department Strength Rotation direction 1N.m
Propulsion Direction 100N
Oscillation of the operating part (load on the tip of the shaft: 5N) Measured position of self-mounting surface 15mm
Vibration amplitude of axis (maximum) 0.25mm max.
Suitable for installation size 20mm
Durability No Load Life 10,000 cycles 40m max.
Load life (maximum rated load) 10,000 cycles, 60m_max.
Environmental resistance Cold resistance -20 C 96h
Heat resistance 85 C 96h
Humidity resistance 40 C, 90 to 95%RH 96h
Minimum Order Unit (pcs.) Japan 60
Exit 240
