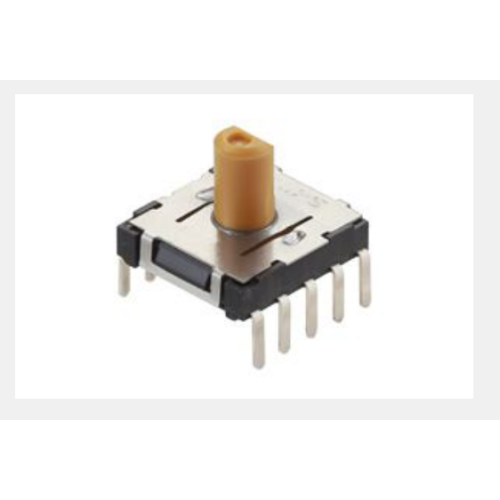

9 contact corresponding to vertical type

Product number:SRBQ490100

Number of circuits one
Connection points nine
Switch angle 40±3°
Switching time limit Non shorting
Rotating torque 13±5mN·m
Shape of operation part Flat
welding method Insertion
Length of operation section 5.8mm
Operating temperature range - 10℃ to +60℃
Maximum rated / minimum rated (resistive load) 0.1A 16V DC/50µA 3V DC
Electrical properties Contact resistance (initial / after service life) 50mΩ max./100mΩ max.
insulation resistance 100MΩ min. 100V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Terminal strength 5N for 1 minute
Strength of operation part Propulsion direction 20N
Swing of operating part (load at shaft tip: 1n) Shaft tip Above 5 and below 10mm
Vibration amplitude of shaft (maximum) 0.9mm
Durability No load life 10,000 cycles 100mΩ max.
Load life (maximum rated load) 10,000 cycles 100mΩ max.
Environmental resistance Cold resistance - 20℃ 96h
Heat resistance 85℃ 96h
Moisture resistance 40℃, 90 to 95%RH 96h
Minimum order unit (PCs.) Japan 1,215
Export 4,860
Welding conditions
Reference examples of immersion welding methods
project Preheating temperature -
Preheating temperature and time -
Immersion welding welding temperature 260±5℃
Welding immersion time 5±1s
Reference examples of manual welding methods
welding temperature 350±10℃
Welding time 3+1/0s
