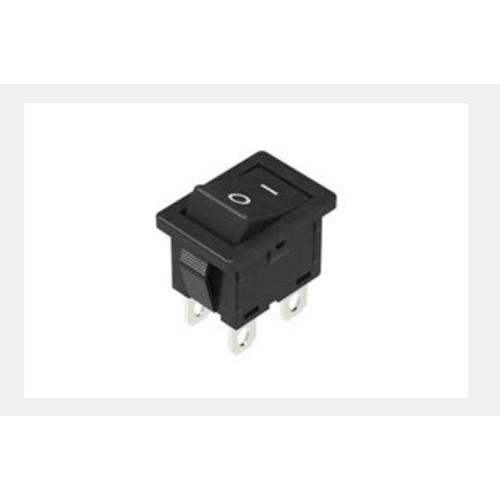

Sddje series power switch

Product number:SDDJE30300

type Shake up and down

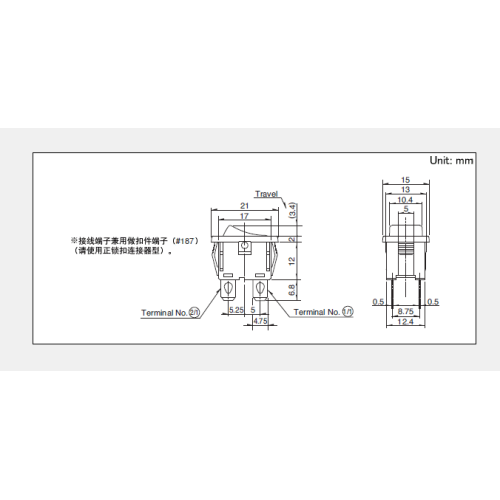

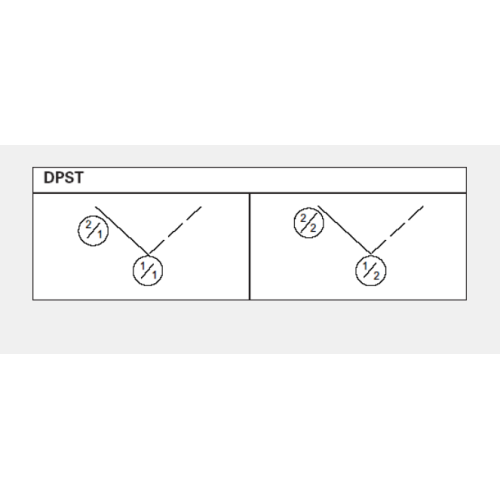

Circuit composition DPST
trip 3.4mm
Action force 6±3N
Installation method Snap-in
Terminal shape For Lead
frame nothing
Indicates (knob) I, O mark
C-UL-US 10AGP 250V AC
SEMKO 6A/96A 250V~, 10(6)/250~
VDE 6A/96A 250V~, 10(6)/250~
BS 6A/96A 250V~, 10(6)/250~
Rated voltage based on electric safety method 125V 10A‡
Operating temperature range - 10℃ to +55℃
rated 10AGP 250V AC, 6A/96A 250V~
Electrical properties contact resistance 100mΩ max.
insulation resistance 500MΩ min. 500V DC
Withstand voltage 2,000V AC for 1 minute
Mechanical properties Terminal strength 50N for 1 minute (lead terminal)
5N for 1 minute
Strength of operation part Action direction 25N
Right angle direction 25N
Durability Operating life 10,000 cycles 10A 250V AC
Environmental resistance Cold resistance - 20℃ 96h
Heat resistance 85℃ 96h
Moisture resistance 40℃, 90 to 95%RH 96h
Minimum order unit (PCs.) Japan four hundred
Export 2,000
Welding conditions
Reference examples of manual welding methods
welding temperature 350±10℃
Welding time 3+1/0s
