ALPS Switch Type Multifunctional Operating Device

SLLB120300 is a joystick and push-operated switch of ALPS. It is the SLLB series. It is a small, low-profile horizontal operating switch with a wide range of applications. This product is mostly used in DVD players, cameras, and health care products. The shape of the operation part of this product is Standard type Mounting knob integrated. You can learn about the actual situation of the product with us according to your actual needs, and we will give you You recommend the most suitable product

Product number:SLLB120300

Number of operating axes:1 axis

Shaft material:Resin

Operating part shape:Standard type

Mounting knob integrated

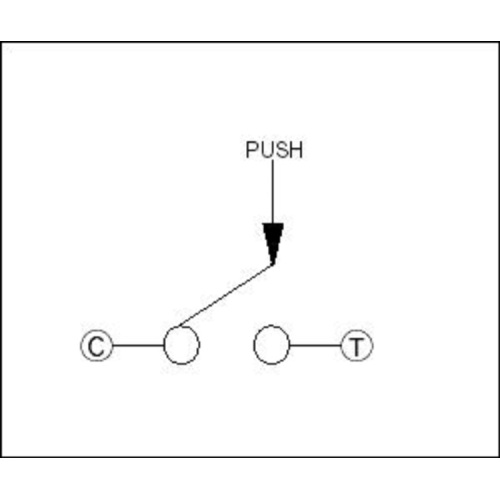

Press the ON switch (8 directions):YES

Action

Joystick:0.65±0.3N

Push button:2±1N

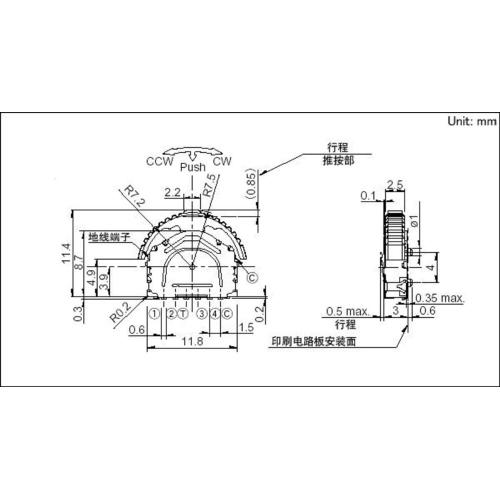

Stroke (center press)See outline drawing:

Operation part color:Black

Positioning pin:YES

Operating temperature range:-40℃ to +85℃10mA 5V DC/50µA 3V DC

Maximum rating/minimum rating (resistive load):

Electrical properties

The output voltage:1mA 5V DC

(Resistive load) 1V or less

Direction resolution:2 directions

Insulation resistance:100MΩ min. 100V DC

Withstand voltage:100V AC for 1 minute

Mechanical behavior

Terminal strength:3N for 1 minute

Operating strength

Push and pull direction:50N

Action direction:10N

Durability

Load:100,000 cycles

No load:100,000 cycles(10mA 5V DC)

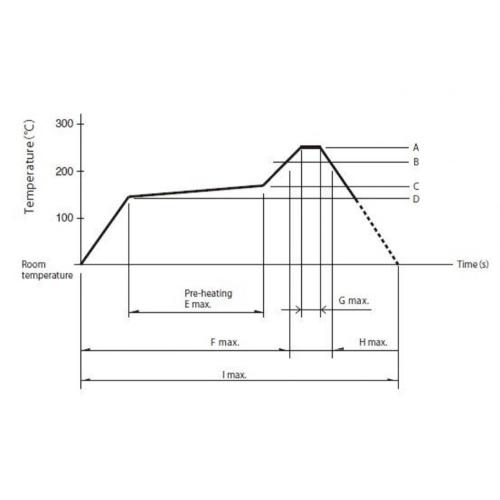

Environmental resistance

Cold resistance:-40±2℃ for 96h

Heat resistance:85±2℃ for 96h

Humidity resistance:40±2℃, 90 to 95%RH for 96h

Minimum order unit (pcs.)

Japan:1,350

Export:5,400
