SPEF series push switch

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product number:SPED310200

Switching time limit Non shorting
Full stroke 3.8mm
Action force 4.17±0.74N

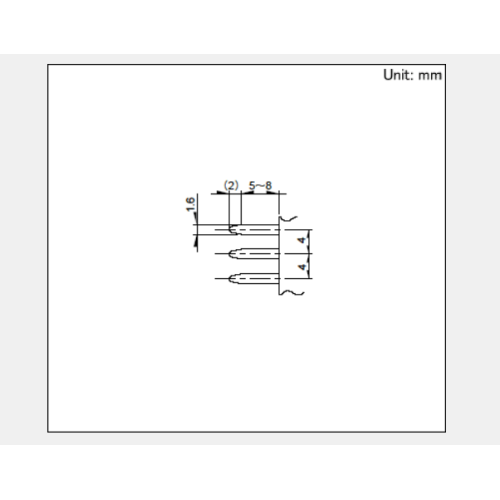

Installation method Connector

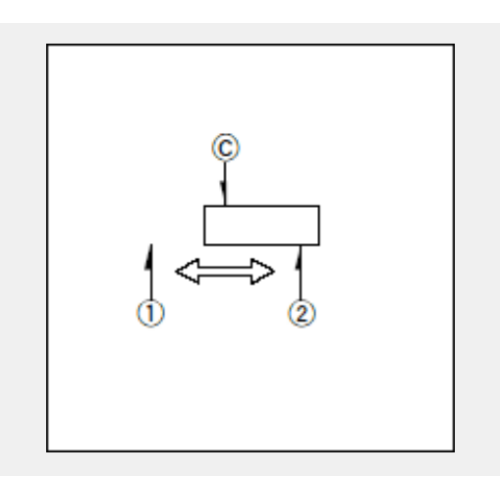

Circuit composition 1-pole, 2-position
action Alternate
Operating temperature range - 40℃ to +95℃
Electrical properties Contact resistance (initial / after service life) 100mΩ max./100mΩ max.
insulation resistance 3MΩ min. 500V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Strength of operation part Operation direction 98N
Maximum rated resistance (load) 2A 14.5V DC
Durability Load life
Maximum rated load 30,000 cycles
100mΩ max.
Environmental resistance Cold resistance - 40℃ 96h
Heat resistance 105℃ 192h
Moisture resistance 40℃, 90 to 95%RH 96h
Minimum order unit (PCs.) Japan five hundred
Export 2,500
