Product number：SPED210203
Switching time limit Non shorting
Full stroke 4.5mm
Action force 4.17±0.74N
Installation method Connector

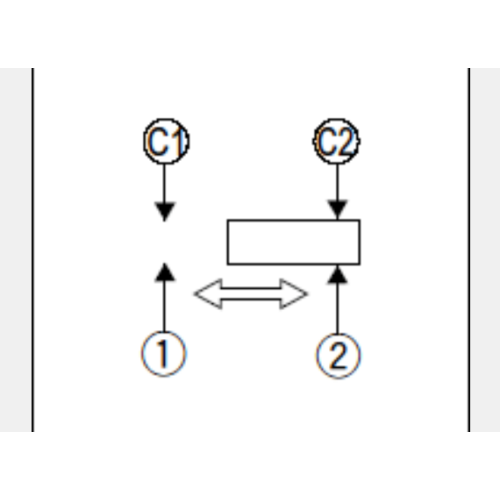

Circuit composition 1-pole, 2-position
action Alternate
Operating temperature range - 40℃ to +85℃
Electrical properties Contact resistance (initial / after service life) 100mΩ max./100mΩ max.
insulation resistance 3MΩ min. 500V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Strength of operation part Operation direction 90N
Maximum rated resistance (load) 1A 14.5V DC
Durability Load life
Maximum rated load 30,000 cycles
100mΩ max.
Environmental resistance Cold resistance - 40℃ 96h
Heat resistance 85℃ 96h
Moisture resistance 40℃, 90 to 95%RH 96h
Minimum order unit (PCs.) Japan four hundred
Export 2,000
