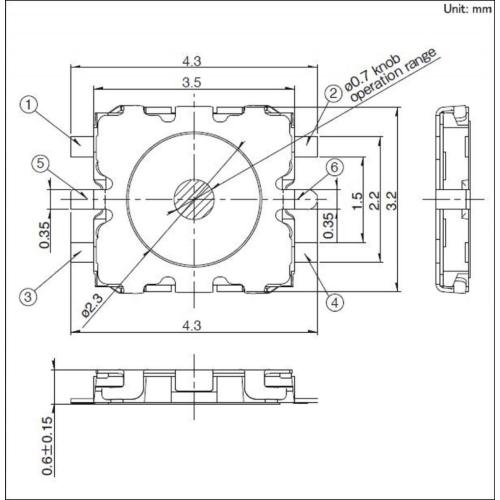

3.5×3.2mm Thin Double Action Type

SKSKPBE010 is a 3.5×3.2mm thin double action type (surface mount) tact switch. It is a thin 0.6mm, double action type. This product is mostly used in cameras, mobile phones and peripherals, wearable terminals. You can communicate your needs with us, and we will recommend the most suitable products for you according to your needs.

Product number:SKSKPBE010

Type:Surface mount

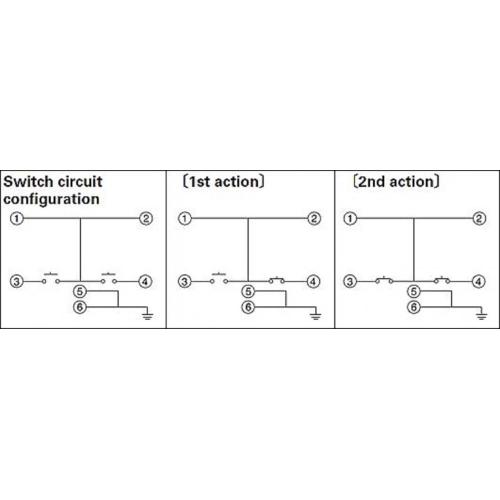

Action:1st 0.6N, 2nd 1.6N

Operation direction:Top push

stroke:1st 0.1mm, All 0.25mm

Operating life (5mA 5V DC):100,000 cycles

Initial contact resistance:500mΩ max.

series:Sharp feeling type

Operating temperature range:-30℃ to +85℃

Maximum rating:50mA 12V DC

Minimum rating:10µA 1V DC

Electrical properties

Insulation resistance:100MΩ min. 100V DC for 1min.

Withstand voltage:100V AC for 1 min.

Durability

Vibration resistance:10 to 55 to 10Hz/min, full amplitude 1.5mm in X, Y, Z directions for 2 hours each

Environmental resistance

Cold resistance:-30±2℃ for 96h

Heat resistance:80±2℃ for 96h

Humidity resistance:60±2℃, 90 to 95%RH for 96h

Minimum order unit (pcs.)

Japan:10000

Export:10000
