Alps Small Surface Mount Switch

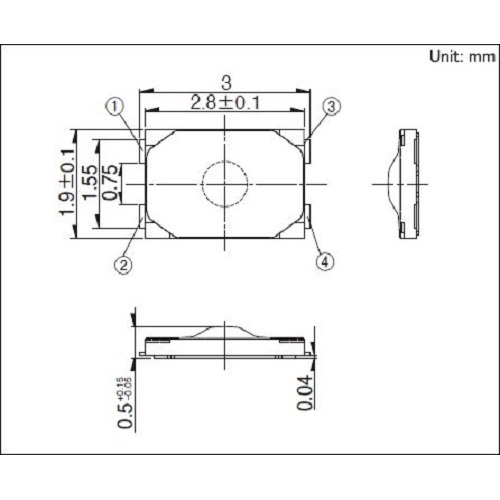

SKSVCCE010 is a 2.8×1.9mm small surface mount switch with protrusions from ALPS. It belongs to the SKSV series. The 1.9mm body width type that we have contributed to improving the thinning of combined parts and mounting efficiency. This product is mostly used in personal audio, cameras, health care products, and wearable terminals.

Product number：SKSVCAE010

Type：Surface mount

Action：1.6N

Operation direction：Top push

stroke：0.12mm

Operating life (5mA 5V DC)：300,000 cycles

Initial contact resistance：500mΩ max.

Protection structure：Equivalent to IP67

series：Sharp feeling type

Operating temperature range：-30℃ to +85℃

Maximum rating：50mA 12V DC

Minimum rating：10μA 1V DC

Electrical properties

Insulation resistance：100MΩ min. 100V DC for 1min.

Withstand voltage：100V AC for 1 min.

Durability

Vibration resistance：10 to 55 to 10Hz/min, full amplitude 1.5mm in X, Y, Z directions for 2 hours each

Environmental resistance

Cold resistance：-30±2℃ for 96h

Heat resistance：80±2℃ for 96h

Humidity resistance：60±2℃, 90 to 95%RH for 96h

Minimum order unit (pcs.)

Japan：20000

Export：20000
