Ssgm series Switchover switch

Product number:SSGM760102

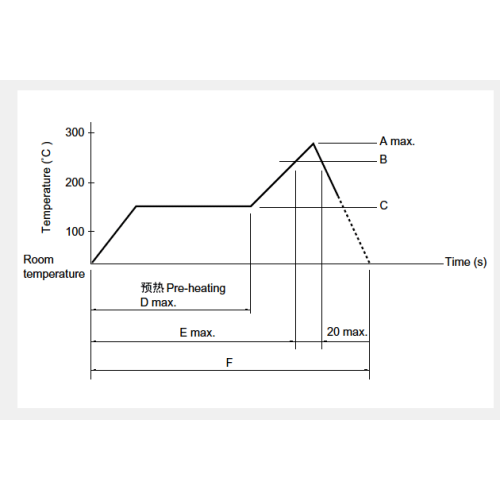

welding method Reflow
Shape of operation part Flat
Action force 3.5±2.5N

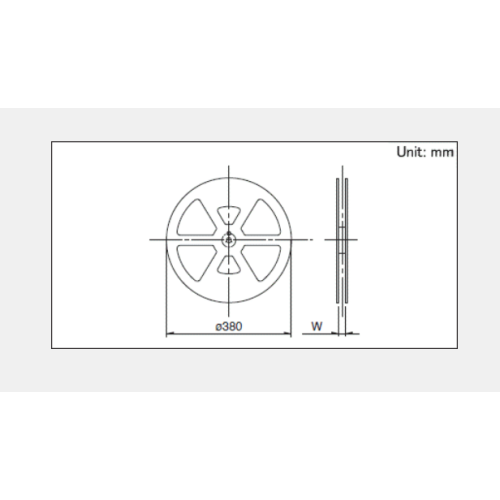

Packaging status Taping
Number of circuits six
Operating temperature range - 40℃ to +85℃
Maximum rated / minimum rated (resistive load) 25mA 24V DC (when opening and closing)
0.1A 50V DC (when powered on)
fifty μ A 3V DC
Electrical properties Contact resistance (initial / after service life) 50mΩ max./100mΩ max.
insulation resistance 100MΩ min. 500V DC
Withstand voltage 500V AC for 1 minute
Mechanical properties Terminal strength 5N for 1 minute
Strength of operation part Action direction 10N
Pulling direction 10N
Durability Operating life No load 3,000 cycles
load 3,000 cycles (25mA 24V DC)
Environmental resistance Cold resistance - 40℃ 250h
Heat resistance 85℃ 250h
Moisture resistance 60℃, 90 to 95%RH 250h
Minimum order unit (PCs.) Japan 1,000
Export 2,000
