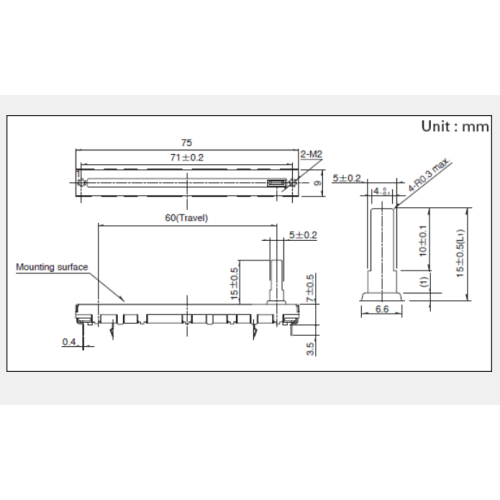

RS6011DP Series Slide Potentiometer

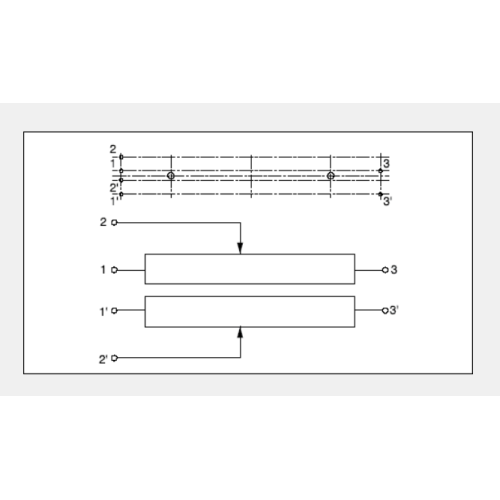

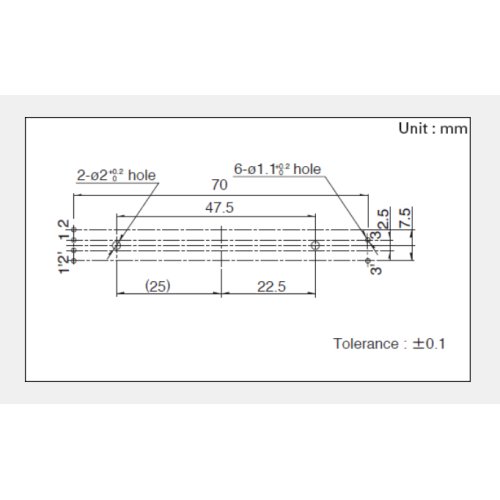

Number of resistors 2 couplets

Installation direction Vertical

trip 60mm

Shape of operation part six

Length of operation section 15mm

Total resistance 20kΩ

Resistance law 15A

Operating temperature range - 10℃ to +60℃

Electrical properties Allowable difference of total resistance ±20%

Maximum service voltage 150V AC, 10V DC

Rated power 0.1W

insulation resistance 100MΩ min. 250V DC

Withstand voltage 250V AC for 1 minute

Mechanical properties Action force 0.5(+1.0, -0.4)N

Stop strength 100N

Push and pull strength of operating part 50N

Transverse vibration of operating part (both sides) 2.4mm

Eccentricity of operating part (one side) 0.5mm max.

Durability Operating life 30,000 cycles

Minimum order unit (PCs.) Japan nine hundred

Export nine hundred
Welding conditions

Reference examples of immersion welding methods

preheat Surface temperature of welding surface 100℃ max.

heating time 1 min. max.

Immersion welding welding temperature 260℃ max.

Welding time 5s max.

Welding times 1 time

Reference examples of manual welding methods

Soldering iron head temperature 350℃ max.

Welding time 3s max.

Welding times 1 time
