RS6011DP Series Slide Potentiometer

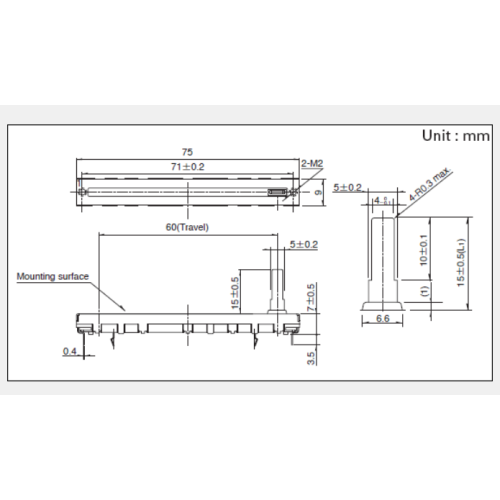

Product Number:RS6011DP6002

Number of resistors 2

Installation Direction Vertical

Travel 60mm

Operations Shape 6

Operating length 15mm

Total resistance 10 K

Resistance Law 15A

Use temperature range -10 to +60 C

Permissible difference of total resistance value (+20%)

Maximum operating voltage 150V AC, 10V DC

Rated power 0.1W

Insulation resistance 100Mmin. 250V DC

Voltage resistant 250V AC for 1 minute

Mechanical Performance - Motion Force 0.5 (+1.0, -0.4)N

Stop Strength 100N

Push-pull strength of operating unit 50N

Transverse vibration of operating unit (both sides) 2.4mm

The eccentricity of the operating part (one side) is 0.5mm max.

Durability - Operating life 30,000 cycles

Minimum Order Unit (pcs.) Japan 900

Export 900
Welding Conditions

Reference examples of dipping methods

Preheat the surface temperature of the welded surface at 100 C max.

Heating time is 1 min. max.

Immersion welding temperature 260 C max.

Welding time 5S max.

Number of welds 1 time

Reference examples of manual welding methods

Pyramid head temperature 350 C max.

Welding time 3S max.

Number of welds 1 time
