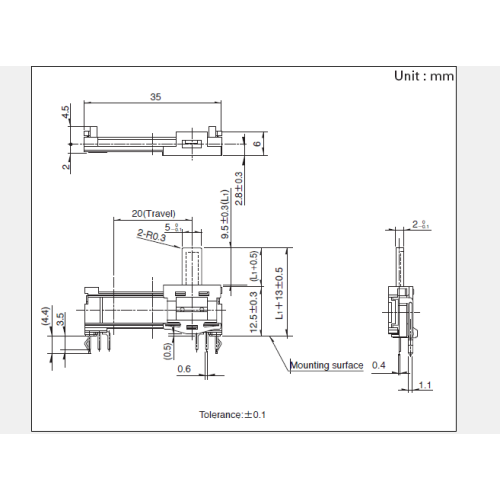

RS20H series Sliding potentiometer

Product Number:RS20H123A01C

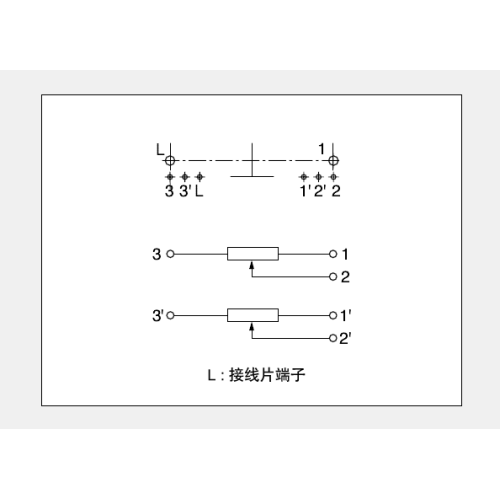

Number of resistors 2
Installation Direction Vertical
Travel 20mm
Operations Shape A
Operating length 9.5mm
Total resistance value 100K
Resistance Law 1B
Central positioning
Is the tap okay?
Use temperature range -25 to +70 C
Permissible difference of total resistance value (+20%)
Maximum operating voltage 100V AC, 10V DC
Rated power 0.05W
Insulation resistance 100Mmin. 250V DC
Voltage resistant 300V AC for 1 minute
Mechanical Performance - Motion Force 0.6 (+0.5, -0.4)N
Stop Strength 30N
Push-pull strength of operating unit 30N
The transverse vibration of the operating unit (both sides) is 1.6mm max.
Location Exhaustion Force + 0.3 (+0.5, -0.25) N
Durability Operating Life 10,000 cycles
Minimum Order Unit (pcs.) Japan 2,500
Export 5,000
Welding Conditions
Reference examples of dipping methods
Preheat the surface temperature of the welded surface at 100 C max.
Heating time is 1 min. max.
Immersion welding temperature 260 C max.
Welding time 5S max.
Number of welds 1 time
Reference examples of manual welding methods
Pyramid head temperature 350 C max.
Welding time 3S max.
Number of welds 1 time
