Rs15h series Sliding potentiometer

Product Number:RS15H121A009

Number of resistors 2
Installation Direction Vertical
Travel 15mm

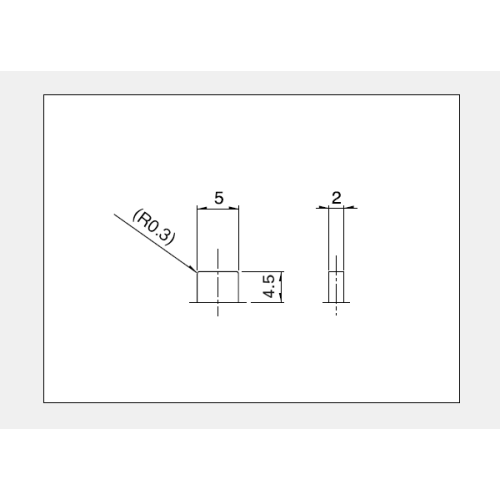

Operations Shape A
Operating length 4.5mm
Total resistance 10 K
Resistance Law 15A
Central Positioning None
Is the tap okay?
Use temperature range -25 to +70 C
Permissible difference of total resistance value (+20%)
Maximum operating voltage 50V AC, 10V DC
Rated power 0.012W
Insulation resistance 100Mmin. 250V DC
Voltage resistant 300V AC for 1 minute
Mechanical Performance - Motion Force 0.6 (+0.5, -0.4)N
Stop Strength 30N
Push-pull strength of operating unit 30N
The transverse vibration of the operating unit (both sides) is 1.6mm max.
Durability Operating Life 10,000 cycles
Minimum Order Unit (pcs.) Japan 2,900
Export 5,800
Welding Conditions
Reference examples of dipping methods
Preheat the surface temperature of the welded surface at 100 C max.
Heating time is 1 min. max.
Immersion welding temperature 260 C max.
Welding time 5S max.
Number of welds 1 time
Reference examples of manual welding methods
Pyramid head temperature 350 C max.
Welding time 3S max.
Number of welds 1 time
