RS601 series Sliding potentiometer

Product number:RS6011YA9A07

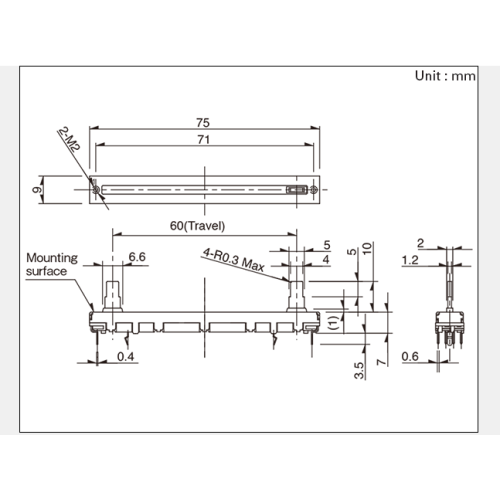

Metal lever

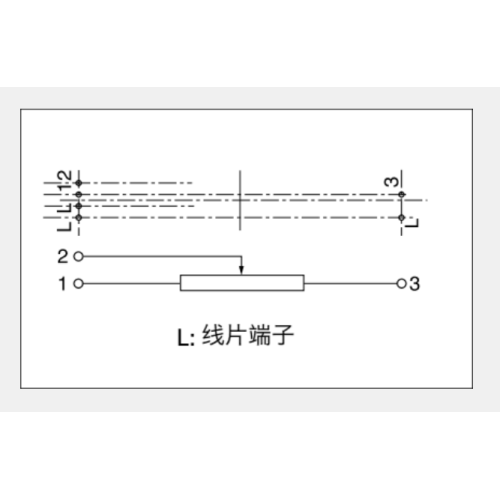

Number of resistors Single connection
Installation direction Vertical
trip 60mm
Shape of operation part 9-1
Length of operation section 10mm
Total resistance 10kΩ
Resistance law 1B
location nothing
Mounting plate yes
Operating temperature range - 25℃ to +70℃
Electrical properties Allowable difference of total resistance ±20%
Maximum service voltage 200V AC, 10V DC
Rated power 0.2W
insulation resistance 100MΩ min. 250V DC
Withstand voltage 300V AC for 1 minute
Mechanical properties Action force 0.3 to 2.5N
Stop strength 50N
Push and pull strength of operating part 50N
Transverse vibration of operating part (both sides) 2mm
Eccentricity of operating part (one side) 0.5mm max.
Durability Operating life 15,000 cycles
Minimum order unit (PCs.) Japan nine hundred
Export nine hundred
Welding conditions
Reference examples of immersion welding methods
preheat Surface temperature of welding surface 100℃ max.
heating time 1 min. max.
Immersion welding welding temperature 260℃ max.
Welding time 5s max.
Welding times 1 time
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
