RS201 Series Slide Potentiometer

Product Number:RS20111A9A03

Metal joystick
Number of Resistors Single Connection
Installation Direction Vertical
Travel 20mm
Operations Shape 9-1
Operating length 10mm
Total resistance 10 K
Resistance Law 1B
Locate None

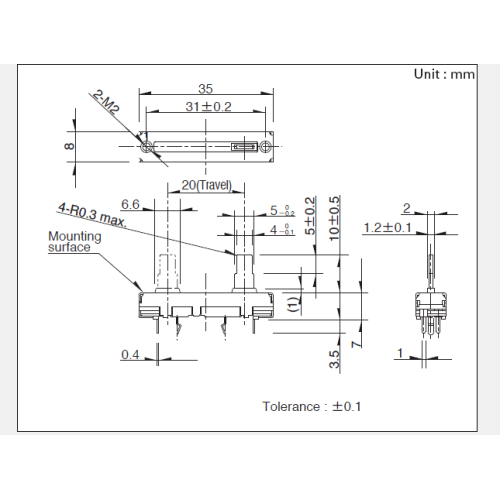

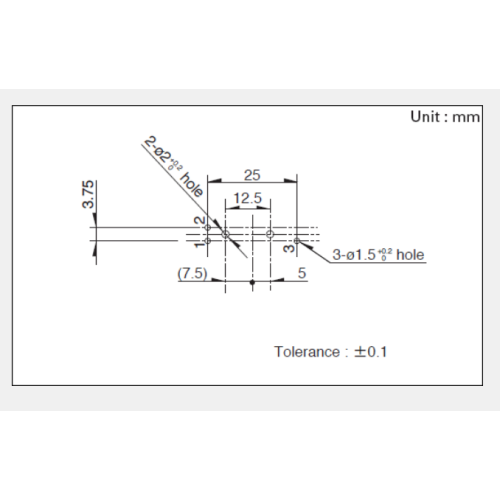

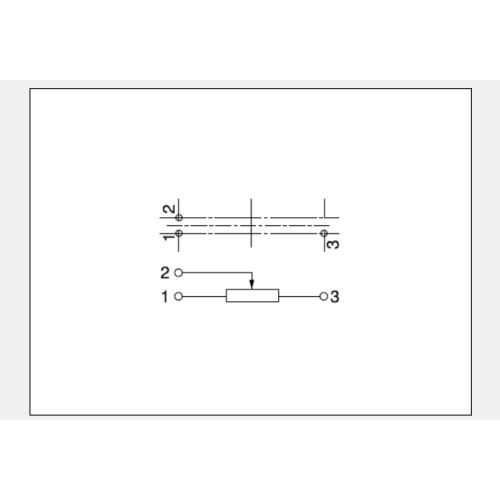

Installation board
Use temperature range -25 to +70 C
Permissible difference of total resistance value (+20%)
Maximum operating voltage 200V AC, 10V DC
Rated power 0.1W
Insulation resistance 100Mmin. 250V DC
Voltage resistant 300V AC for 1 minute
Mechanical Performance - Motion Force 0.3 to 2.5N
Stop Strength 50N
Push-pull strength of operating unit 50N
Transverse vibration of operating unit (both sides) 2mm
The eccentricity of the operating part (one side) is 0.5mm max.
Durability - Operating life 15,000 cycles
Minimum Order Unit (pcs.) Japan 700
Export 2,800
Welding Conditions
Reference examples of dipping methods
Preheat the surface temperature of the welded surface at 100 C max.
Heating time is 1 min. max.
Immersion welding temperature 260 C max.
Welding time 5S max.
Number of welds 1 time
Reference examples of manual welding methods
Pyramid head temperature 350 C max.
Welding time 3S max.
Number of welds 1 time
