Rk09k series Rotary potentiometer

Product number:RK09K1110077

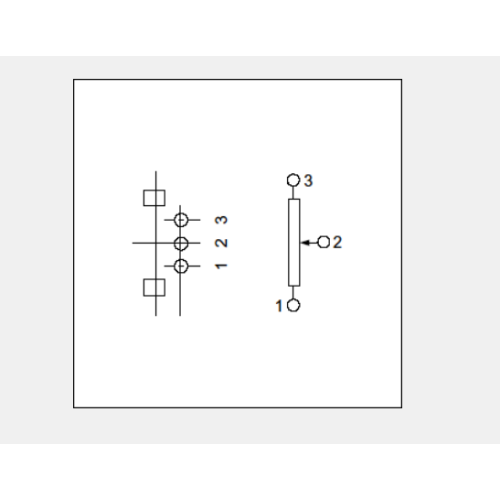

Number of resistors Single connection
(20V DC)
Direction of operation part (installation height) Horizontal
H=6.5mm
Long shaft ring (sleeve type) nothing
Shape of operation part knob
Length of operation part LM1 20mm
Central positioning yes
Total resistance 10kΩ
Resistance law 1B
Operating temperature range - 10℃ to +70℃
Electrical properties Allowable difference of total resistance ±20%
Rated power 0.05W
Maximum service voltage 50V AC, 20V DC
insulation resistance 100MΩ min. 250V DC
Withstand voltage 250V AC for 1 minute
Mechanical properties Full rotation angle 280°±5°
Rotating torque 1 to 8mN·m
Terminal stop strength 0.3N·m
Shaft push-pull strength 50N max.
Vibration resistance 10 to 55 to 10Hz / min, full amplitude 1.5mm, 2 hours in x.y.z direction
Durability Operating life 5,000 cycles
Minimum order unit (PCs.) Japan 1,000
Export 2,000
Welding conditions
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
