RK09K Series Rotating potentiometer

Product Number:RK09K1130A6S

Number of Resistors Single Connection
(20V DC)
Operating Direction (Installation Height) Vertical
Long Axle Ring (Sleeve Type) nothing
Operating Department Shape Flat Axis

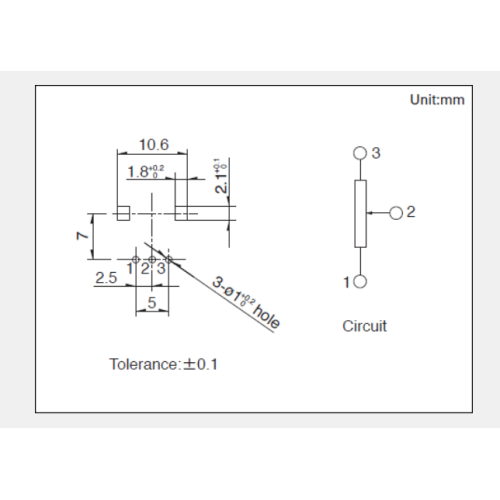

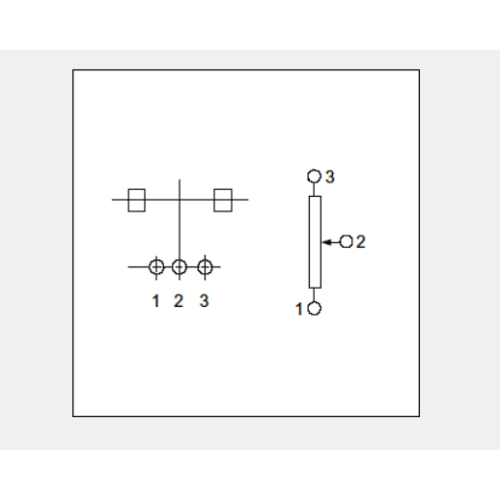

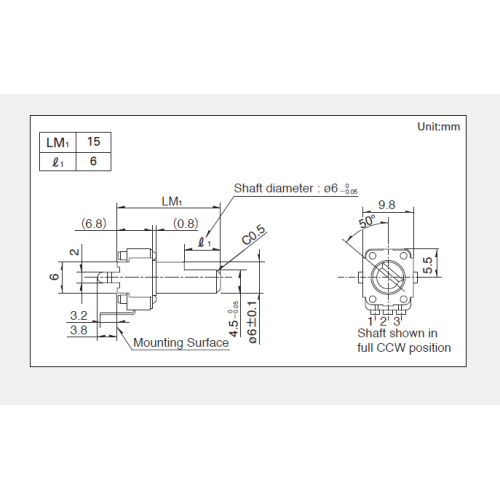

Operational length LM1 15mm
Central Positioning nothing
nominal resistance 10K
Resistance law 1B
Use temperature range -10 C to +70 C
Electrical performance Total resistance allowable difference +20%
Rated power 0.05W
Maximum Usage Voltage 50V AC, 20V DC
insulation resistance 100Mmin. 250V DC
Voltage withstanding 250V AC for 1 minute
Mechanical properties Full rotation angle 280 [+] 5 [+]
Rotation Torque 1 to 8mN.m
Terminal Stop Strength 0.3N.m
Push-pull strength of shaft 50N max.
Vibration resistance 10 to 55 to 10Hz/min, full amplitude 1.5mm, 2 hours in X.Y.Z 3 direction
Durability Operating life 5,000 cycles
Minimum Order Unit (pcs.) Japan 1,000
Exit 2,000
Welding Conditions
Reference examples of manual welding methods
Soldering head temperature 350 C max.
Welding time 3S max.
Number of Welds 1 time
