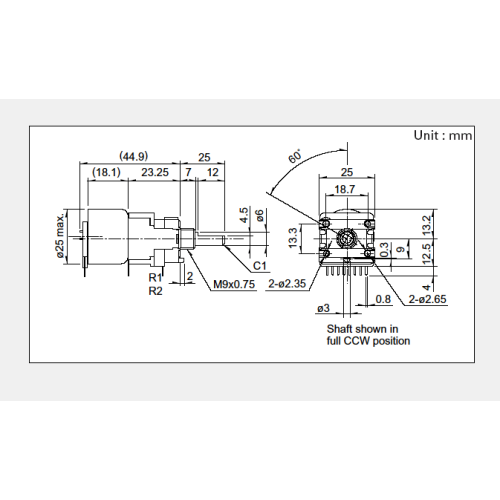

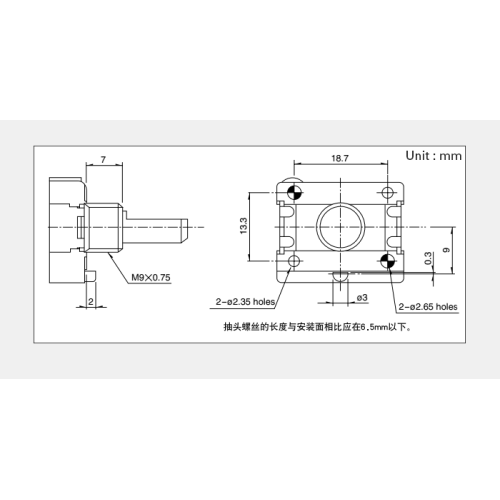

RK168 Series Rotating potentiometer

Product Number:RK16812MG099

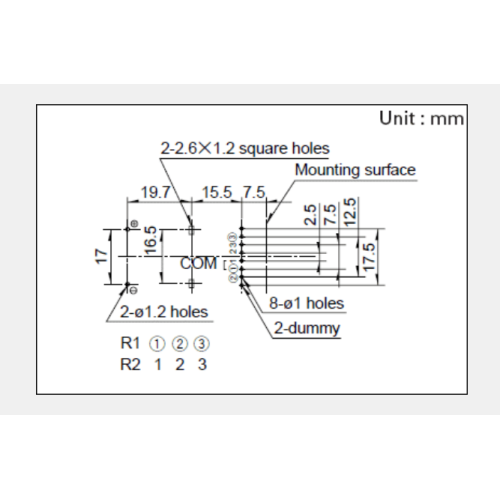

Number of Resistors 2 pairs
Operating Department Direction Horizontal

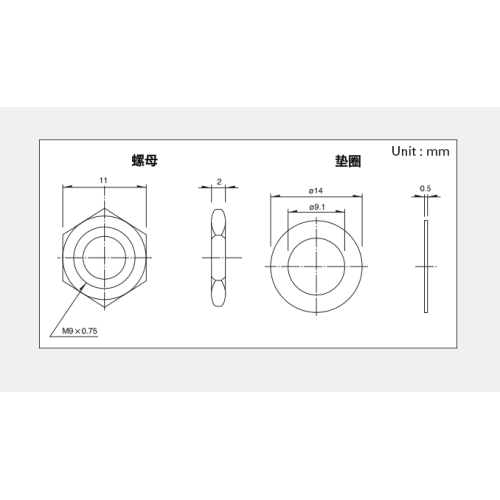

Axis Fixed Method Screw Fixing
Operating Department Shape Flat Axis
Operational length 25mm
nominal resistance 100K
Resistance law 3B

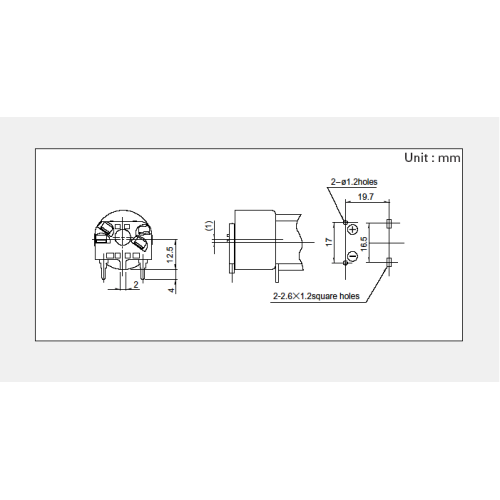

Motor wiring terminal Yes
Motor input voltage 4 to 6V DC
(Standard: 4.5V)
Potentiometer rotation speed 12 +3 sec/300 degrees
(4.5V DC)
Action Maximum Current When rotating: 100mA
End idle: 150 mA
Use temperature range -10 C to +70 C
Electrical performance Total resistance allowable difference +20%
Rated power 0.05W
Maximum Usage Voltage 50V AC
Maximum attenuation 100dB min.
Mutual deviation -60dB to 40dB 5dB max.
-40dB to 0dB 3dB max.
insulation resistance 100Mmin. 250V DC
Voltage withstanding 300V AC for 1 minute
Mechanical properties Full rotation angle 300 [+] 5 [+]
Rotation Torque 10 to 40mN.m
Terminal Stop Strength 0.9N.m
Push-pull strength of shaft 100N max.
Vibration resistance 10 to 55 to 10Hz/min, full amplitude 1.5mm, 2 hours in X.Y.Z 3 direction
Durability Operating life 15,000 cycles
Minimum Order Unit (pcs.) Japan 200
Exit 200
Welding Conditions
Reference examples of manual welding methods
Soldering head temperature 300 C max. (potentiometer terminal), 350 C max. (motor terminal)
Welding time 3S max. (potentiometer terminal), 2S max. (motor terminal)
Number of Welds 1 time
