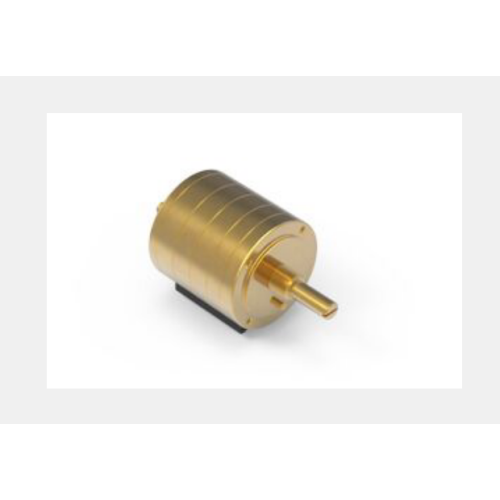

RK501 Series Rotating potentiometer

Product number:RK50114A0001

Number of resistors 4 couplets
Direction of operation section Horizontal
Fixed method of shaft Thread fixing
Shape of operation part Slot shaft
Length of operation section 30mm
Central positioning nothing
Total resistance 50kΩ
Resistance law 15A
Operating temperature range - 10℃ to +70℃
Electrical properties Allowable difference of total resistance ±20%
Rated power 0.1W
Maximum service voltage 150V AC
Maximum attenuation 120dB min.
Mutual deviation - 100dB to 0dB 3dB max.
(only applicable between R1 - R2, R3 - R4)
insulation resistance 100MΩ min. 500V DC
Withstand voltage 500V AC for 1 minute
Mechanical properties Full rotation angle 300°±3°
Rotating torque 32±15mN･m
Terminal stop strength 1.5N·m
Shaft push-pull strength 150N max.
Vibration resistance 10 to 55 to 10Hz / min, full amplitude 1.5mm, 2 hours in x.y.z direction
Durability Operating life 15,000 cycles
Minimum order unit (PCs.) Japan one
Export one
Welding conditions
Reference examples of immersion welding methods
preheat Surface temperature of welding surface 120±10℃ max.
heating time 2 min. max.
Immersion welding welding temperature 260℃±5℃ max.
Welding time 5±1s
Welding times 2 time
Reference examples of manual welding methods
Soldering iron head temperature 350±10℃
Welding time 5(+1, 0)s
Welding times 1 time
