Rk097 series Rotary potentiometer

Product number:RK097221005C

2-axis 2-Gang non switch type
Number of resistors 2 couplets
(1 copy, single copy)
Direction of operation section Horizontal

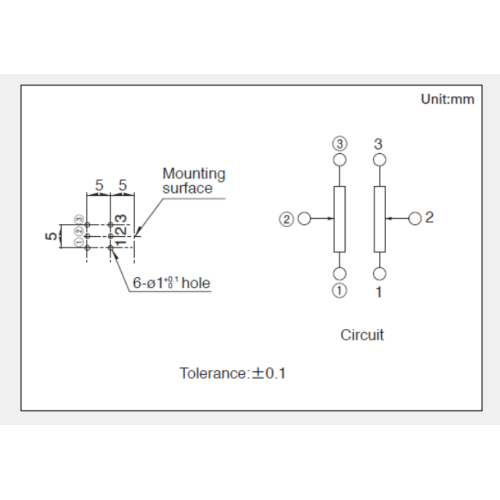

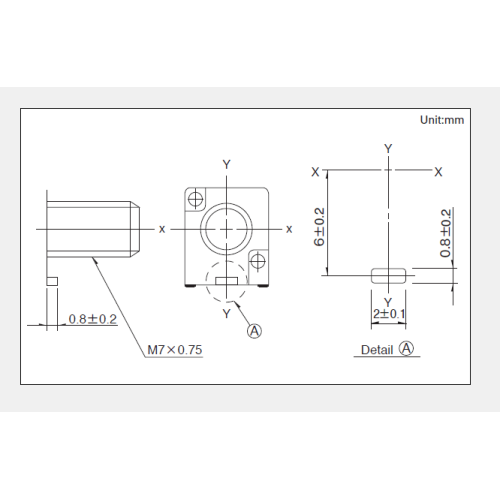

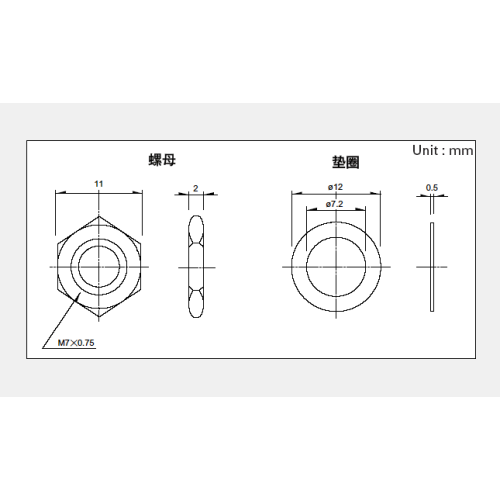

Fixed method of shaft Thread fixing
Use of outer shaft Shape of operation part Slot shaft
Length of operation section 15mm
Central positioning nothing
Total resistance 10kΩ
Impedance variation performance 15A
Use of inner shaft Shape of operation part Horizontal axis
Length of operation section 25mm
Central positioning nothing
Total resistance 10kΩ
Resistance law 15A
Operating temperature range - 20℃ to +70℃
Electrical properties Allowable difference of total resistance ±20%
Rated power 0.05W
Maximum service voltage 50V AC, 10V DC
Residual resistance 20Ω max.
insulation resistance 100MΩ min. 250V DC
Withstand voltage 300V AC for 1 minute
Mechanical properties Full rotation angle 300°±5°
Rotating torque 2 to 25mN·m
Terminal stop strength 0.5N·m
Shaft push-pull strength 100N max.
Vibration resistance 10 to 55 to 10Hz / min, full amplitude 1.5mm, 2 hours in x.y.z direction
Durability Operating life 15,000 cycles
Minimum order unit (PCs.) Japan seven hundred
Export 1,400
Welding conditions
Reference examples of immersion welding methods
preheat Surface temperature of welding surface 100℃ max.
heating time 2 min. max.
Immersion welding welding temperature 260±5℃ max.
Welding time 5±1s
Welding times 2 time max.
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
