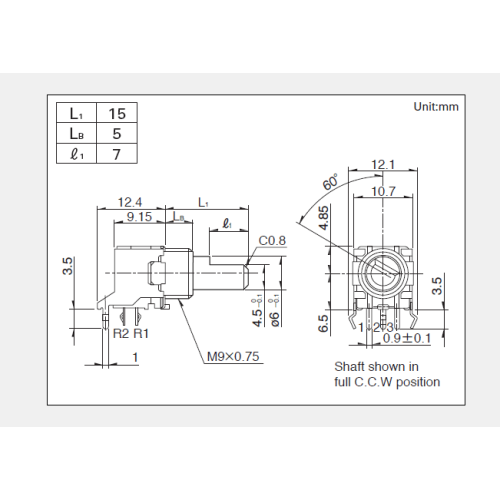

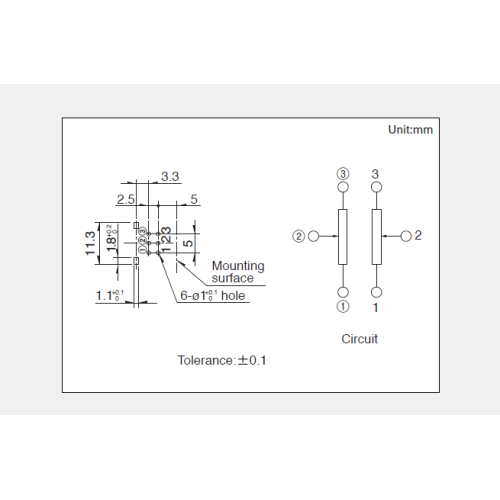

Rk09l series Rotary potentiometer

Product Number:RK09L12B0A4S

Number of Resistors 2 pairs
Operating Department Direction Horizontal
Axis Fixed Method Screw Fixing
Operating Department Shape Flat Axis
Operational length 15mm
Central Positioning nothing
nominal resistance 10K
Resistance law 15A
Use temperature range -10 C to +70 C
Electrical performance Total resistance allowable difference +20%
Rated power 0.05W
Maximum Usage Voltage 50V AC, 10V DC
Maximum attenuation 80dB min.
Mutual deviation -40dB to 0dB 3dB max.
insulation resistance 100Mmin. 250V DC
Voltage withstanding 300V AC for 1 minute
Mechanical properties Full rotation angle 300 [+] 5 [+]
Rotation Torque 2 to 25mN.m
Terminal Stop Strength 0.5N.m
Push-pull strength of shaft 80N max.
Vibration resistance 10 to 55 to 10Hz/min, full amplitude 1.5mm, 2 hours in X.Y.Z 3 direction
Durability Operating life 15,000 cycles
Minimum Order Unit (pcs.) Japan 1,000
Exit 2,000
Welding Conditions
Reference examples of dipping methods
Preheat Surface temperature of welded surface Max at 100 C.
heating time 2 min. max.
Dipping welding temperature 260 +5 C max.
Welding time 5 +1s
Number of Welds 2 time max.
Reference examples of manual welding methods
Soldering head temperature 350 C max.
Welding time 3S max.
Number of Welds 1 time
