Slim Wall mounted Kiosk
-
$1500.00≥5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Min. Order:
- 5 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen , HongKong
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | P.R.China |
|---|---|
| Productivity: | 500 units per month |
| Supply Ability: | 500 units per months |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO9001, ISO14000, ISO13485 |
| HS Code: | 84716040 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen ,HongKong |
Product Description
Product Description

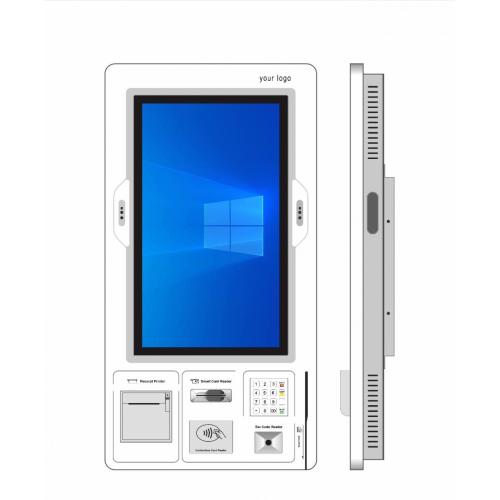

| Slim Wall Mount Kiosk | |
| Technical specs-Model # SKTB4003 | |
| Modules | Description |
| Industrial PC | Industrial Grade Motherboard, integrated intel 12th Generation CPU 6412; DDR3 4G RAM; 256GB SSD; 2*LAN/1*HDMI/8*USB, Integrated Net Card, SoundCard, Display Card With computer case and power supply |
| 21.5" capacitive Touch screen | 21.5 Inch Capacitive Touch Monitor, LVDS interface;Resolution:1920*1080; PCAP resolution 4096*4096 ;Brightness: 250CD/m2 ;Response :<15Ms;Interface :USB |
| Thermal Printer | 58mm panel mount thermal printer |
| Encrypted Pinpad | PCI compliant Pin Pad, 16 Keys Encrption Metal Keyboard; Number Keys:10; Function Keys:6; SupportingDES&3DES arithmetic of ECB&CBC and ANSI X 9.8 PIN; Block format |
| DIP Card reader and Magnetic Card Reader | EMV certified,IC Card and Mag card read;IC Card :ISO7816,Magnetic Card:ISO7810 ID-1,7811, ;Life :Magnetic head:500,000 cycles min, IC card Contact:300,000 cycles min; |
| Contactless Card reader | Supports RFID Card:ISO 14443-A(Mifire one),Mifare Classic 1K(S50) /4K(S70) Mifare Ultraligth; , Type A, Type B , TOPAZ card |
| QR code Scanner | Can read both QR Code and Bar Code |
| Enclosure | Customized enclosure, Durable Steel.Frame, powder coated steel back covers; Slim and smart design; Easy to install and operate; |
| OS and Application |
Win10(Trail Version), all hardware drivers/manuals/SDK are
available Used for utility payment, bill payment in bank or hosptical or electricity and gas company such power supply company |
| Packing | High Strength Carton Box, suitable for long distance transportation. |
| Warranty | Standard 1 year based on factory, could be extended if paid |
| REMARKS | MOQ: 5 Unit |
| Payment Terms: T/T in advance | |
| Production lead time: 45 Days after payment received. | |
| Quotation validity: 1 month | |
| Trade Terms: Ex-works | |
