Compact Stainless Steel EMV AES Approved Encrypted PINpad

Compact Stainless Steel EMV AES Approved Encrypted PINpad

$160.00 - $199.00/Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	5000sets/month
Supply Ability:	5000sets/month
Payment Type:	T/T
Incoterm:	EXW
Transportation:	Ocean,Land,Air,Express
Port:	Shenzhen

Product Description

AES Approved Encryption Pin Pad for Vending Machine

This AES Approved Encryption PIN is PCI 4 approved Encrypting Pin Pad, with the most thin and compact outlook, it is suitable for portable payment devices well.

Features:

PCI 4.0 EPP

China Union Pay Approved EPP

Compact design with thickness of 20.1mm only

Support DES/TriDes, AES

Support RSA and RKL

Support DUKPT (on erquest)

Equipped with HW removal switch

One click SDK for WOSA platform

Fonts on button can be customized

Specifications:

One of the most compact PCI EPP

PCI 4.0 and China Union Pay approved EPP

Material: Stainless steel

ADA compliant with standard braille dots (optional)

Key Operation time: more than 2 million times

key letter technology: Laser engrave

Support DES/Tri-Des

Support max 4096 bit RSA algorithm

Support multi-class key system
Electronic features:

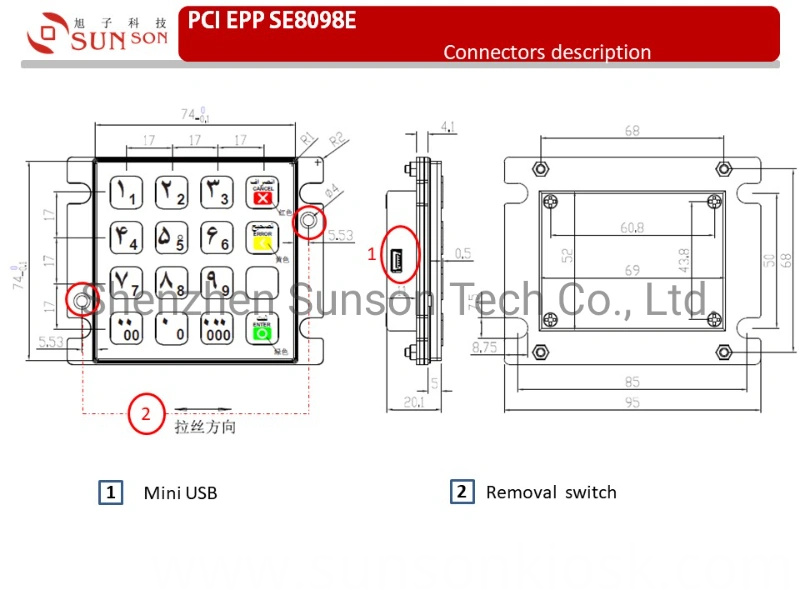

Interface:mini USB
mini USB to USB type A
Voltage: 5.0V±10%
Consumption: ≤0.5W(dynamic) ≤0.2W(static)
Reliability:MTBF>20000H MTTR<30min
data protection:data will be kept for more than 8 years against power-off

Support Algorithm:

RSA: support more than 2048 bit

DES,3DES:ANSI X3.92,ANSI X9.52

PIN operation:ANSI X9.8(ISO9564.0,ISO9564.1,ISO9564.3),IBM3624

MAC operation:ANSI X9.9,ANSI X9.19

Security standard:ISO13491

Encrypting and decrypting speed:<0.1S(8 bits DES
Applications:

Cash-ref terminals:such as ATM,ADM,CDM,CRS etc

Unattended Payment Terminals: such as UPT in gas station

Self-service terminals: such as E-bank terminal, ticket vendors, vendor, auto gas dispenser, etc.
