Waterproof IK08 Encrypting Pin Pad For Fuel Dispenser

Waterproof IK08 Encrypting Pin Pad For Fuel Dispenser

USD190

≥10 Piece/Pieces

Payment Type:: L/C, T/T, Money Gram, Western Union

Incoterm:: EXW

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Delivery Time:: 15-20 Days

Transportation:: Ocean, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	2000 Units/Week
Supply Ability:	2000 Units/Week
Payment Type:	L/C,T/T,Money Gram,Western Union
Incoterm:	EXW
Certificate:	CE, ISO, RoHS, PCI5.0
HS Code:	8471607100
Transportation:	Ocean,Air
Port:	Shenzhen

Product Description

Waterproof IK08 Encrypting Pin Pad For Fuel Dispenser

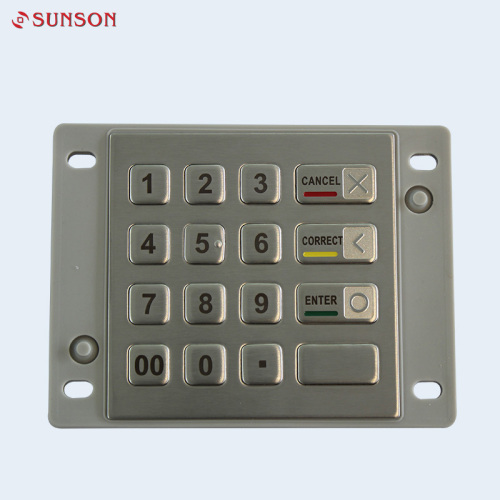

Sunson Tech SE8098D is an encrypting PIN pad(EPP) for indoor and outdoor use, offering manufacturers another form factor for integration. Optimized for use in self-service kiosks, ATMs and self-payment gas pumps, the ruggedized design of this EPP is built to withstand the most severe fraudulent attacks while complying with payment security standards on the back end.

For ATM applications, Sunson Tech offers an optional XFS Service provider for easy integration.

Features:

ØPCI 5.0 approved EPP

ØSupport DES/3DES and AES

ØSupport RSA and RKL

ØDefault: USB interface (HID)

ØEquipped with HW removal switch

ØStainless steel surface with laser engrave letters on button

ØOne click SDK for WOSA/XFS 3.2

ØRemote firmware update

ØSupport DUKPT

ØMulti-layer Key management

ØMulti-tamper-detection mechanism

Wincor ATM Keypad

Specifications:

ØPanel size: 100*100mm

ØWeight: ab. 0.85kg

ØInterface:Standard USB 2.0 interface (HID)

ØVoltage: 5.0V±10%

ØConsumption: ≤0.5W(dynamic) ≤0.2W(static)

ØReliability:MTBF>20000H MTTR<30min

Ødata protection:data will be kept for more than 8 years against power-off

Support Algorithm:

ØRSA: support more than 2048 bit

ØDES,3DES:ANSI X3.92,ANSI X9.52

ØPIN operation:ANSI X9.8(ISO9564.0,ISO9564.1,ISO9564.3),IBM3624

ØMAC operation:ANSI X9.9,ANSI X9.19

ØSecurity standard:ISO13491

ØEncrypting and decrypting speed:<0.1S(8 bits DES

Applications:

ØCash-ref terminals:such as ATM,ADM,CDM,CRS etc

ØUnattended Payment Terminals: such as UPT in gas station

ØSelf-service terminals: such as E-bank terminal, ticket vendors, vendor, auto gas dispenser, etc.

Sunson Profile:

Company Info 1 Company Info 2 Company Info 3 Company Info 4 Shipping Application Certification Exhibition

FAQ
Q1: Can you customize the metal keyboard or keypad?
A1: Yes, we can customize language & layout for you freely.
If you have big order need customized size, surface etc., tailor made service is also available.

Q2: How long is the warranty for your products?
A2: The standard warranty is 1 year from the date of delivery, but can extended if extra cost paid.

Q3: Can you provide free sample?
A3: We can provide you sample for approval, but there is a sample charge, which can be returned when your order qty reaches a certain number.

Q4: What is EPP?
A4: EPP is short of Encrypted PIN Pad, an Encrypting PIN Pad is an apparatus for encrypting an identifier such as a PIN entered on a keypad. These are used in Automated teller machines or self-service kiosk to ensure that the unencrypted PIN is not stored or transmitted anywhere in the rest of the system and thus cannot be revealed accidentally or through manipulations of the system.

Q5: What kind of support can you provide on software development?
A5: We can provide you complete SDK for you to development software, we also have a strong engineers and customer service team to provide you technical support.
