16-Key Encrypted PIN pad
  • 16-Key Encrypted PIN pad
  • 16-Key Encrypted PIN pad
  • 16-Key Encrypted PIN pad
  • 16-Key Encrypted PIN pad
  • 16-Key Encrypted PIN pad
  • 16-Key Encrypted PIN pad
16-Key Encrypted PIN pad
16-Key Encrypted PIN pad
16-Key Encrypted PIN pad
16-Key Encrypted PIN pad
16-Key Encrypted PIN pad
16-Key Encrypted PIN pad

16-Key Encrypted PIN pad

  • USD160
    10-99 Piece/Pieces
  • USD150
    ≥100 Piece/Pieces
Payment Type:
L/C, T/T, Money Gram, Western Union
Incoterm:
EXW
Min. Order:
10 Piece/Pieces
Min. Order:
10 Piece/Pieces
Delivery Time:
30 Days
Transportation:
Ocean, Air
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 5000/Month
Supply Ability: 5000/Month
Payment Type: L/C,T/T,Money Gram,Western Union
Incoterm: EXW
HS Code: 8471607100
Transportation: Ocean,Air
Product Description
Product Description

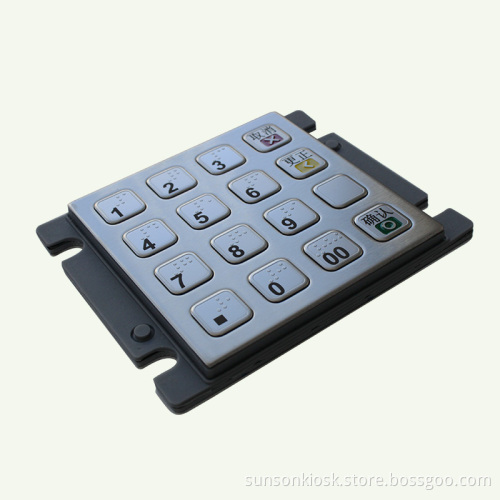

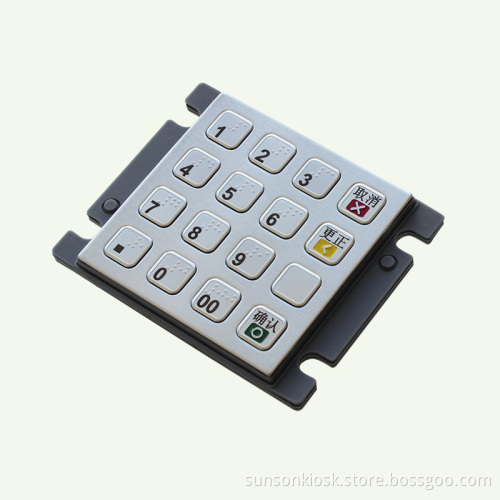

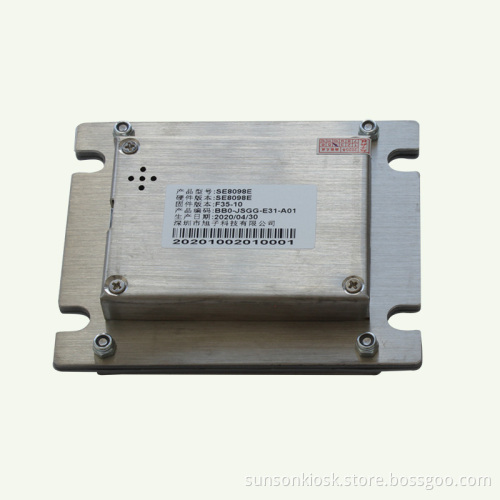

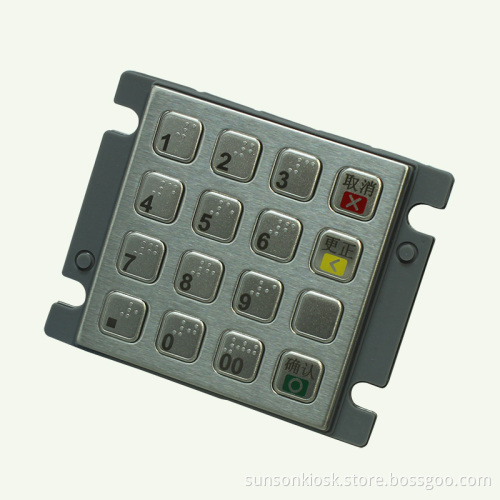

16-Key Encrypted PIN pad

This 16-Key Encrypted PIN pad for portable payment device is  PCI 4 approved Encrypting Pin Pad, with the most thin and compact outlook, it is suitable for portable payment devices well.


Features:
ØPCI 4.0 EPP
ØChina Union Pay Approved EPP
ØCompact design with thickness of 20.1mm only
ØSupport DES/TriDes, AES
ØSupport RSA and RKL
ØSupport DUKPT (on erquest)
ØEquipped with HW removal switch
ØOne click SDK for WOSA platform
ØFonts on button can be customized


ATM Pin Pad
Specifications:


ØOne of the most compact PCI EPP
ØPCI 4.0 and China Union Pay approved EPP
ØMaterial: Stainless steel
ØADA compliant with standard braille dots (optional)
ØKey Operation time:  more than 2 million times
Økey letter technology: Laser engrave
ØSupport DES/Tri-Des
ØSupport max 4096 bit RSA algorithm
ØSupport multi-class key system

Electronic features:
  Interface:mini USB
  mini USB to USB type A
  Voltage:    5.0V±10%
  Consumption:  ≤0.5W(dynamic)  ≤0.2W(static)
  Reliability:MTBF>20000H    MTTR<30min
  data protection:data will be kept for more than 8 years against power-off

Support Algorithm:
ØRSA: support more than 2048 bit
ØDES,3DES:ANSI X3.92,ANSI X9.52
ØPIN operation:ANSI X9.8(ISO9564.0,ISO9564.1,ISO9564.3),IBM3624
ØMAC operation:ANSI X9.9,ANSI X9.19
ØSecurity standard:ISO13491
Encrypting and decrypting speed:<0.1S(8 bits DES

Applications:
ØCash-ref terminals:such as ATM,ADM,CDM,CRS etc
ØUnattended Payment Terminals: such as UPT in gas station


ØSelf-service terminals: such as E-bank terminal, ticket vendors, vendor, auto gas dispenser, etc.


Sunson Profile

company info 1company info 2company info 3company info 4shipping & applicationcertification & exhibition

FAQ

Q1: Can you customize the metal keyboard or keypad?
A1: Yes, we can customize language & layout for you freely.
      If you have big order need customized size, surface etc., tailor made service is also available.


Q2: How long is the warranty for your products?
A2: The standard warranty is 1 year from the date of delivery, but can extended if extra cost paid.


Q3: Can you provide free sample?
A3: We can provide you sample for approval, but there is a sample charge, which can be returned when your order qty reaches a certain number.


Q4: How is your after sales service?
A4: Our well-trained engineers can provide you any technical support in time.
Our sales persons are also available at 24/7 on mobile phone, email etc.


Q5: Are you trading company or manufacturer?
A5: We are a manufacturer, with 17 years' experience in developing, designing and producing various metal keyboards & pin pads.
