USB HID kiosk keyboard with touch pad

I.             Introduction:

Metal keyboard, Model No: SPC330AM is a rugged keyboard integrated with trackball as cursor device, this is first fully brailled metal keyboard for information kiosk, which makes your machine easily meet the ADA. this is designed with 304 stainless steel for harsh environment. This keyboard has been widely used in the fields of interactive Kiosks, Self-service terminals, industrial console, etc. this Model is one of the very popular models for its stable performance!

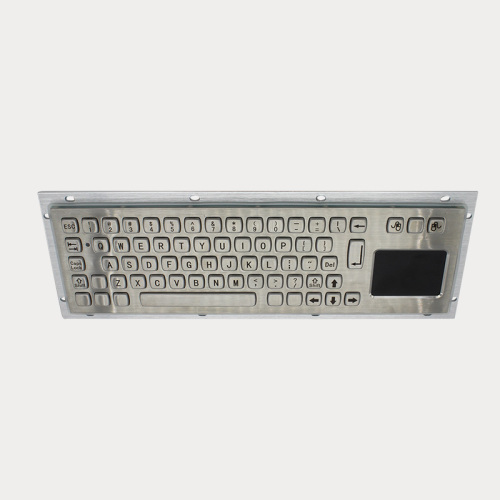

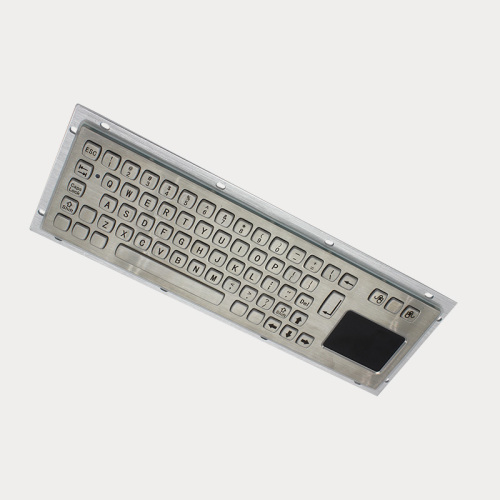

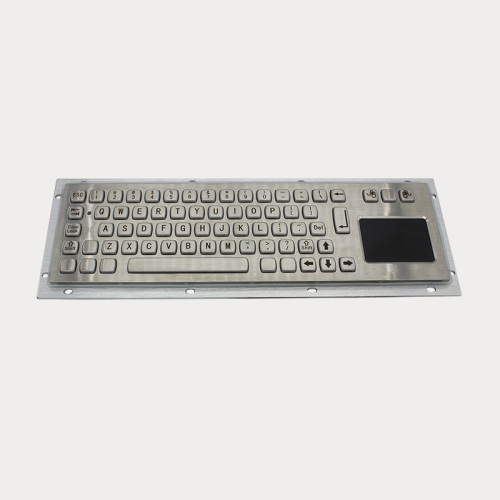

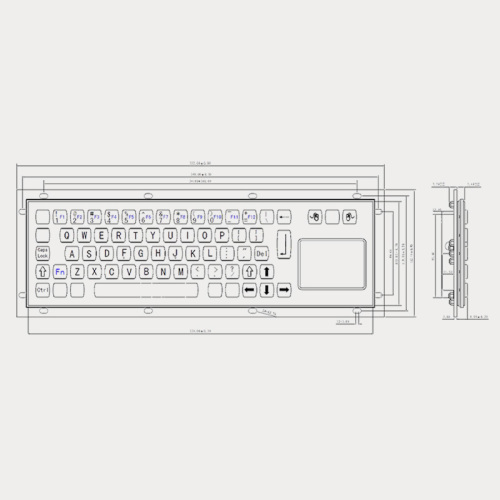

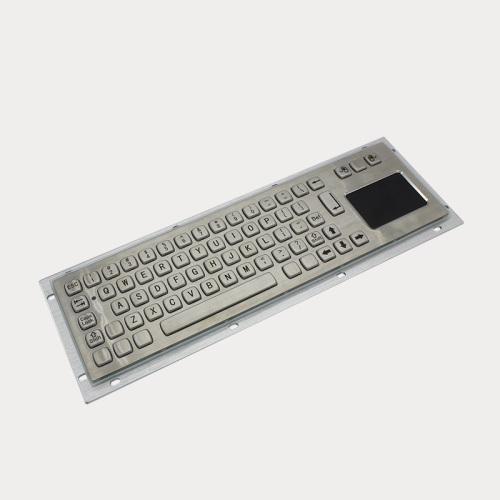

II.           Pictures and dimensions:

III.         Main Features

- Made of high-pure stainless steel materials

- Standard QWERTY layout. (Any language is available without additional charge)

- Integrated high sensitive touchpad

- single cable output

- Connection: USB HID device . default 3m USB cable

- Fn key combination to make the function of F1-F12 without increasing keys

IV.        Mechanical Characteristics:

- Qwerty keyboard, total keys: 65+3

- Size: 330(L)*100(W)*10.4(H)mm

- G. Weight: 1.2-1.3 kg

- Key life span: > 10,000,000 times

- Key pressure: 2-3N

- Key strike: medium travel (1.0-1.5mm)

- Protection level: IP65

- Key fonts: laser engraved

V.          Integrated Touchpad:

- X/Y resolution: 1000dpi (40point/mm)

- Working area: 62.5 × 46.5 (mm)

- output: same output with USB cable of keyboard

VI.        Electrical Characteristics:

- Power Supply: DC5V+10%

- Communication interface: USB

- Power consumption: <0.5W (dynamic), <0.2W(static)

- MTBF: >30,000H

- MTTR: <30 min

VII.      Environment:

- Operation temperature: -25℃~ +60℃

- Relative Operation humidity: 30% ~ 90% RH

- Storage temperature: -40℃~ +85℃

- Air pressure: 60 ~ 106 Kpa

- windows 10/8.1/7 /XP/Linux etc
