Pharmacy Self-screening Healthcare Station
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 500 Units per month |
| Supply Ability: | 1000units per month |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,EXW,CIF |
| Certificate: | ISO9001 |
| HS Code: | 84716040 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
Pharmacy Self-screening Healthcare Station
I. Brief Introduction
This product is strictly produced under MDSAP quality management system and already got ETL 60601 certification.

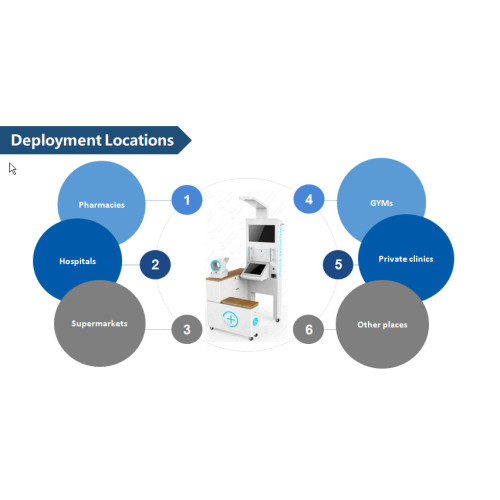

II. Application Scenarios
Hospital,Pharmacy,Private Clinic,Walmart,GYM and other public places.

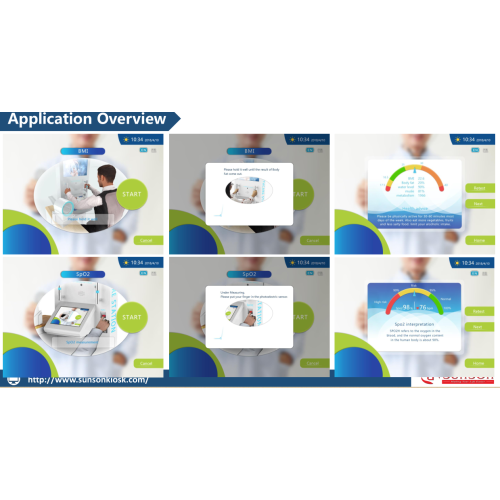

III. Product Images
IV. Technical Specifications:
Technical specs
Module Name
Specs
Industrial
PC
Motherboard:
W-MBT196, Processor J1900 (2M Cache,2 GHz); DDR3 4G RAM; 500GB HD; 2*RTL8111E
LAN/6*COM / 1*DDR3L SODIMM/1*MINIPCIE 3G/1*MINI-SATA/1*SATA_HDD
/1*VGA/1*HDMI/1*SIM/1*GPIO/1*LVDS/1*KB_MS2/7*USB,
17"
Touch Screen
Medical
Class touch monitor, Active
Area:378mm×303mm;Resolution:1280×1024@60Hz;Response Time(Typ.):5ms;Contrast
Ratio(Typ.):1000:1;Video Input:Analog RGB;Signal Input:H/V
Separate Sync. (TTL);Touch screen Type:17" IR touch sensor;Brightness(Typ.):225
cd/m2
21"
LCD Advertisement Screen
Medical
Class LCD monitor, Brightness: 350cd/m2; angle：horizontal 140°above, Vertical
125°above Contrast: 700:1; Backlight tube life：more than 40,000hoursOperating
temperature:-20-50ºCResponse Time:16ms;Dot pitch: 0.297;Max. resolution:
1024×768
Blood
Pressure Module
measure
the Adult blood pressure and Pulse frequency within range of (0mmHg -
300mmHg) and resolution 1mmHg, Tolerance +- 3mmHg
SPO2
uses
two frequencies of light (red and infrared) to determine the percentage (%)
of hemoglobin in the blood that is saturated with oxygen.
Body
Temprature
By
using an Infrared body temperature sensor to measure the body temp ranging
from 34 to 43 ºC
Height
Messurement
Detecting
Range By ultrasonic probe Imported from the US: 8cm-8m; Supply Voltage: 5V -
12V DC; Standby current:
Weight
measusrement
By
precise balance pressure sensor with a MAX weight of:200KG ; RS485 Port;Coin type digital transmitter
3in1
Bank Card Reader
EMV
certificated manual insert type magnetic / IC card reader, RFID, USB port
80mm
Thermal Printer
Thermal
printer; Automatic paper cutter; RS-232; Paper in width: 80mm; Speed:
150/second; Invoice print, with black mark sensor
Speakers,
Amplifier
one
Speaker; amplified output; Multimedia speaker
Accessories
Bamboo
Wooden Surface for Seat and Hand cuff Surface.
Movable
Seat (ADA compliant)
Movable
and adjustable blood pressure handcuff
Metal
Clothes Hanger
Integrated Net Card, SoundCard, Display Card With computer case and power
supply
<15mA; Transient current: about 250mA; Resolution: 1mm; Interface Mode:
PWM,UART, RS485; Ultrasonic Frequency: 50KHz; Detection Angle: 15 degrees
(-6dB); Working Mode: Single echo mode and multi echo mode; Working
Temperature: - 20°C to +75°C; PCB Size: Approx. 50 x 50mm;
V. Health Screening Kiosk Advantages:

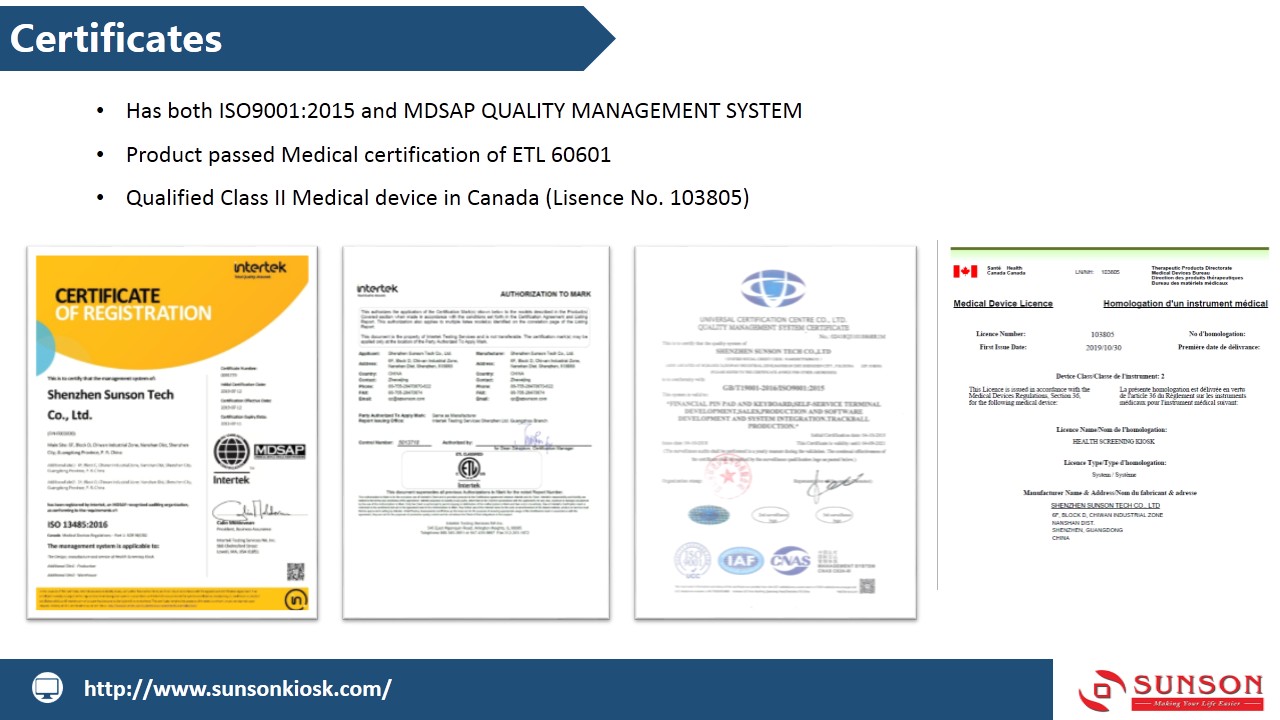

VI. Product Certificate
VII. Company Profile
SUNSON TECH. is one of the Leading Kiosk Manufacturer and Solutions provider based in Shenzhen, China.
We have more than 45 R&D Engineers to assure your satisfaction with a perfect solution that meets your business growth.
With more than 19-year's experience in Finance sector and advanced expertise knowledge, SUNSON has defined series of products, which come out with reliable performance, easy maintenance and outstanding quality.
SUNSON is moving quickly in overseas market to support our customers with more services and solutions in different regions. You can see SUNSON branded products & services in China, Canada, Kuwait, USA, Dominica, Egypt, United Arab Emirates, Saudi Arabia, Israel, Norway, Germany ,Spain, Australia, Romania, Colombia, India and Philippines etc.
SUNSON TEAM is engaging to offer trailored kiosk solution to reputy your own brand and enhence your business.
